Planar 998-2169-00 Digital Signage Display

Part Number: 998-2169-00
Model: Parts
Add to My Shopping List Add to Compare
$29,327.88

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Bezel Width
0.40"
Bezel Width (Bottom)
1.47"
Bezel Width (Top)
1.47"
Bezel Width (Left)
1.53"

Product Description:

  URX100-ERO-T, 100IN DIAGONAL, UHD, D-LED BACKLIGHT, 700 NIT BRIGHTNESS, HDR, MULTI-SOURCE VIEWING, SPEAKERS, OPS SLOT, LANDSCAPE AND PORTRAIT,ERO WITH GORILLA GLASS, 20 PT IR TOUCH. SINGLE TOUCHMARK KEY INCLUDED.
Explore all Planar Parts Accessories
Add to Quote
Planar 998-2169-00 Digital Signage Display
Planar 998-2169-00 Digital Signage Display
Planar 998-2169-00 Digital Signage Display
Planar 998-2169-00 Digital Signage Display
Planar 998-2169-00 Digital Signage Display
Planar 998-2169-00 Digital Signage Display
Planar 998-2169-00 Digital Signage Display Planar 998-2169-00 Digital Signage Display Planar 998-2169-00 Digital Signage Display Planar 998-2169-00 Digital Signage Display Planar 998-2169-00 Digital Signage Display Planar 998-2169-00 Digital Signage Display

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 998-2169-00 Digital Signage Display Overview

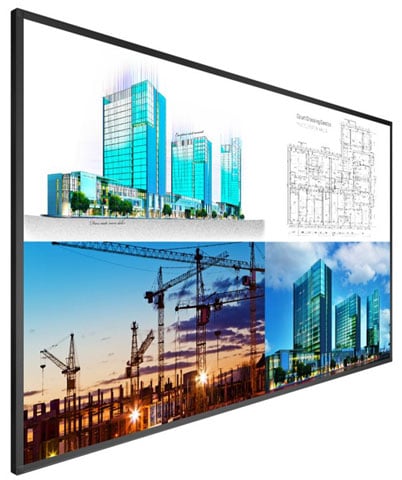

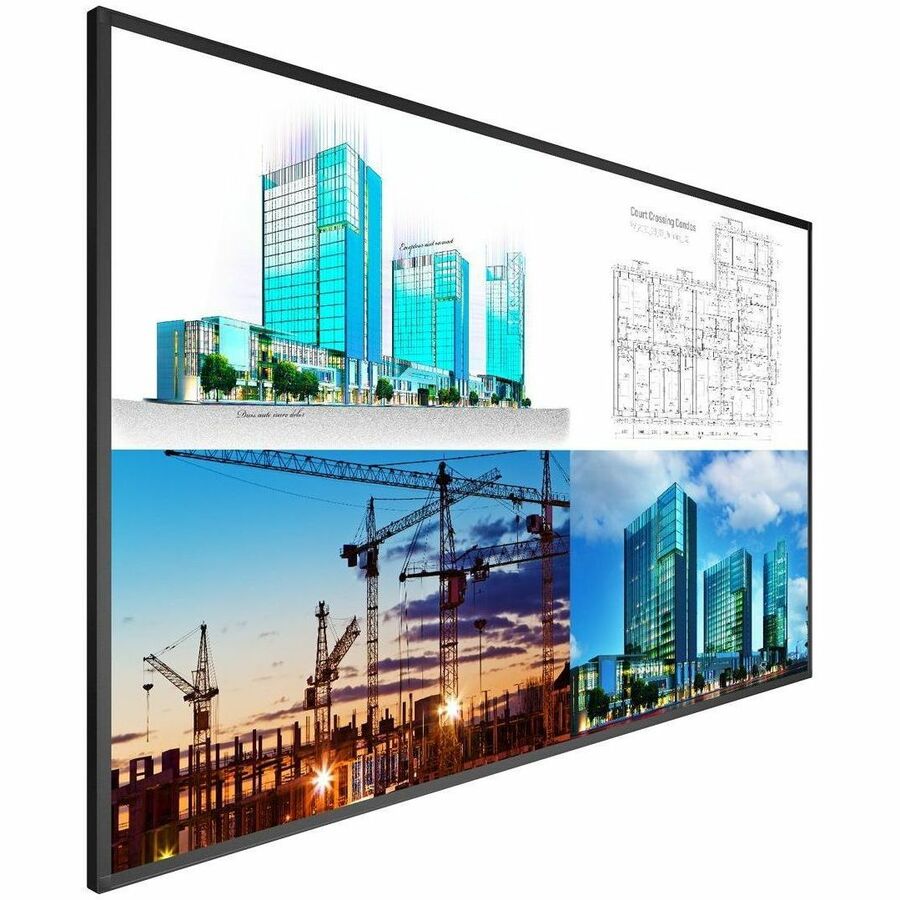

The Planar® UltraRes™ X URX100-ERO-T is a TAA Compliant, 4K, HDR, professional 100" LCD touch display with on-board processing for viewing up to four content sources simultaneously. It offers an OPS slot for additional connectivity, and a redundant power supply. With the optional Planar® Profile™ Mounting System it can achieve ADA compliance. It also features Planar® ERO-LCD™ protection technology for use in high-traffic and public environments. It offers high brightness, superior color performance with exceptional 4K clarity and multi-point touch for applications ranging from interactive meeting spaces to high impact touch-based digital signage.

Technical Information
Bezel Width:
0.40"
Bezel Width (Bottom):
1.47"
Bezel Width (Top):
1.47"
Bezel Width (Left):
1.53"
Bezel Width (Right):
1.53"
Operation Hours:
24 Hours/7 Days
Display & Graphics
Number of Screens:
1
Viewable Screen Size:
100"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
32
Display Resolution:
3840 x 2160
High Dynamic Range (HDR):
Yes
High Dynamic Range (HDR) Type:
HDR10
Response Time:
6.50 ms
Pixel Pitch:
22.6 mil
Aspect Ratio:
16:9
Backlight Technology:
Direct LED
Orientation:
Landscape/Portrait
Maximum LED Life:
5.7 Year
Video
Scan Format:
2160p
Native Contrast Ratio:
3,000:1
Color Depth:
10-bit
Brightness:
630 Nit
Color Gamut:
98% NTSC
Network & Communication
Ethernet:
Yes
Wireless LAN:
No
Interfaces/Ports
USB:
Yes
DVI:
No
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of DisplayPorts:
1
Number of Audio Line Out:
1
Number of HDMI 2.0 Ports:
2
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Physical Characteristics
Color Family:
Black
Product Color:
Black
Mount Type:
Wall Mountable
Height:
51.7"
Width:
89.8"
Depth:
4"
Weight (Approximate):
370 lb
Height with Stand:
51.70"
Width with Stand:
89.80"
Depth with Stand:
4.07"
Housing Material:
Metal
Miscellaneous
Package Contents:
  • UltraRes URX100-ERO-T Digital Signage Display
  • US power cord
  • HDMI cable
  • USB (A to B) cable
  • IR sensor
  • Remote control
  • 2 x lifting straps
  • TouchMark license key (one time download)
  • QuickStart Guide
Application/Usage:
  • Indoor
  • Public Space
  • High Traffic Area
  • Commercial
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689008156
UPC: 810689008156
EAN: 0810689008156
UNSPSC: 43211902
