Bezel Width:
0.10"
Planar 998-2159-00 Digital Signage Display
Part Number:
998-2159-00
Model:
Parts
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 998-2159-00 Digital Signage Display Overview

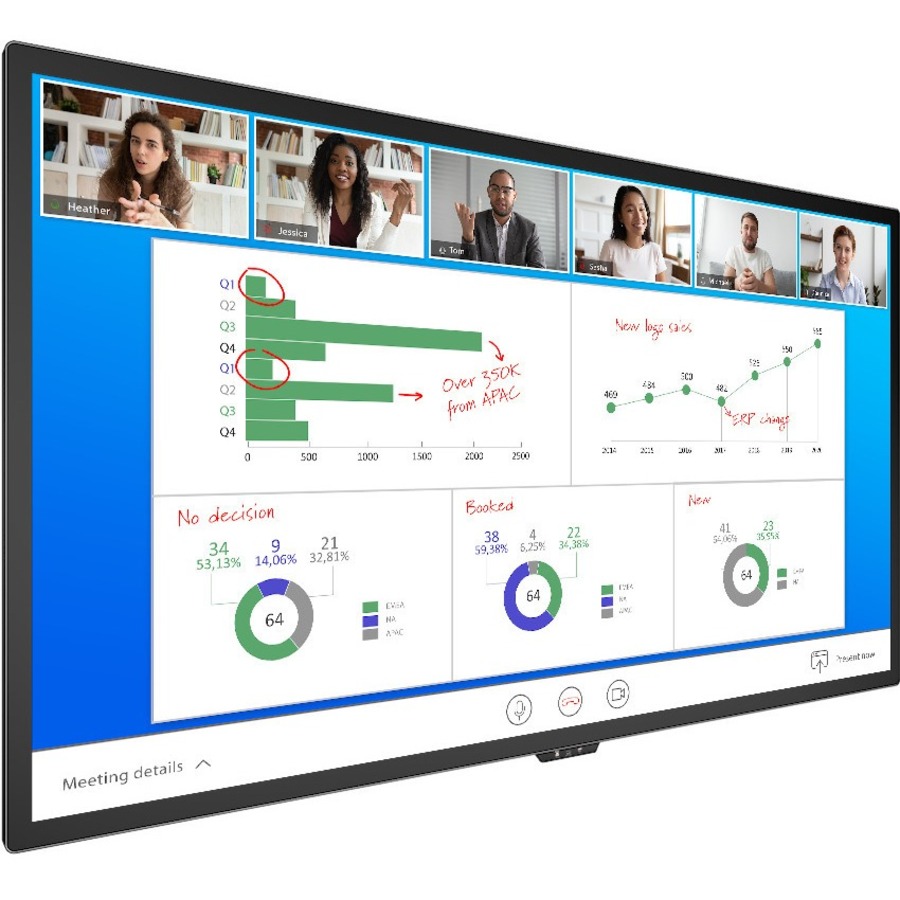

The Planar HB86 is an 86" huddle board display with 4K resolution and pinpoint-accurate, 20-point Projected Capacitive touch, designed for in-room and remote collaboration. It features an embedded Android® operating system with a digital whiteboard and is pre-loaded and collaboration applications. The display also has wireless connectivity and an OPS slot to support external devices such as a Window 10 PC. The display's passive and active stylus pens help ensure efficiency.
The Planar HB86 huddle board is compliant with United States Trade Agreements Act (TAA) regulations
The Planar HB86 huddle board is compliant with United States Trade Agreements Act (TAA) regulations
Technical Information
Processor & Chipset
Processor Type:
Cortex A73
2nd Processor Type:
Cortex A53
Memory
Standard Memory:
3 GB
Memory Technology:
DDR4 SDRAM
Display & Graphics
Number of Screens:
1
Viewable Screen Size:
86"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
20
Display Resolution:
3840 x 2160
Pixel Pitch:
19.4 mil
Backlight Technology:
Direct View LED
Graphics Controller Model:
Mali-G51
Video
Color Depth:
10-bit
Brightness:
350 Nit
Color Gamut:
72% NTSC
Network & Communication
Ethernet:
Yes
Wireless LAN:
Yes
Bluetooth:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Software
Operating System:
Android 8.0
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Weight (Approximate):
139 lb
Miscellaneous
TAA Compliant:
Yes
Item Numbers
GTIN:
0810689008064
UPC:
810689008064
EAN:
0810689008064
UNSPSC:
43211902
The Planar 998-2159-00 Digital Signage Display is also known as
998-2159-00
