Planar 998-0869-00 Monitor

Part Number: 998-0869-00
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$19,867.43

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Bezel Width (Bottom)
39.4 mil
Bezel Width (Top)
39.4 mil
Bezel Width (Left)
51.2 mil
Bezel Width (Right)
51.2 mil

Product Description:

  100 IN DIAGINAL, UHD, WIDE COLOR GAMUT PANEL, LED BACKLIGHT, 24X7, METAL BEZEL, LANDSCAPE AND PORTRAIT, WIDE ARRAY OF INPUTS, OPS SLOT, 700 NIT, SPEAKERS, RS232 AND LAN CONTROL
Explore all Planar Parts Accessories
Add to Quote
Planar 998-0869-00 Monitor
Planar 998-0869-00 Monitor
Planar 998-0869-00 Monitor
Planar 998-0869-00 Monitor
Planar 998-0869-00 Monitor Planar 998-0869-00 Monitor Planar 998-0869-00 Monitor Planar 998-0869-00 Monitor

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 998-0869-00 Monitor Overview

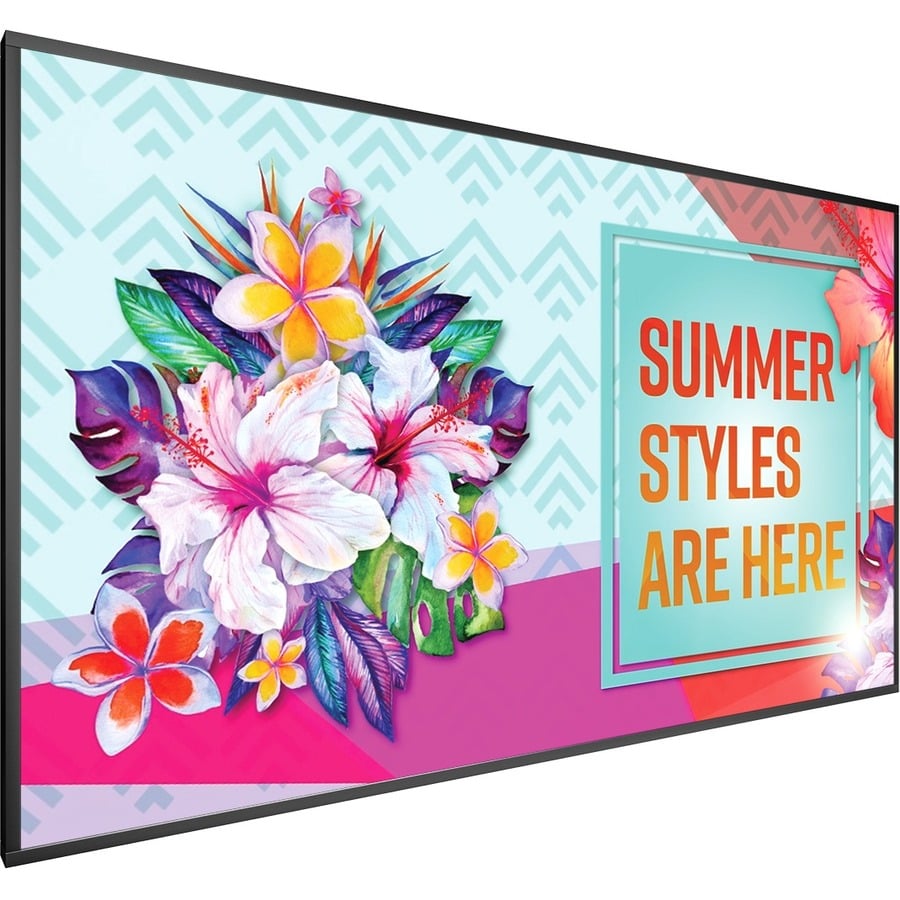

The Planar® EPX Series is a 100" 4K LCD display with Ultra HD resolution (3840 x 2160), high brightness of 700 nits and a wide color gamut for stunning image quality and deeper, richer color reproduction. Designed with commercial-grade features, the Planar EPX Series meets the demanding requirements of retail and corporate digital signage applications.

Also available in touch, the Planar EPX100-T brings interactivity to the 4K immersive experience.

Optimized for Digital Signage

  • 4K resolution for life-like picture quality
  • High brightness of 700 nits for high impact messaging in high ambient lighting environments
  • Wide color gamut for deeper, richer color reproduction
  • OPS (Open Pluggable Specification) slot enables seamless integration of compatible digital signage hardware
  • Logo-free bezel

High Performance

  • 4K@60Hz DisplayPort and HDMI connectivity including HDCP 2.2
  • Upscaling of Full HD or sub-1080p content to fill the entire 4K display area
  • 24x7 operation and reliability to support extended use
  • Durable, all metal enclosure
  • Fanless for whisper-quiet operation

Configuration Flexibility

  • Mountable in either portrait or landscape orientation
  • VESA mount compatibility
  • Simultaneous multi-source viewing of 2 or 4 sources at one time
Technical Information
Bezel Width (Bottom):
39.4 mil
Bezel Width (Top):
39.4 mil
Bezel Width (Left):
51.2 mil
Bezel Width (Right):
51.2 mil
Display & Graphics
Screen Size:
100"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Pixel Pitch:
22.6 mil
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Color Depth:
10-bit
Brightness:
700 Nit
Color Gamut:
98% NTSC
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
Serial:
Yes
Number of USB 2.0 Ports:
2
Number of USB 3.0 Ports:
1
Number of DisplayPorts:
2
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Product Color:
Black
Height:
50.7"
Width:
89.3"
Depth:
4.5"
Weight (Approximate):
260 lb
Miscellaneous
Package Contents:
  • EPX100 4K LCD Display
  • Power cord
  • HDMI cable
  • IR cable
  • Remote control
  • Cable clamps
Certifications & Standards:
  • cTUVus
    • Environmentally Friendly:
    Yes
    TAA Compliant:
    Yes
    Warranty
    Limited Warranty:
    3 Year
    Item Numbers
    UNSPSC: 43211902
