Bezel Width:
0.60"
Planar 998-0355-01 Digital Signage Display
Part Number:
998-0355-01
Model:
Parts
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 998-0355-01 Digital Signage Display Overview

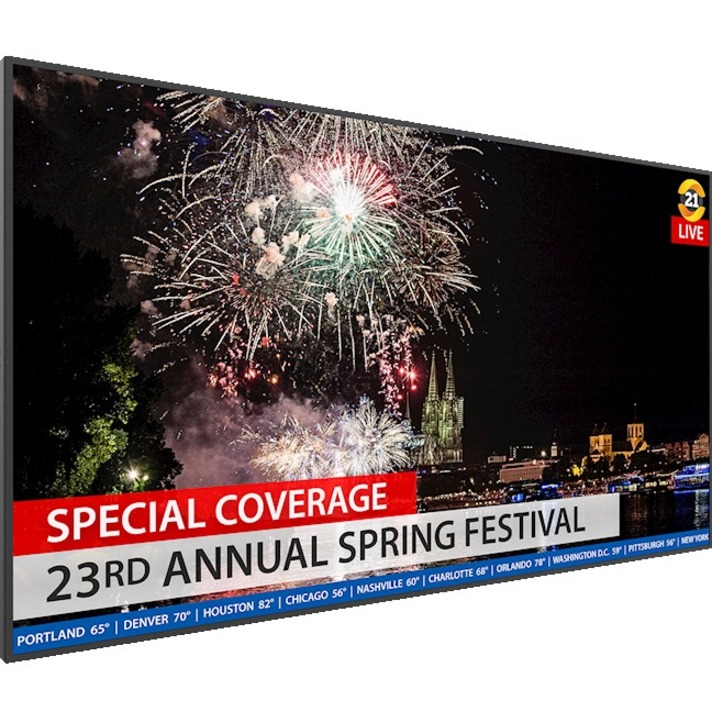

The Planar Simplicity Series SL8664K is a 86" 4K LCD display for digital signage that incorporates media playback, 4K @ 60 Hz support, HDCP2.2 complianceand commercial functionality into an affordable 86" digital signage solution. Its elegant design with a narrow, logo-free bezel, slim profile and integrated OPS slot provide the ideal display solution for digital signage applications in retail stores, restaurants, medical offices, corporate meeting areas and hospitality.
Technical Information
Display & Graphics
Number of Screens:
1
Screen Size:
86"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Pixel Pitch:
19.4 mil
Backlight Technology:
Edge LED
Video
Scan Format:
2160p
Dynamic Contrast Ratio:
15,000:1
Color Depth:
10-bit
Brightness:
410 Nit
Color Gamut:
72% NTSC
Network & Communication
Ethernet:
Yes
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Number of DisplayPorts:
1
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
VESA Mount Standard:
600 x 400
Height:
43.3"
Width:
75.9"
Depth:
3.4"
Weight (Approximate):
141 lb
Miscellaneous
Package Contents:
- SL8664K 4K LCD Display
- C14 connector power cord
- HDMI cable
- RS-232 cable
- IR cable
- Remote control
- Cable clamps
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN:
0810689008408
UPC:
810689008408
EAN:
0810689008408
UNSPSC:
43211902
