Features:
- Landscape/Portrait Viewable
- Gorilla Glass
- Progressive Scan
- Video Wall
Planar 997-8245-00 Digital Signage Display
Part Number:
997-8245-00
Model:
Parts
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 997-8245-00 Digital Signage Display Overview

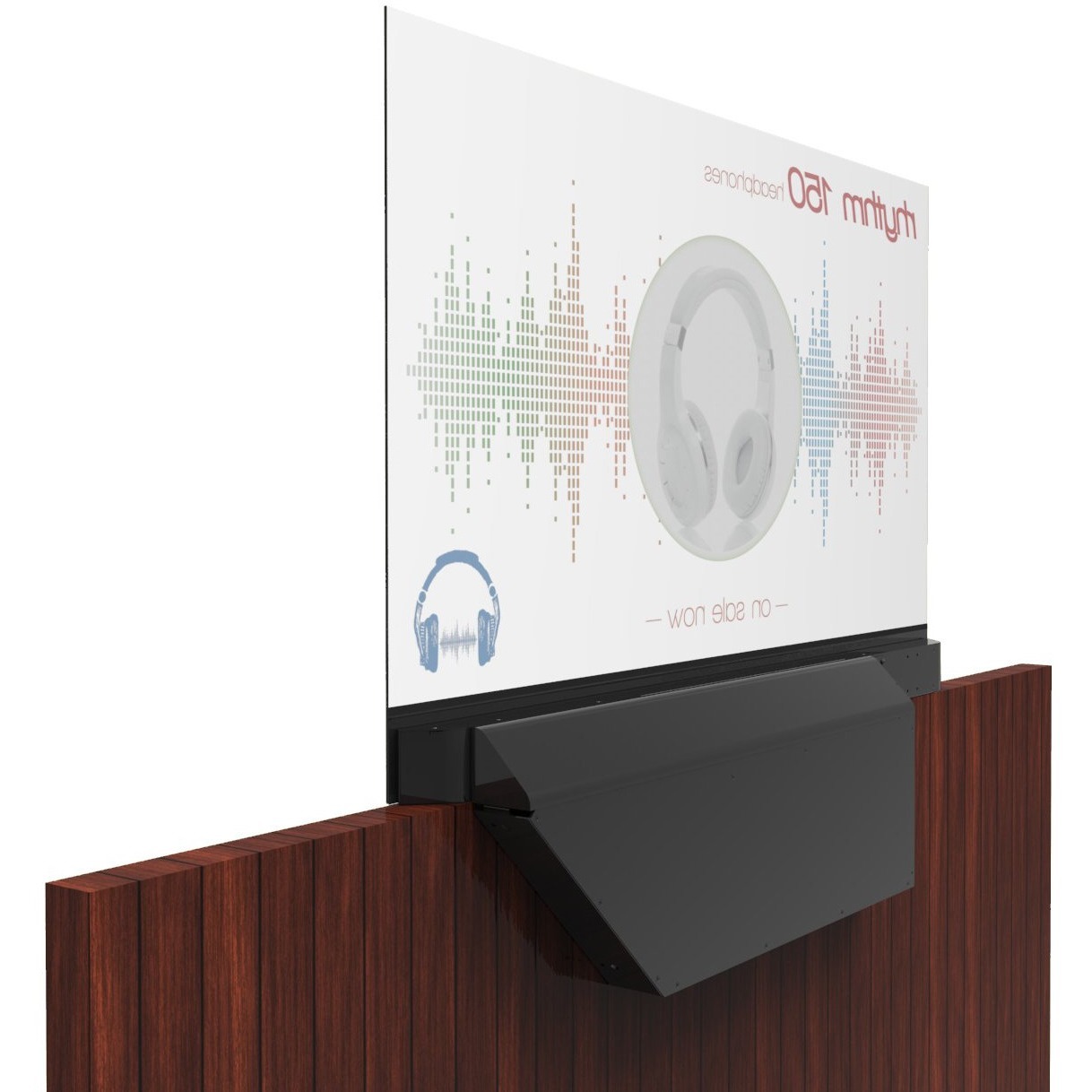

The Planar® LookThru™ OLED display (LO55-S-T) is a 55-inch touch-screen transparent display that showcases interactive information on a transparent surface glass without the need for a backlight or enclosure. The Planar LO55-S-T features a straight- mount design that allows the display to be built into custom fixtures. The Planar LO55-S-T offers 32 touch points and utilizes Planar® ERO™ (Extended Ruggedness and Optics) using Corning® Gorilla Glass® for enhanced durability and optics.
Technical Information
Display & Graphics
Screen Size:
55"
Display Screen Type:
AMOLED
Touchscreen:
Yes
Touchscreen Technology:
Infrared (IrDA)
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Frame Refresh Rate:
120 Hz
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
HDMI:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
180 W
Physical Characteristics
VESA Mount Compatible:
No
Height:
31.5"
Width:
48.1"
Depth:
11.7"
Weight (Approximate):
63.50 lb
Miscellaneous
Certifications & Standards:
- NRTL Listed
- FCC-Class A
- CE Class A
- RCM
- PSE
- EN60950
- CISPER22/2010
- TAA
Energy Star:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0810689003076
UPC:
810689003076
EAN:
0810689003076
UNSPSC:
43211902
The Planar 997-8245-00 Digital Signage Display is also known as
997-8245-00
