Full specifications (PDF)
Features:
- Video Wall
- Ambient Light Sensor
- Progressive Scan
Planar 997-8181-00 Digital Signage Display
Part Number:
997-8181-00
Model:
Clarity Matrix LX

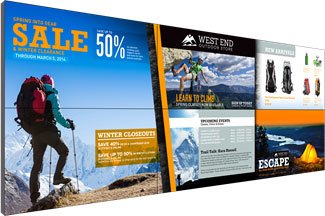

Planar Clarity Matrix LX Digital Signage Display Model Overview
The Planar Clarity Matrix™ LCD Video Wall System with G2 Architecture delivers superior visual performance and mission-critical reliability for a diverse range of applications. Designed for 24/7 operation, its unique architecture minimizes installation depth while ensuring stunning visual quality with the industry's thinnest bezels at just 3.7mm. With features like the Planar® EasyAxis™ Mounting System and off-board electronics, it offers an effortless installation and maintenance experience, making it ideal for environments requiring exceptional display accuracy and durability.
Key features:
Specifications:
Key features:
- Thin Bezels: Tiled bezel width as small as 3.7mm for seamless visuals.
- Mission-Critical Design: Redundant power supplies ensure uninterrupted operation.
- Flexible Mounting: Planar EasyAxis™ Mounting System for quick and precise alignment.
- High Brightness Levels: Options available up to 800 nits.
- MultiTouch Capabilities: Optional touch kit with up to 32 simultaneous touch points.
Specifications:
- Diagonal Sizes: 46" and 55"
- Brightness: 450 nits (LX models), 500 nits (MX models), up to 800 nits for certain models
- Contrast Ratio: 3500:1
- Operating Temperature: 5-40°C
- Operating Humidity: 20-90% RH non-condensing
- Resolution: 1920 x 1080 (Full HD)
- Mounting Depth: 3.6" (93mm)
- Power Consumption: Typical - 143-205 watts
Planar 997-8181-00 Digital Signage Display Overview
LCD Video Walls for Ambient Light-Controlled Applications
Clarity® Matrix™ LX LCD Video Walls feature Full HD resolution and LED backlighting for outstanding tiled visual performance. Available in 46" and 55" sizes, Clarity Matrix LX models feature standard brightness of 500 nits for environments with controlled ambient lighting.
Clarity® Matrix™ LX LCD Video Walls feature Full HD resolution and LED backlighting for outstanding tiled visual performance. Available in 46" and 55" sizes, Clarity Matrix LX models feature standard brightness of 500 nits for environments with controlled ambient lighting.
Technical Information
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Aspect Ratio:
16:9
Backlight Technology:
LED
Video
Scan Format:
1080p
Brightness:
500 Nit
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
43211902
