Full specifications (PDF)
Features:
- Video Wall
- Progressive Scan
- Ambient Light Sensor

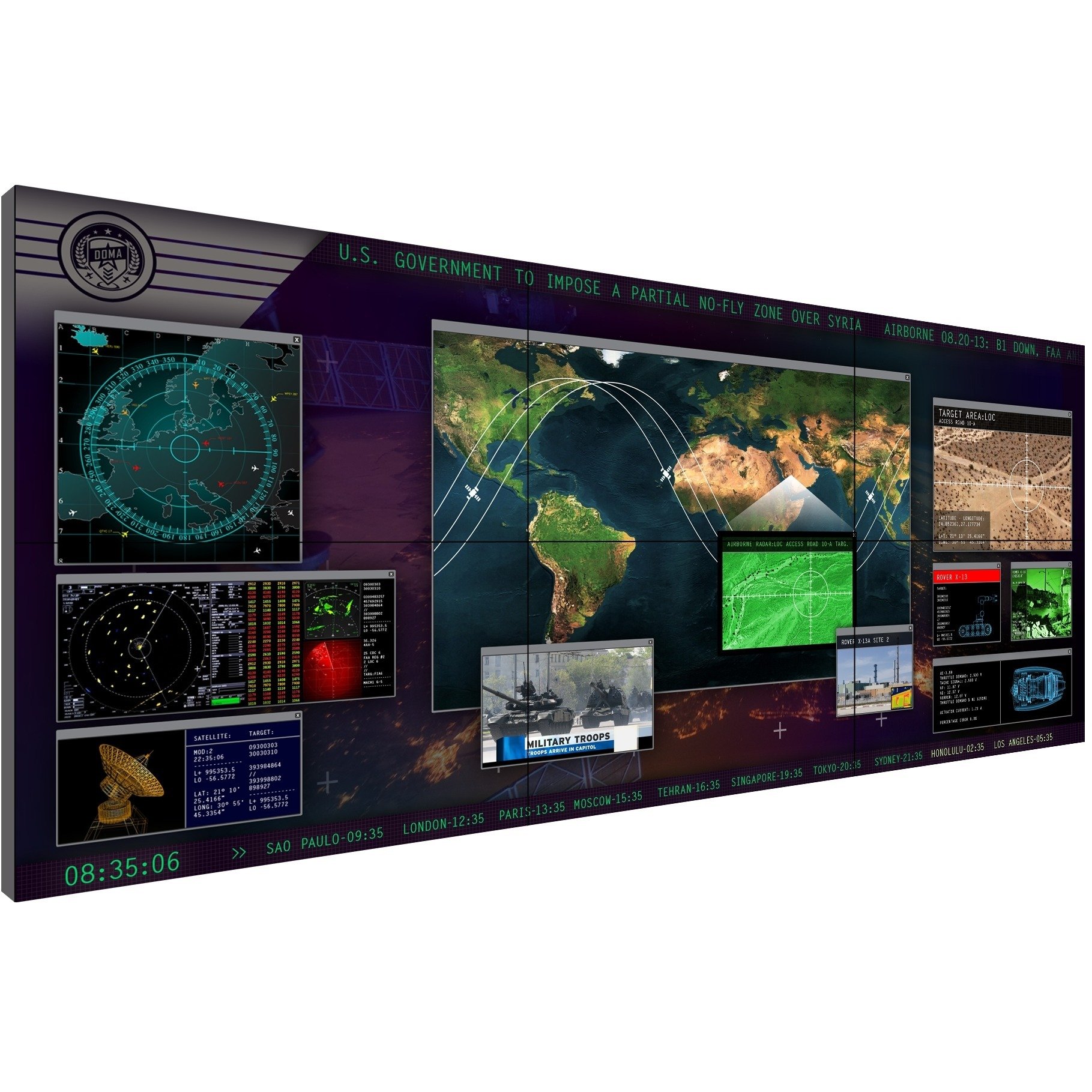

Planar 997-8137-00 Digital Signage Display
Part Number:
997-8137-00
Model:
Clarity Matrix MX
Planar Clarity Matrix MX Digital Signage Display Model Overview
The Clarity Matrix LCD Video Wall System with G2 Architecture is designed to deliver unparalleled visual performance and operational reliability for mission-critical applications. This advanced video wall solution features the industry’s thinnest bezel, ensuring a sleek design that minimizes installation space while maximizing flexibility. With an innovative EasyAxis Mounting System for effortless alignment and a robust rack-mounted electronics architecture, the Clarity Matrix simplifies set-up and maintenance, significantly reducing the total cost of ownership and enhancing overall display reliability.
Key features:
Specifications:
Key features:
- Thinnest bezel width: As small as 3.7 mm
- Integrated EasyAxis Mounting System: Ensures perfect alignment and easy service access
- Flexible windowing capability: Allows simultaneous content display
- High brightness options: Available brightness levels of 450 nits and 800 nits
- Ultra High Definition: Supports 4K resolution across multiple displays
- Redundant power supplies: Enhances reliability with uninterrupted operation
Specifications:
- Diagonal Sizes: 46" and 55"
- Brightness: Optimal levels of 450 nits to 800 nits
- Contrast Ratio: 3500:1 to 4500:1
- Resolution: Up to 1920 x 1080
- Operating Temperature: 5-40°C
- Power Consumption: Typical 143-205 watts
- Installation Depth: As thin as 3.6" (93mm)
- Weight: 42 lbs (19 kg) to 74 lbs (33.6 kg) depending on model
Planar 997-8137-00 Digital Signage Display Overview
For government and military customers delivering highly sensitive information, the Clarity® Matrix™ Fiber Video Extension option provides a more secure and longer distance option for extending the video signal from the Clarity Matrix off-board electronics to Clarity Matrix LCD video wall displays. The Clarity Matrix Fiber Video Extension provides integrated video extension over standard multi-mode or singlemode fiber optic cable. The Clarity Matrix Fiber Video Extension also incorporates an embedded USB extension in the fiber optic cable, eliminating the need for a third-party USB extender.
Technical Information
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
3,500:1
Brightness:
800 Nit
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
175 W
Physical Characteristics
VESA Mount Compatible:
Yes
Height:
22.7"
Width:
40.2"
Depth:
3.6"
Weight (Approximate):
42 lb
Miscellaneous
Certifications & Standards:
- EN60950
- FCC Class A
- CISPR22/85
- CE
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0810689002710
UPC:
810689002710
EAN:
0810689002710
UNSPSC:
43211902
