Planar 997-8086-00 Digital Signage Display

The Planar 997-8086-00 Digital Signage Display has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

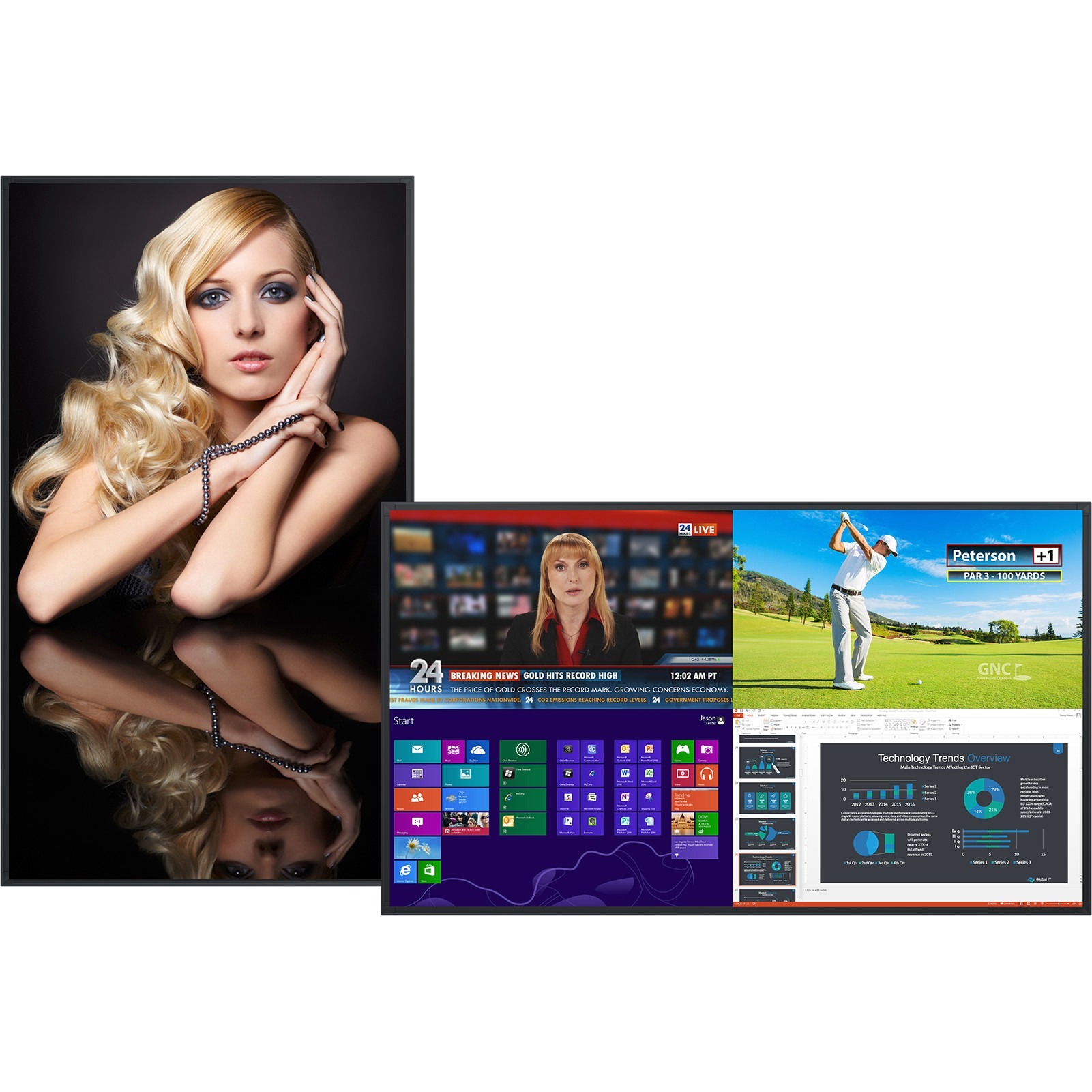

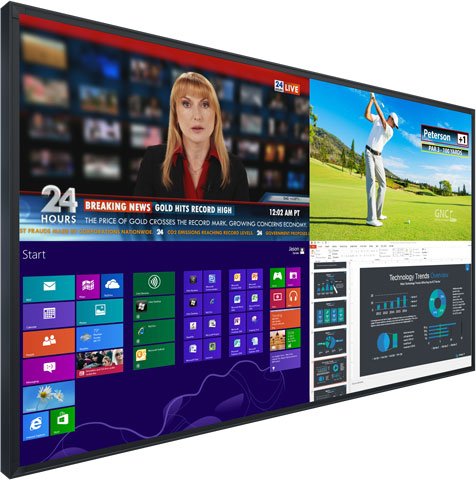

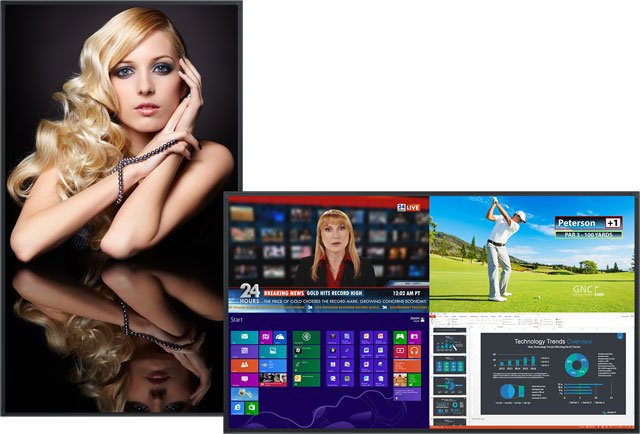

Planar UltraRes Series - Planar UltraRes UR7551 Touch Interactive 4K LCD Display - 75" LCD - Touchscreen - 3840 x 2160 - LED - 450 Nit - 2160p - HDMI - USB - SerialEthernet

Digital Signage Display offers a reliable, convenient video signage solution
Experience luminescent visual images with LCD display
Features a 4k Ultra HD 3840 x 2160 resolution
2160p 4K UHD - Regardless of wherever or whenever the content is watched and no matter how detailed it is, this signage system is made to impress its viewers
LED backlight technology provides for industry-leading low power consumption and less hazardous materials
With its 75" screen size and 450 Nit brightness, this digital signage system is perfect for displaying high-impact information in hotels, eateries, and other businesses

Need a different version? See all Planar UltraRes Series Digital Signage Displays

Discontinued Need Assistance?

Add to Quote

Planar 997-8086-00 Digital Signage Display

Overview

Full specifications (PDF)

Planar UltraRes Series Digital Signage Display Model Overview

The Planar UltraRes Series is a line of 75", 84" and 98" Ultra HD resolution (3840 x 2160) professional LCD displays with best-in-class image and color quality for native 4K and upscaled content. Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.

Planar 997-8086-00 Digital Signage Display Overview

The Planar® UltraRes™ UR7551 Touch combines a multi-touch experience with stunning 4K image clarity. With 32 simultaneous touch points, the Planar UltraRes UR7551 Touch makes it easy for multiple users to collaborate and interact at the same time. The Planar UltraRes Touch is a fully integrated solution, delivering an elegant design and more accurate multi-touch experience. Planar UltraRes UR7551 Touch combines Planar® ERO™ (Extended Ruggedness and Optics™) technology with Corning® Gorilla® Glass, creating a highly durable 4K display.

Detailed Specs

Full specifications (PDF)

Technical Information

Features:

4K UHD
Progressive Scan
Picture in Picture
Landscape Capable
Schedule
Gorilla Glass
Open Pluggable Specification (OPS)

Display & Graphics

Screen Size:

75"

Display Screen Type:

LCD

Touchscreen:

Yes

Touchscreen Technology:

Infrared (IrDA)

Multi-touch Screen:

Yes

Display Resolution:

3840 x 2160

Response Time:

6 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

LED

HDCP Supported:

Yes

Audio

Number of Speakers:

Speakers:

Yes

RMS Output Power:

20 W

Video

Scan Format:

2160p

Standard Refresh Rate:

60 Hz

Frame Refresh Rate:

120 Hz

Native Contrast Ratio:

5,000:1

Brightness:

450 Nit

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Ethernet

Interfaces/Ports

USB:

Yes

USB Standard:

USB 2.0
USB 3.0

HDMI:

Yes

DisplayPort:

Yes

Network (RJ-45):

Yes

Audio Line Out:

Yes

Serial:

Yes

Power Description

Input Voltage:

120 V AC
230 V AC

Power Consumption:

270 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

400 x 400

Height:

39.2"

Width:

67.7"

Depth:

4.1"

Weight (Approximate):

205 lb

Miscellaneous

Certifications & Standards:

FCC Class A
CE
TAA

cTUVus

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0810689002543

UPC: 810689002543

EAN: 0810689002543

UNSPSC: 43211902
