Planar Clarity Matrix MX Digital Signage Display Model Overview

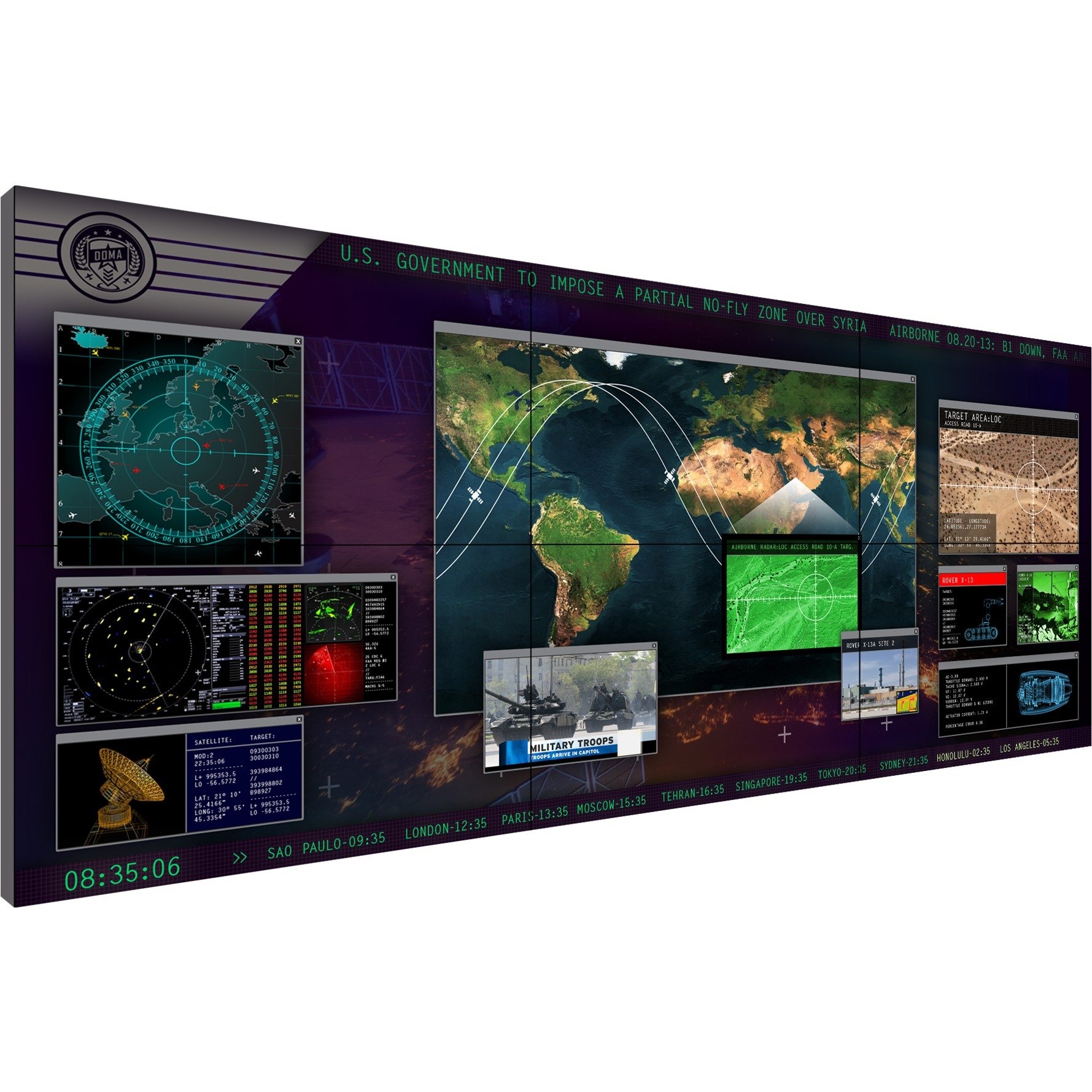

Clarity Matrix MX LCD video walls provide outstanding tiled visual performance, support extended operation, and require minimal installation space. Designed for 24x7 operation, Clarity Matrix MX models feature 800 nits brightness, LED backlight technology, and Full HD resolution making them the ideal video walls for high-impact, mission-critical applications.
Planar 997-7797-00 Digital Signage Display Overview
The Clarity™ Matrix MultiTouch Video Wall is an ultra-slim profile touch screen video wall ideal for public spaces or collaboration environments. Utilizing a touch kit, Clarity Matrix MX46HDU-L-ERO can be transformed into a Clarity Matrix MultiTouch Video Wall featuring up to 32 touch points and allows multiple users to simultaneously interact with the video wall without affecting other users. Clarity Matrix MultiTouch with Planar's ERO™ technology (Extended Ruggedness and Optics) provides a continuous touch surface while increasing durability and optical performance. Clarity Matrix MX46HDU-L-ERO features a tiled bezel width of 3.7mm and 800 nits brightness.
Technical Information
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Video
Scan Format:
1080p
Native Contrast Ratio:
3,500:1
Brightness:
800 Nit
Interfaces/Ports
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
170 W
Physical Characteristics
Height:
22.8"
Width:
40.3"
Depth:
3.7"
Weight (Approximate):
58 lb
Miscellaneous
Certifications & Standards:
- EN60950
- FCC Class A
- CISPR22/85
- CE
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Item Numbers
UNSPSC:
43211902
