Planar 997-7782-01 Digital Signage Display

Part Number: 997-7782-01
Model: Clarity Matrix LX
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size
55"
Display Screen Type
LCD
Display Resolution
1920 x 1080
Backlight Technology
Direct LED

Product Description:

  Planar Clarity Matrix LX55HDU-L Digital Signage Display - 55" LCD - 1920 x 1080 - Direct LED - 500 Nit - 1080p - HDMI - Serial
Explore all Planar Clarity Matrix LX Digital Signage Displays
Add to Quote
Planar 997-7782-01 Digital Signage Display
Planar 997-7782-01 Digital Signage Display
Planar 997-7782-01 Digital Signage Display Planar 997-7782-01 Digital Signage Display
Full specifications (PDF)

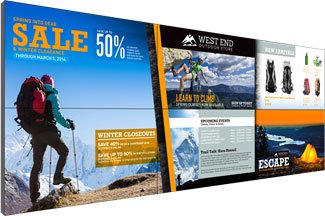

Planar Clarity Matrix LX Digital Signage Display Model Overview

The Planar Clarity Matrix™ LCD Video Wall System with G2 Architecture delivers superior visual performance and mission-critical reliability for a diverse range of applications. Designed for 24/7 operation, its unique architecture minimizes installation depth while ensuring stunning visual quality with the industry's thinnest bezels at just 3.7mm. With features like the Planar® EasyAxis™ Mounting System and off-board electronics, it offers an effortless installation and maintenance experience, making it ideal for environments requiring exceptional display accuracy and durability.
Key features:
  • Thin Bezels: Tiled bezel width as small as 3.7mm for seamless visuals.
  • Mission-Critical Design: Redundant power supplies ensure uninterrupted operation.
  • Flexible Mounting: Planar EasyAxis™ Mounting System for quick and precise alignment.
  • High Brightness Levels: Options available up to 800 nits.
  • MultiTouch Capabilities: Optional touch kit with up to 32 simultaneous touch points.

Specifications:
  • Diagonal Sizes: 46" and 55"
  • Brightness: 450 nits (LX models), 500 nits (MX models), up to 800 nits for certain models
  • Contrast Ratio: 3500:1
  • Operating Temperature: 5-40°C
  • Operating Humidity: 20-90% RH non-condensing
  • Resolution: 1920 x 1080 (Full HD)
  • Mounting Depth: 3.6" (93mm)
  • Power Consumption: Typical - 143-205 watts
Planar 997-7782-01 Digital Signage Display Overview
The 55" Clarity® Matrix® LX55HDU-L features Full HD resolution, LED backlighting, and a mere 3.7mm bezel gap for outstanding tiled visual performance. This model features standard brightness of 500 nits for environments with controlled ambient lighting. Featuring the Planar® EasyAxis™ Mounting System, Clarity Matrix LX55HDU-L has an ultra-thin installed depth of 3.6"/93mm, 6-axis adjustment cams for perfect panel-to-panel alignment, and front-service mode.
Full specifications (PDF)
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Backlight Technology:
Direct LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
3,500:1
Brightness:
500 Nit
Interfaces/Ports
HDMI:
Yes
Serial:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Physical Characteristics
Height:
26.9"
Width:
47.8"
Depth:
3.6"
Weight (Approximate):
59 lb
Miscellaneous
Package Contents:
  • Clarity Matrix LX55HDU-L Digital Signage Display
  • IR Remote Control
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0810689002024
UPC: 810689002024
EAN: 0810689002024
UNSPSC: 43211902
