Full specifications (PDF)
Features:
Video Wall
Planar 997-7699-00 Digital Signage Display
Part Number:
997-7699-00
Model:
UltraRes Series
Planar UltraRes Series Digital Signage Display Model Overview
The Planar UltraRes Series is a line of 75", 84" and 98" Ultra HD resolution (3840 x 2160) professional LCD displays with best-in-class image and color quality for native 4K and upscaled content. Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.
Planar 997-7699-00 Digital Signage Display Overview

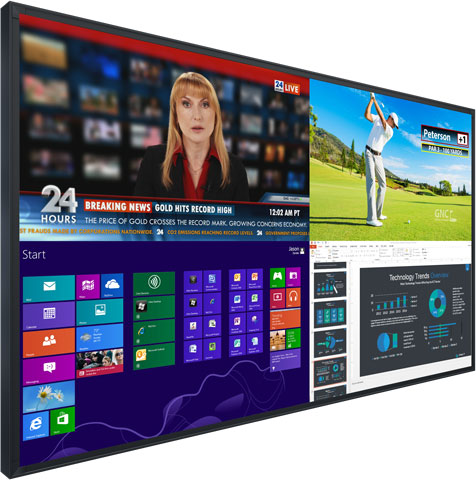

Planar® UltraRes™ Series UR9850 is a 98" ultra HD (3840 x 2160) professional LCD display that supports large rooms by providing a seamless, single-display solution to applications previously requiring a tiled video wall. Designed for resolution-rich commercial applications, the Planar UltraRes UR9850 combines 4K clarity with state-of-the-art design and performance. From conference rooms to training centers to public display applications, the immersive 98" display captures the attention of audiences from a wide range of viewing distances.
Technical Information
Display & Graphics
Screen Size:
98"
Display Screen Type:
LCD
Display Resolution:
3840 x 2160
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Direct LED
Video
Scan Format:
2160p
Standard Refresh Rate:
60 Hz
Frame Refresh Rate:
120 Hz
Dynamic Contrast Ratio:
20,000:1
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
USB:
Yes
HDMI:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Physical Characteristics
Height:
49.5"
Width:
86.7"
Depth:
3.6"
Weight (Approximate):
210 lb
Miscellaneous
Certifications & Standards:
- FCC Class A
- EN55022/CISPR22
- ICES-003
- EN55024
- CNS 13438
- EN60950-1
- CE
- cTUVus
- TAA
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0643332482214, 0810689001645
UPC:
643332482214, 810689001645
EAN:
0643332482214, 0810689001645
UNSPSC:
43211902
