Full specifications (PDF)
Features:
- Landscape/Portrait Viewable
- Ultra Slim
Planar 997-7655-00 Digital Signage Display
Part Number:
997-7655-00
Model:
PS Series
Planar PS Series Digital Signage Display Model Overview
The Planar PS Series is a line of professional large format LCD displays that offer a full set of commercial-grade features with superior visual performance that is well-suited for demanding digital signage and corporate environments. Ranging in size from 46" - 82", the Planar PS Series features models available with media playback, interactive touch and narrow bezels. Engineered from the ground up for extended commercial use, each Planar PS Series model is recommended for up to 24x7 operation and comes standard with a durable metal bezel. At double the brightness of standard televisions, the Planar PS Series displays vibrant images and messaging that will captivate the attention of any audience.
Planar 997-7655-00 Digital Signage Display Overview

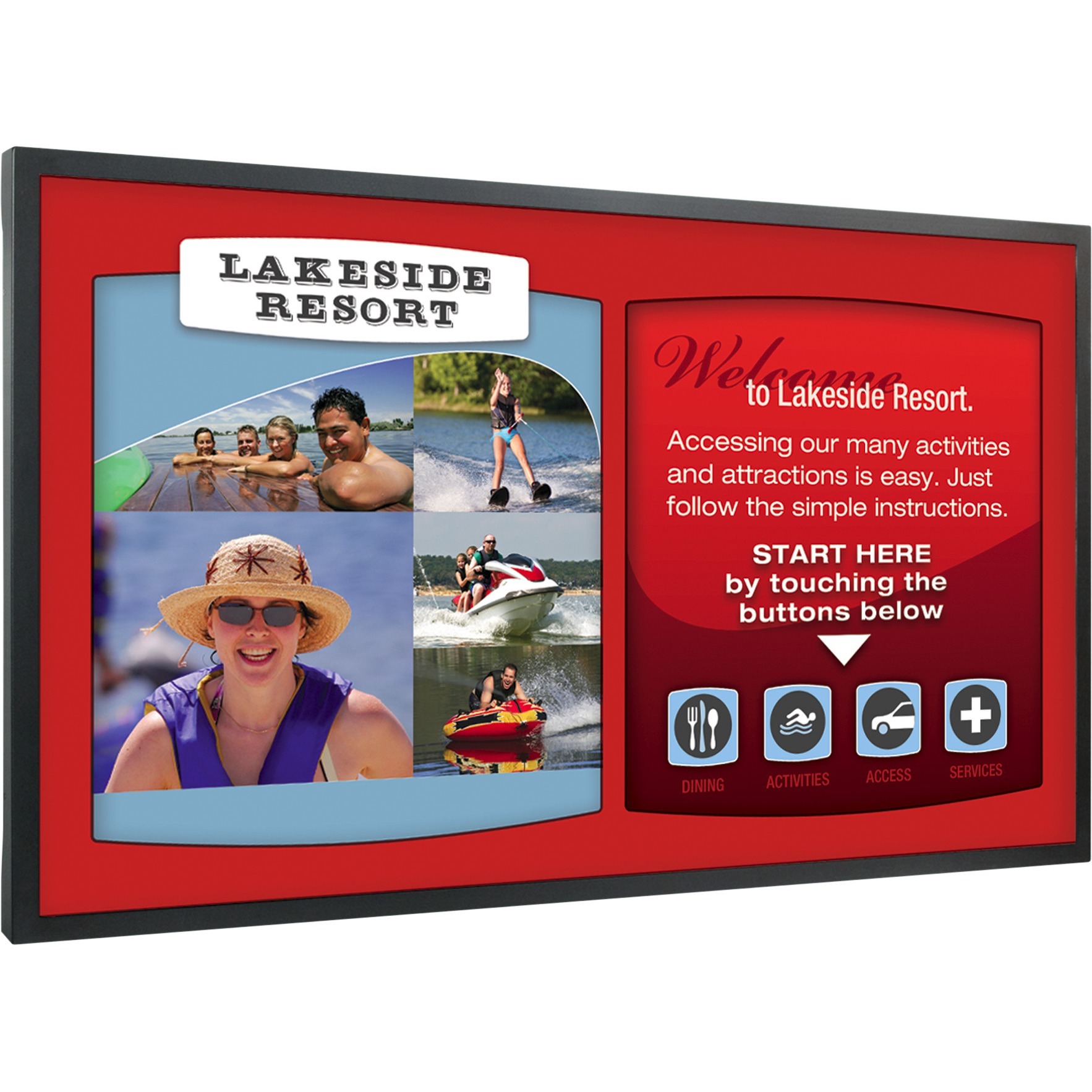

46" Interactive Commercial LCD Display
The Planar® PS4661T is a 46" commercial-grade, multi-touch LCD display offering up to 6 touch points and is compatible with Windows, MacOS X and Linux. The Planar PS4661T is the ideal combination of value, performance and 24x7 reliability for interactive applications.
The Planar® PS4661T is a 46" commercial-grade, multi-touch LCD display offering up to 6 touch points and is compatible with Windows, MacOS X and Linux. The Planar PS4661T is the ideal combination of value, performance and 24x7 reliability for interactive applications.
Technical Information
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Touchscreen:
Yes
Touchscreen Technology:
Infrared (IrDA)
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Response Time:
6.50 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
Edge LED
Audio
Number of Speakers:
2
Speakers:
Yes
RMS Output Power:
20 W
Video
Scan Format:
1080p
Standard Refresh Rate:
60 Hz
Native Contrast Ratio:
4,000:1
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Interfaces/Ports
DVI:
Yes
VGA:
Yes
HDMI:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
145 W
Physical Characteristics
Color:
Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
400 x 200
Height:
24.4"
Width:
42.1"
Depth:
2.9"
Weight (Approximate):
71 lb
Miscellaneous
Package Contents:
- PS4661T LCD Display
- Power cord
- VGA cable
- IR extender cable
- Remote control
- USB cable
Certifications & Standards:
- FCC Class A
- UL
- CE
- TAA
TAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0810689001379
UPC:
810689001379
EAN:
0810689001379
UNSPSC:
43211902
