Planar 997-7654-01 Digital Signage Display

Part Number: 997-7654-01

Model: PS Series

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Features

Key LockProgressive ScanLandscape/Portrait ViewableOn/Off SchedulingMedia Player

Screen Size

70"

Display Screen Type

LCD

Touchscreen

Yes

Product Description:

Planar PS7050T Interactive Large Format Display - 70" LCD - Touchscreen - 1920 x 1080 - Edge LED - 400 Nit - HDMI - USB - Serial

Explore all Planar PS Series Digital Signage Displays

Add to Quote

Planar 997-7654-01 Digital Signage Display

Overview

Full specifications (PDF)

Planar PS Series Digital Signage Display Model Overview

The Planar PS Series is a line of professional large format LCD displays that offer a full set of commercial-grade features with superior visual performance that is well-suited for demanding digital signage and corporate environments. Ranging in size from 46" - 82", the Planar PS Series features models available with media playback, interactive touch and narrow bezels. Engineered from the ground up for extended commercial use, each Planar PS Series model is recommended for up to 24x7 operation and comes standard with a durable metal bezel. At double the brightness of standard televisions, the Planar PS Series displays vibrant images and messaging that will captivate the attention of any audience.

Planar 997-7654-01 Digital Signage Display Overview

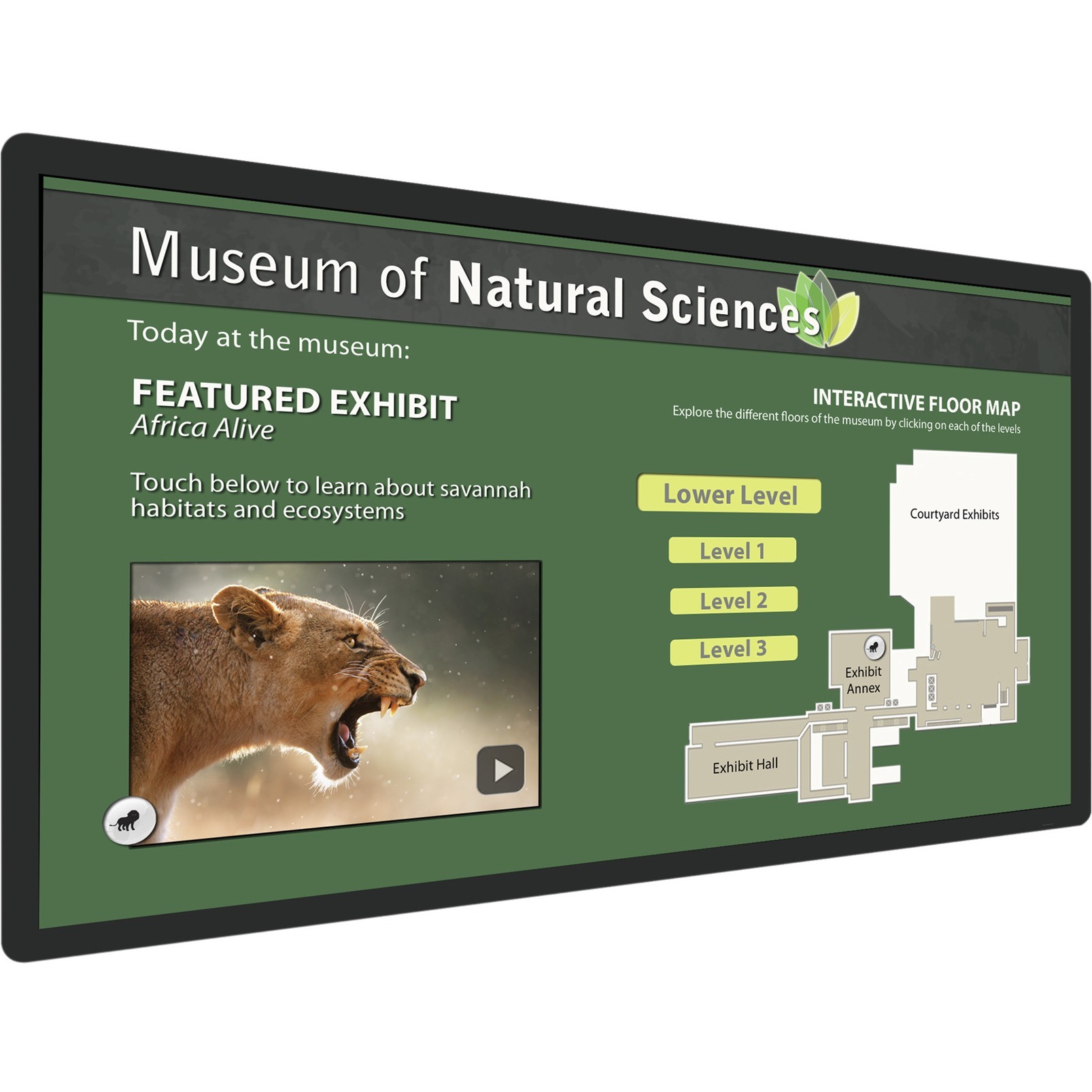

70" Interactive Commercial LCD Display

The Planar® PS7050T is a 70" commercial-grade, multi-touch LCD display offering up to 10 touch points and is compatible with Windows, MacOS X and Linux. The Planar PS7050T is the ideal combination of value, performance and 24x7 reliability for interactive applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Features:

Key Lock
Progressive Scan
Landscape/Portrait Viewable
On/Off Scheduling
Media Player

Display & Graphics

Screen Size:

70"

Display Screen Type:

LCD

Touchscreen:

Yes

Touchscreen Technology:

Infrared (IrDA)

Multi-touch Screen:

Yes

Display Resolution:

1920 x 1080

Response Time:

8 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

178°

Vertical Viewing Angle:

178°

Backlight Technology:

Edge LED

Audio

Number of Speakers:

Speakers:

Yes

RMS Output Power:

20 W

Video

Scan Format:

1080p

Standard Refresh Rate:

60 Hz

Native Contrast Ratio:

4,000:1

Brightness:

400 Nit

Interfaces/Ports

USB:

Yes

VGA:

Yes

HDMI:

Yes

Component Video:

Yes

Composite Video:

Yes

DisplayPort:

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Serial:

Yes

Power Description

Input Voltage:

120 V AC
230 V AC

Power Consumption:

280 W

Physical Characteristics

Product Color:

Black

VESA Mount Compatible:

Yes

VESA Mount Standard:

800 x 400

Height:

37.6"

Width:

64.3"

Depth:

3.3"

Weight (Approximate):

185 lb

Miscellaneous

Certifications & Standards:

FCC Class A
CE
TAA

cTUVus

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211902
