Full specifications (PDF)
Features:
- Landscape/Portrait Viewable
- Gorilla Glass
Planar 997-7552-00 Digital Signage Display
Part Number:
997-7552-00
Model:
UltraRes Series

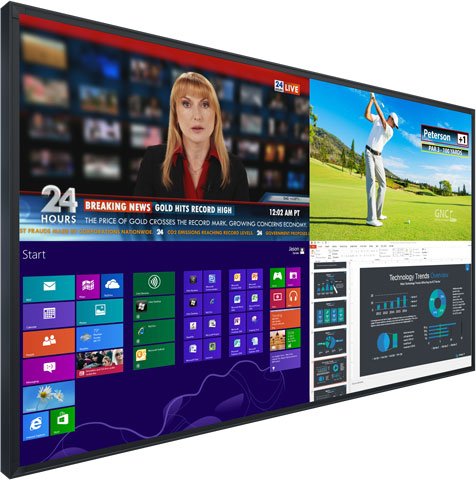

Planar UltraRes Series Digital Signage Display Model Overview
The Planar UltraRes Series is a line of 75", 84" and 98" Ultra HD resolution (3840 x 2160) professional LCD displays with best-in-class image and color quality for native 4K and upscaled content. Planar UltraRes Series displays offer superior performance with exceptional 4K clarity and advanced processing ideal for applications ranging from collaborative meeting spaces to high impact digital signage.
Planar 997-7552-00 Digital Signage Display Overview

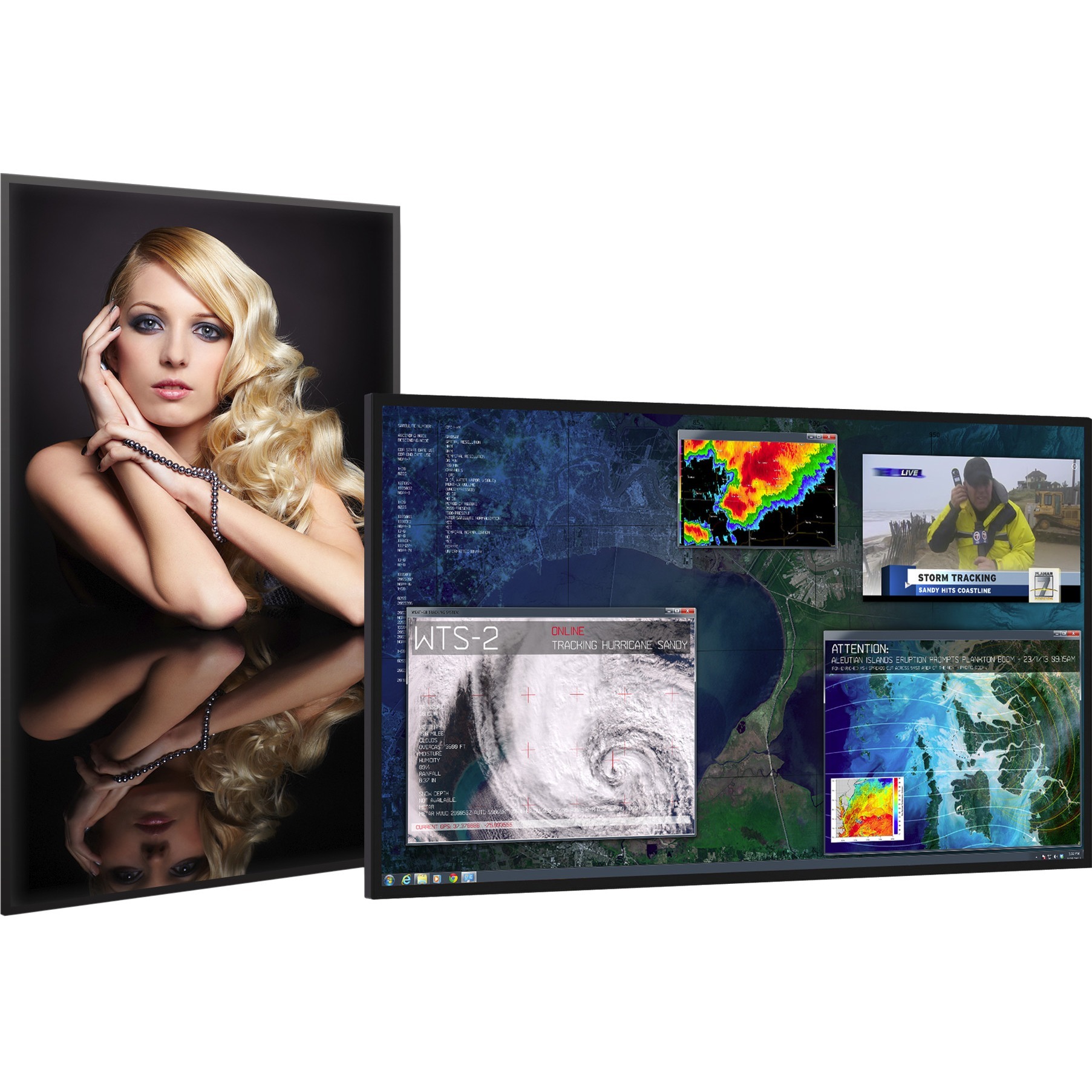

Planar® UltraRes™ Touch MX combines a multi-touch experience with stunning 4K image clarity. With six simultaneous touch points, the Planar UltraRes MX makes it easy for multiple users to collaborate and interact at the same time.Planar UltraRes Touch MXprovides 500-nit brightness, and both landscape and portrait modes, making it the ideal version for public venue and higher ambient light environments for branding, advertising and interactive digital signage applications. The displays incorporate Planar's ERO™ optically-bonded, low-friction protective glass, which provides increased ruggedness and optical performance.
Technical Information
Display & Graphics
Screen Size:
84"
Display Screen Type:
LCD
Touchscreen:
Yes
Touchscreen Technology:
Infrared (IrDA)
Multi-touch Screen:
Yes
Display Resolution:
3840 x 2160
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Video
Scan Format:
2160p
Standard Refresh Rate:
60 Hz
Frame Refresh Rate:
120 Hz
Dynamic Contrast Ratio:
500,000:1
Brightness:
500 Nit
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
USB:
Yes
USB Standard:
USB 2.0
HDMI:
Yes
DisplayPort:
Yes
Network (RJ-45):
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
460 W
Physical Characteristics
Weight (Approximate):
205 lb
Miscellaneous
Certifications & Standards:
- FCC Class A
- EN55022/CISPR22
- ICES-003
- EN55024
- CNS 13438
- EN60950-1
- CE
- cTUVus
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0810689001300
UPC:
810689001300
EAN:
0810689001300
UNSPSC:
43211902
