Planar 997-7454-00 Products

Part Number: 997-7454-00
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Screen Surface
Anti-glare

Product Description:

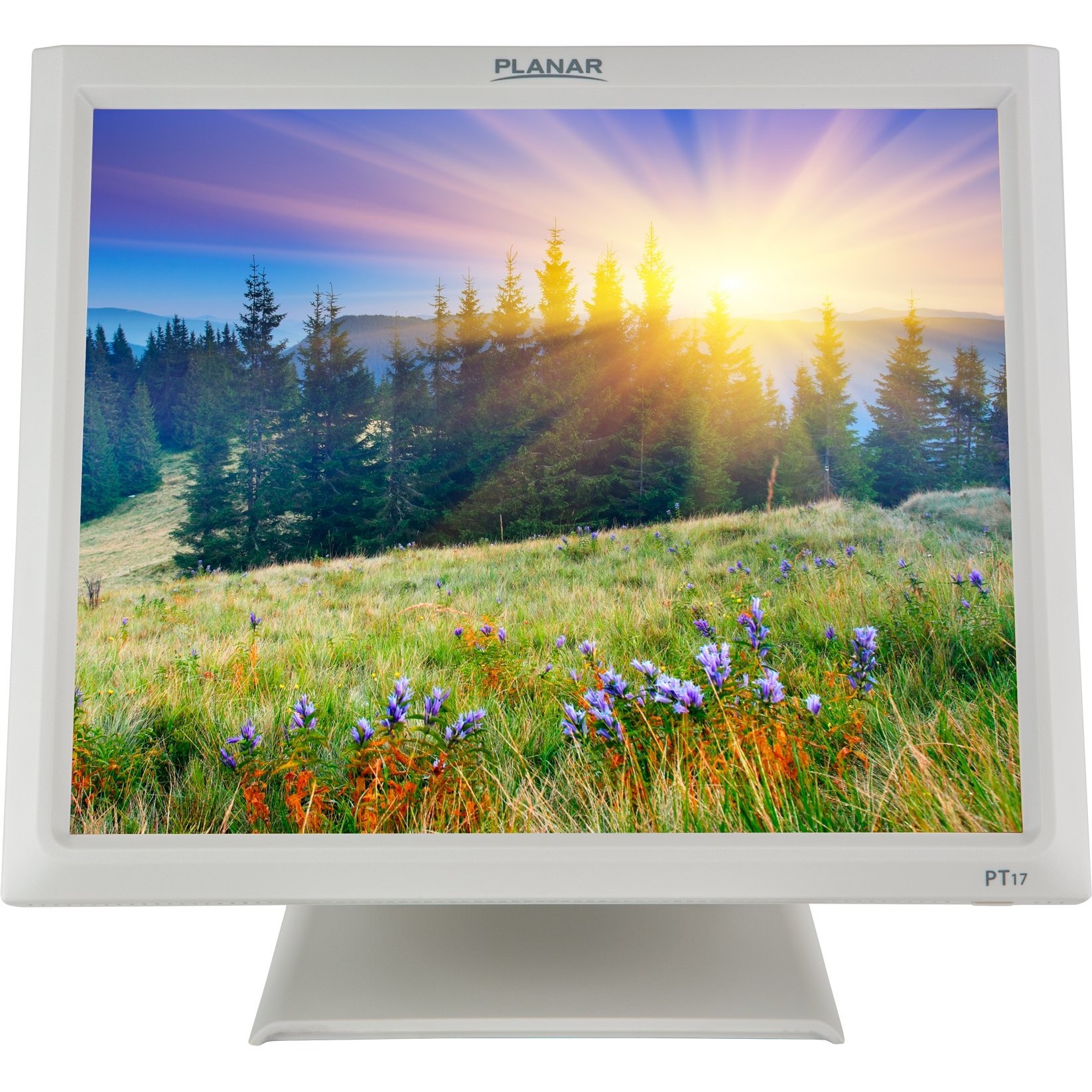

  Planar PT1745R 17" LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Speakers - USB - VGA - White - RoHS 2, RoHS - 3 Year
Explore all Planar Parts Accessories
Add to Quote
Planar 997-7454-00 Products
Planar 997-7454-00 Products
Planar 997-7454-00 Products
Planar 997-7454-00 Products Planar 997-7454-00 Products Planar 997-7454-00 Products

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 997-7454-00 Products Overview

Easily integrated with a variety of POS, thin client or PC systems, the cost-effective PT1745R touchscreen features a 5-wire resistive touch screen with dual RS-232/USB interface, an internal power supply and a desk stand with -5 to 90° tilt range. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.

Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Mount Type:
  • Wall Mountable
  • Arm-mountable
Tilt Angle:
-5°to90°
Features:
Security Lock
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Built-in Devices
Built-in Devices:
Speaker
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
20 W
Standby Power Consumption:
3.99 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
White
Height:
12.6"
Width:
15.2"
Depth:
2.3"
Height with Stand:
13.50"
Width with Stand:
15.20"
Depth with Stand:
8"
Weight (Approximate):
12.60 lb
Miscellaneous
Package Contents:
  • PT1745R 17" Touchscreen LCD Monitor
  • Power Cord
  • VGA Cable
  • RS-232 Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • TUV-T mark
  • CE
Platform Supported:
  • PC
  • Mac
  • Unix
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS 2
  • RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689000518, 0818214862761
UPC: 810689000518, 818214862761
EAN: 0810689000518, 0818214862761
UNSPSC: 43211903
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Planar 997-7454-00 Products is also known as 997-7454-00
