Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
22"
Screen Mode
Full HD
Response Time
14 ms

Product Description:

  Planar PT2245PW 22" LCD Touchscreen Monitor - 16:9 - 14 ms - 22" Class - Projected CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - Adjustable Display Angle - 16.7 Million Colors - 1,000:1 - 250 Nit - Edge LED Backlight - DVI - USB - VGA - Black - RoHS 2 - 3 Year
Explore all Planar Parts Accessories
Add to Quote
Planar 997-7416-00 Products
Planar 997-7416-00 Products
Planar 997-7416-00 Products
Planar 997-7416-00 Products Planar 997-7416-00 Products Planar 997-7416-00 Products

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 997-7416-00 Products Overview

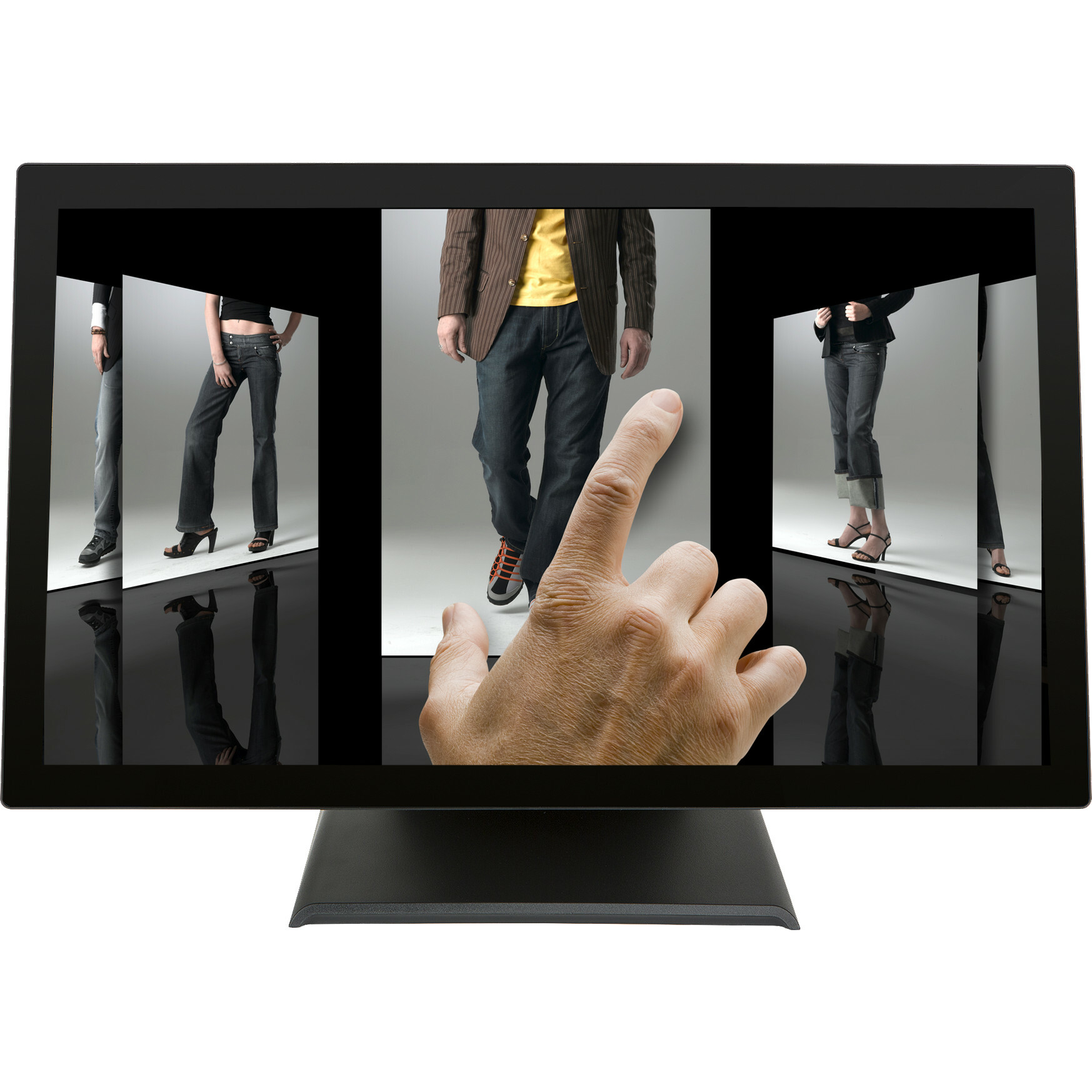

For image-conscious retail, hospitality, or healthcare establishments looking for a wide-format touch screen monitor, the Planar PT2245PW 22-inch monitor is optimized with multi-touch interactivity for displaying 16:9 content. With its ultra-thin profile and its sleek,edge-to-edge glass surface, the Planar PT2245PW provides the ultimate end-user experience.

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
22"
Screen Mode:
Full HD
Response Time:
14 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Adjustable Display Angle:
Yes
Mount Type:
  • Wall Mountable
  • Arm-mountable
  • Desk Mountable
Backlight Technology:
Edge LED
Tilt Angle:
-5°to90°
Features:
  • OSD/Power Lock
  • Security Lock
  • Ultra Slim
Horizontal Frequency:
67.50 kHz
Video
Maximum Resolution:
1920 x 1080
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
26.40 W
Standby Power Consumption:
1.80 W
Off-Mode Power Consumption:
800 mW
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
13.8"
Width:
20.4"
Depth:
8.6"
Height with Stand:
12.30"
Width with Stand:
20.40"
Depth with Stand:
1.80"
Weight (Approximate):
11.02 lb
Miscellaneous
Package Contents:
  • PT2245PW Touch Monitor
  • DC Power Supply
  • Power Cord
  • VGA Cable
  • DVI-D Cable
  • USB Cable (A to B)
  • User's Guide
  • Quick Start Guide
  • Cable Cover
  • Screw
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • CE
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012303498309, 0537935000794, 0739977730572, 0787565971678, 0810689000259
UPC: 012303498309, 537935000794, 739977730572, 787565971678, 810689000259
EAN: 0012303498309, 0537935000794, 0739977730572, 0787565971678, 0810689000259
UNSPSC: 43211903
