Planar 997-7414-01 POS System

Part Number: 997-7414-01
Model: Parts
Add to My Shopping List Add to Compare
$515.10

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Pixel Pitch
10.4 mil

Product Description:

  17IN BLACK POINT OF SALE MONITOR, HID COMPLIANT PROJECTED CAPACITIVE MULTI-TOUCH SXGA LED LCD, VGA, HDMI, DP INPUTS, SPEAKERS, 90 DEGREE TILT.
Explore all Planar Parts Accessories
Add to Quote
Planar 997-7414-01 POS System
Planar 997-7414-01 POS System
Planar 997-7414-01 POS System
Planar 997-7414-01 POS System
Planar 997-7414-01 POS System
Planar 997-7414-01 POS System Planar 997-7414-01 POS System Planar 997-7414-01 POS System Planar 997-7414-01 POS System Planar 997-7414-01 POS System

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 997-7414-01 POS System Overview

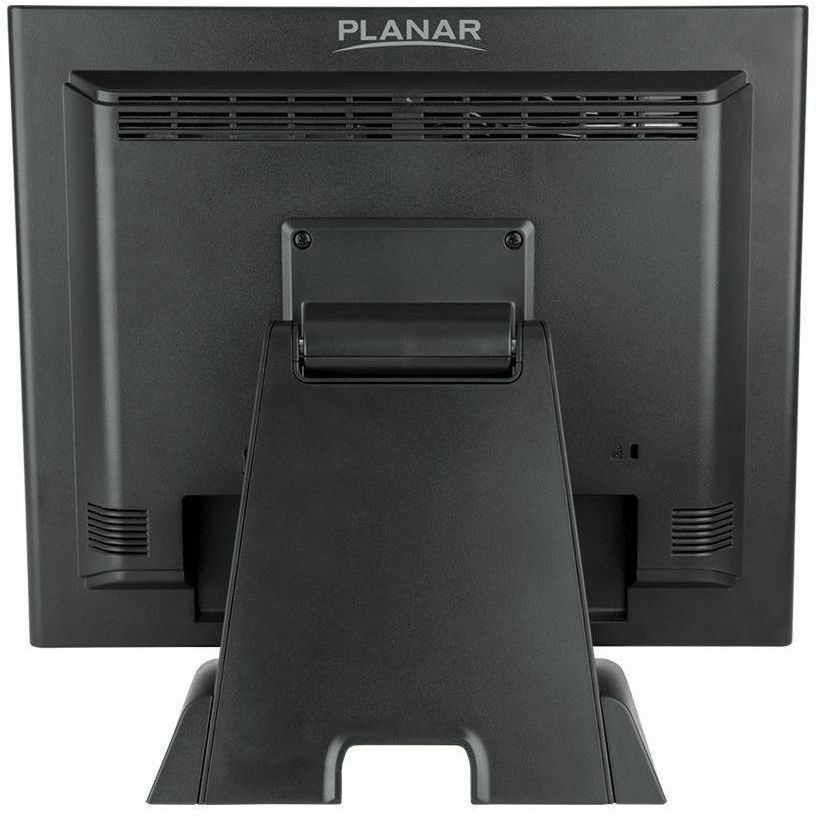

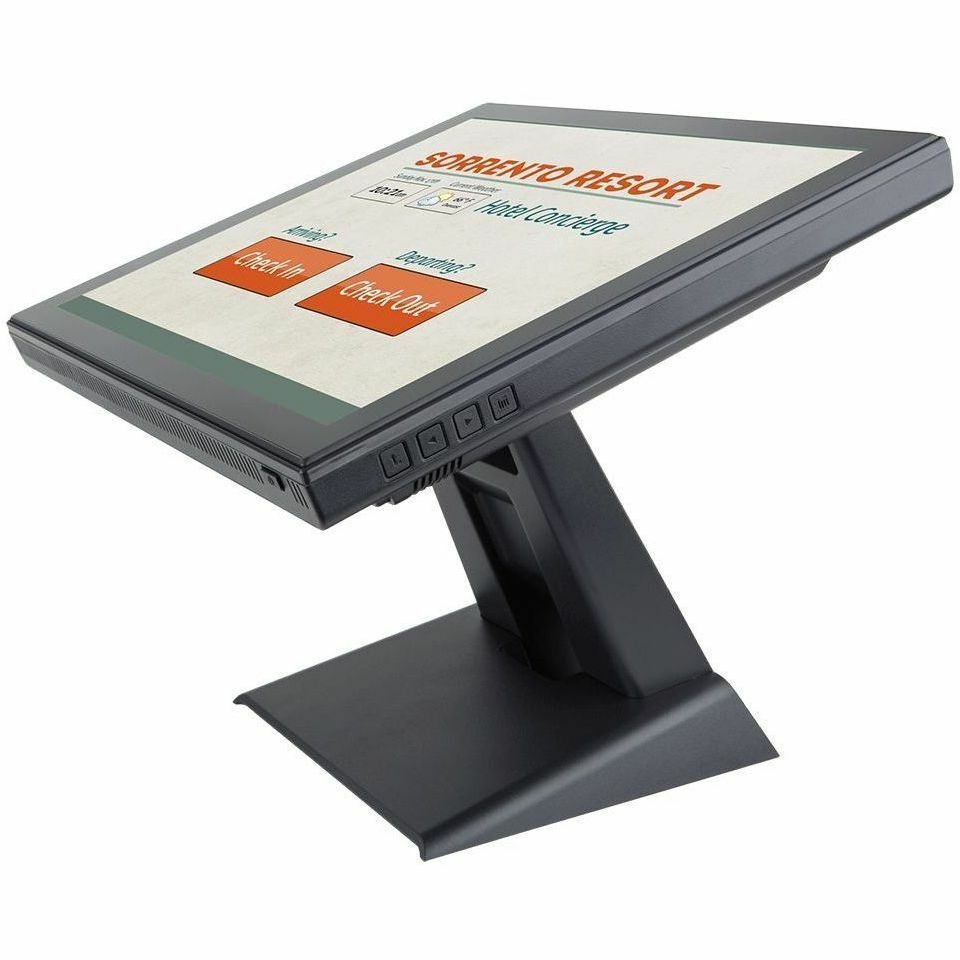

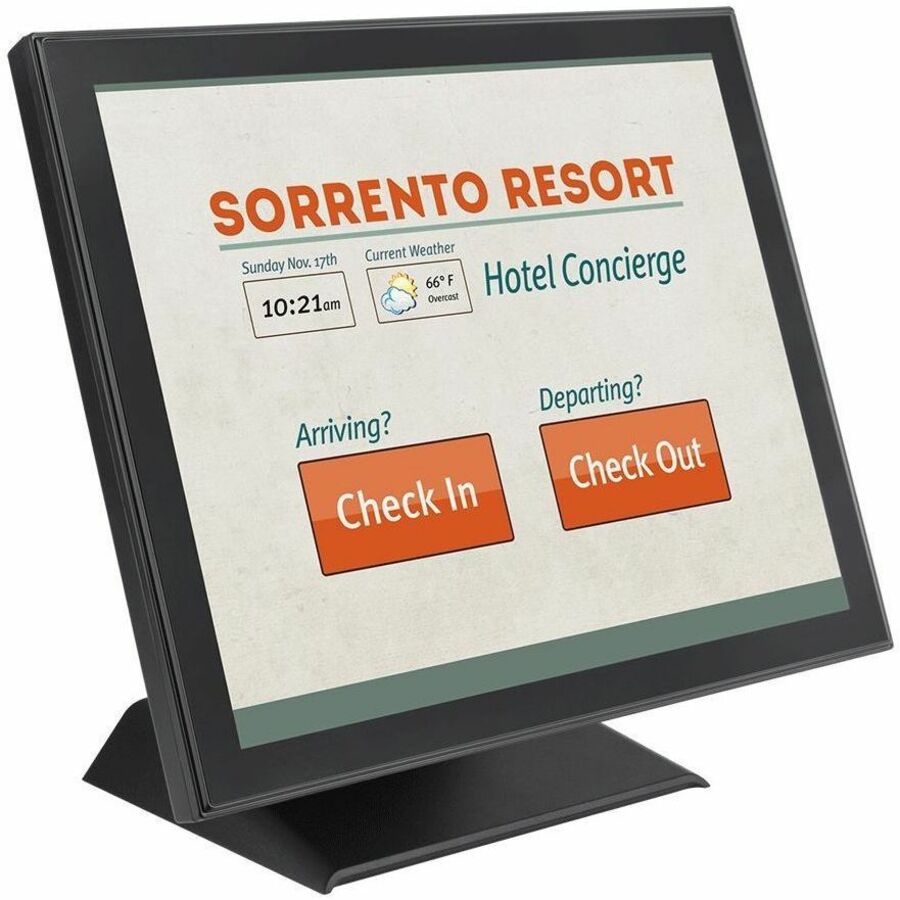

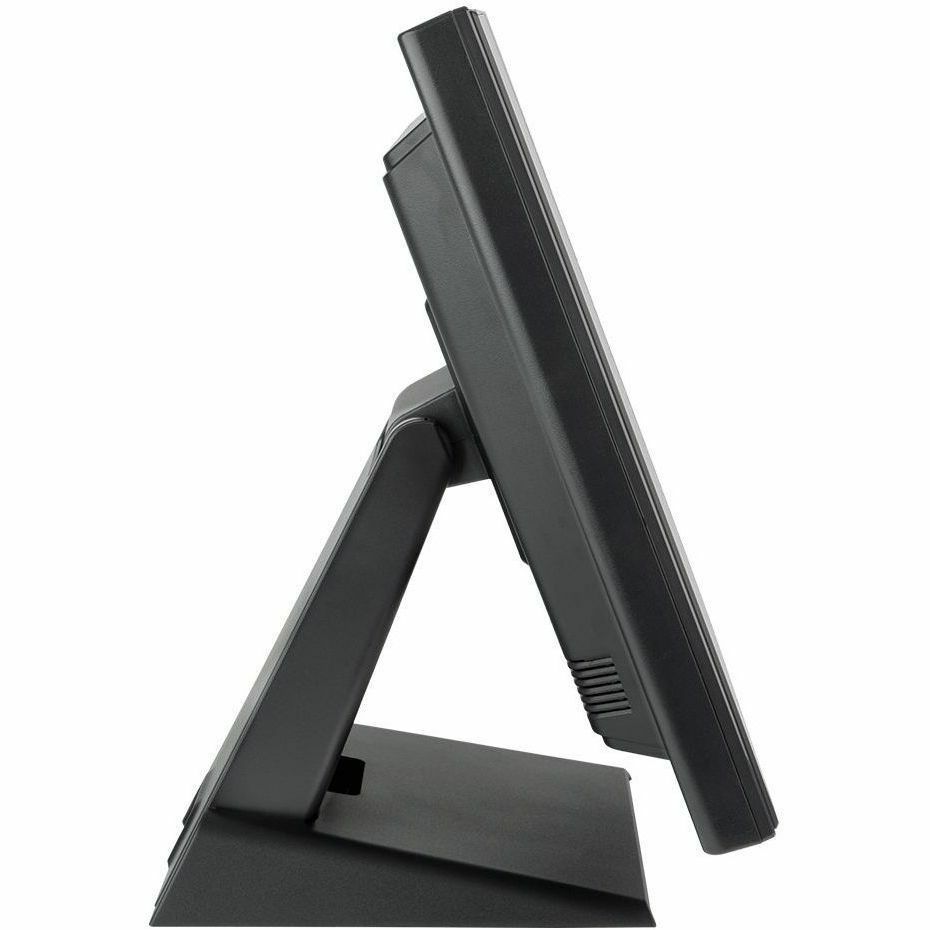

The Planar® PT1745P 17" touch screen Point of Sale (POS) monitor is perfect for image-conscious retail, hospitality, or healthcare applications. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1745P provides the ultimate interactive experience and is optimized with multi-touch interactivity for space-constrained settings. The upgraded monitor now comes with HDMI® and DisplayPort input connectivity.

Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Pixel Pitch:
10.4 mil
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Backlight Technology:
Edge LED
Features:
  • On-screen Display (OSD)
  • Cable Lock Slot
  • Edge-to-Edge Glass Design
Vertical Frequency:
56 Hz to 75 Hz
Stand Adjustments:
Tilt
Operation Hours:
16 Hours/ 7 Days
Active Display Area (H x V):
13.30" x 10.60"
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
212 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
DisplayPort:
Yes
Environmental Conditions
Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
Power Description
Operating Power Consumption:
11.90 W
Maximum Power Consumption:
11.90 W
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
Black
Product Color:
Black
Height:
12.6"
Width:
15.2"
Depth:
2.6"
Height with Stand:
13.46"
Width with Stand:
15.23"
Depth with Stand:
7.95"
Weight (Approximate):
8.82 lb
Weight with Stand (Approximate):
12.35 lb
Miscellaneous
Package Contents:
  • PT1745P 17" Touch Screen Point of Sale Monitor
  • Power Cord
  • VGA Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • HDMI Cable
  • User's Guide
  • Landing strip
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689009818
UPC: 810689009818
EAN: 0810689009818
UNSPSC: 43211903
