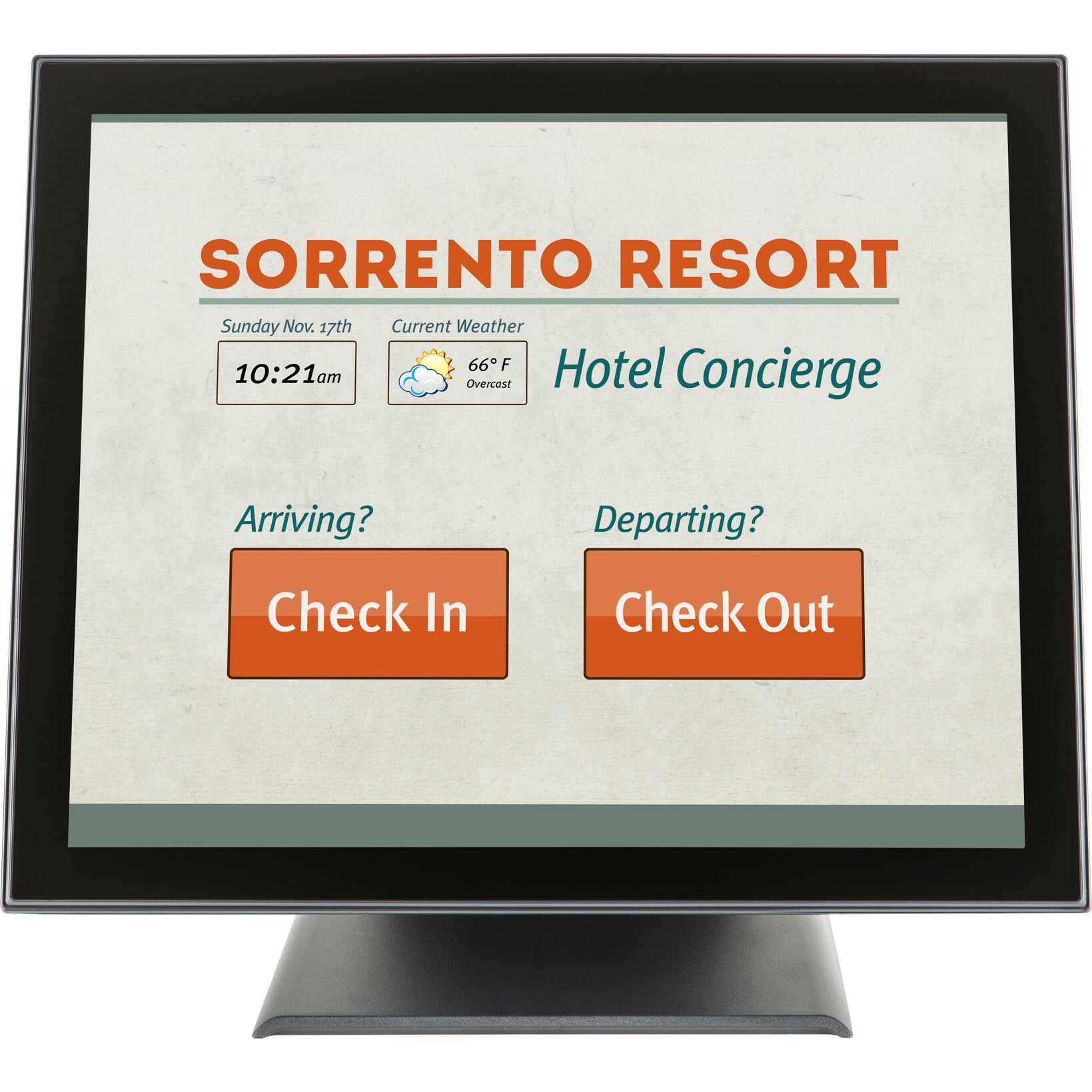

Planar 997-7413-00 Touchscreen

Part Number: 997-7413-00
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA-2
Response Time
8 ms

Product Description:

  Planar PT1545P 15" LCD Touchscreen Monitor - 4:3 - 8 ms - 15" Class - Projected CapacitiveMulti-touch Screen - 1024 x 768 - XGA-2 - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Edge LED Backlight - Speakers - USB - VGA - RoHS 2 - 3 Year
Explore all Planar Parts Accessories
Add to Quote
Planar 997-7413-00 Touchscreen
Planar 997-7413-00 Touchscreen
Planar 997-7413-00 Touchscreen
Planar 997-7413-00 Touchscreen Planar 997-7413-00 Touchscreen Planar 997-7413-00 Touchscreen

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 997-7413-00 Touchscreen Overview
For image-conscious retail, hospitality or healthcare applications, the Planar® PT1545P 15" touch screen monitor is optimzed with multi-touch interactivity for space-constrained settings. With its ultra-thin profile enclosure and its sleek edge-to-edge glass surface, the Planar PT1545P provides the ultimate interactive experience.
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA-2
Response Time:
8 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Adjustable Display Angle:
Yes
Mount Type:
  • Wall Mountable
  • Arm-mountable
Backlight Technology:
Edge LED
Tilt Angle:
-5° to 90°
Features:
Security Lock
Horizontal Frequency:
60 kHz
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
25 W
Standby Power Consumption:
3 W
Off-Mode Power Consumption:
1 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
10.9"
Width:
13.8"
Depth:
2.5"
Height with Stand:
12.10"
Width with Stand:
13.80"
Depth with Stand:
8"
Weight (Approximate):
6.40 lb
Weight with Stand (Approximate):
9.90 lb
Miscellaneous
Package Contents:
  • 15" Touch Screen Monitor
  • Power Cord
  • VGA Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • CE
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS 2
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0696554915879, 0810689000228, 0818214091420, 4943793106329
UPC: 696554915879, 810689000228, 818214091420
EAN: 0696554915879, 0810689000228, 0818214091420, 4943793106329
UNSPSC: 43211903
