Features:
- Video Wall
- Progressive Scan
- Ultra Slim
Planar 997-7223-00 Digital Signage Display
Part Number:
997-7223-00
Model:
Clarity Matrix LX
Planar Clarity Matrix LX Digital Signage Display Model Overview
The Planar Clarity Matrix™ LCD Video Wall System with G2 Architecture delivers superior visual performance and mission-critical reliability for a diverse range of applications. Designed for 24/7 operation, its unique architecture minimizes installation depth while ensuring stunning visual quality with the industry's thinnest bezels at just 3.7mm. With features like the Planar® EasyAxis™ Mounting System and off-board electronics, it offers an effortless installation and maintenance experience, making it ideal for environments requiring exceptional display accuracy and durability.
Key features:
Specifications:
Key features:
- Thin Bezels: Tiled bezel width as small as 3.7mm for seamless visuals.
- Mission-Critical Design: Redundant power supplies ensure uninterrupted operation.
- Flexible Mounting: Planar EasyAxis™ Mounting System for quick and precise alignment.
- High Brightness Levels: Options available up to 800 nits.
- MultiTouch Capabilities: Optional touch kit with up to 32 simultaneous touch points.
Specifications:
- Diagonal Sizes: 46" and 55"
- Brightness: 450 nits (LX models), 500 nits (MX models), up to 800 nits for certain models
- Contrast Ratio: 3500:1
- Operating Temperature: 5-40°C
- Operating Humidity: 20-90% RH non-condensing
- Resolution: 1920 x 1080 (Full HD)
- Mounting Depth: 3.6" (93mm)
- Power Consumption: Typical - 143-205 watts
Planar 997-7223-00 Digital Signage Display Overview

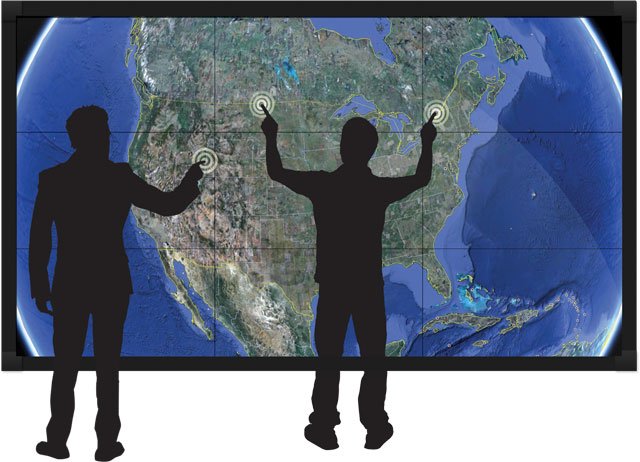

The Clarity™ Matrix MultiTouch Video Wall is an ultra-slim profile touch screen video wall ideal for public spaces or collaboration environments. Utilizing a touch kit, Clarity Matrix LX55HDS-L-ERO can be transformed into a Clarity Matrix MultiTouch Video Wall featuring up to 32 touch points and allows multiple users to simultaneously interact with video wall without affecting other users. Clarity Matrix MultiTouch with Planar's ERO™ technology (Extended Ruggedness and Optics) provides a continuous touch surface while increasing durability and optical performance. Clarity Matrix LX55HDS-L-ERO features a tiled bezel width of 5.5mm and 500nits brightness.
Technical Information
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
3,500:1
Brightness:
500 Nit
Interfaces/Ports
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
176 W
Physical Characteristics
VESA Mount Compatible:
Yes
Miscellaneous
Certifications & Standards:
- TAA
- EN60950
- FCC Class A
- CISPR22/85
- CE
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
43211902
