Features:
- Video Wall
- Progressive Scan
- Ambient Light Sensor
Planar 997-7214-00 Digital Signage Display
Part Number:
997-7214-00
Model:
Clarity Matrix LX

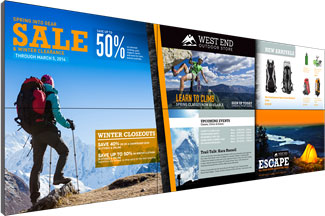

Planar Clarity Matrix LX Digital Signage Display Model Overview
The Planar Clarity Matrix™ LCD Video Wall System with G2 Architecture delivers superior visual performance and mission-critical reliability for a diverse range of applications. Designed for 24/7 operation, its unique architecture minimizes installation depth while ensuring stunning visual quality with the industry's thinnest bezels at just 3.7mm. With features like the Planar® EasyAxis™ Mounting System and off-board electronics, it offers an effortless installation and maintenance experience, making it ideal for environments requiring exceptional display accuracy and durability.
Key features:
Specifications:
Key features:
- Thin Bezels: Tiled bezel width as small as 3.7mm for seamless visuals.
- Mission-Critical Design: Redundant power supplies ensure uninterrupted operation.
- Flexible Mounting: Planar EasyAxis™ Mounting System for quick and precise alignment.
- High Brightness Levels: Options available up to 800 nits.
- MultiTouch Capabilities: Optional touch kit with up to 32 simultaneous touch points.
Specifications:
- Diagonal Sizes: 46" and 55"
- Brightness: 450 nits (LX models), 500 nits (MX models), up to 800 nits for certain models
- Contrast Ratio: 3500:1
- Operating Temperature: 5-40°C
- Operating Humidity: 20-90% RH non-condensing
- Resolution: 1920 x 1080 (Full HD)
- Mounting Depth: 3.6" (93mm)
- Power Consumption: Typical - 143-205 watts
Planar 997-7214-00 Digital Signage Display Overview
The 55" Clarity™ Matrix LX55HDS-L with G2 Architecture features Full HD resolution, LED backlighting and a mere 5.5mm bezel gap for outstanding tiled visual performance. This model features standard brightness of 500 nits for controlled ambient lighting and is ideal for lighter usage environments. Featuring Planar's EasyAxis™ Mounting System, Clarity Matrix LX55HDS-L has an ultra-thin installed depth of 4.2"/107mm, 6-axis adjustment cams for perfect panel-to-panel alignment and front-service mode.
Technical Information
Display & Graphics
Screen Size:
55"
Display Screen Type:
LCD
Touchscreen:
Yes
Multi-touch Screen:
Yes
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
3,500:1
Brightness:
500 Nit
Interfaces/Ports
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
176 W
Physical Characteristics
VESA Mount Compatible:
Yes
Miscellaneous
Certifications & Standards:
- TAA
- EN60950
- FCC Class A
- CISPR22/85
- CE
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
43211902
Recommended Accessories
Category
- Digital Signage Display (1)
- Digital Signage Display Accessories (27)
Recommended Accessories for Model: Planar 997-7214-00 Digital Signage Display
Top Digital Signage Display Purchased With Planar 997-7214-00
-
Planar 997-7803-00 Digital Signage DisplayPlanar Clarity Matrix LX46HDU LCD Video Wall System - 46" LCD - 1920 x 1080 - Direct LED - 500 Nit - HDMI - Serial$5,643.00
Top Digital Signage Display Accessories Purchased With Planar 997-7214-00
-
Planar 175-0999-00 Accessory25-foot (7.6-meter) Primary Power Cable - to provide a 48V power connection from the Power Supply Module to the display.$112.42 -
Planar 175-0899-00 Accessory100-foot (33-meter) Primary Power Cable - to provide a 48V power connection from the Power Supply Module to the display.$390.68 -
Planar 175-0993-00 Accessory8-foot (2.5-meter) Interconnect Power Cable - to provide a 48V power connection between 1 display and the next display in a daisy-chained group.$78.78
