Full specifications (PDF)
Features:
- Video Wall
- Progressive Scan
Planar 997-7212-00 Digital Signage Display
Part Number:
997-7212-00
Model:
Clarity Matrix MX
Planar Parts Accessory Model Overview
Products and parts from Planar.
Planar 997-7212-00 Digital Signage Display Overview

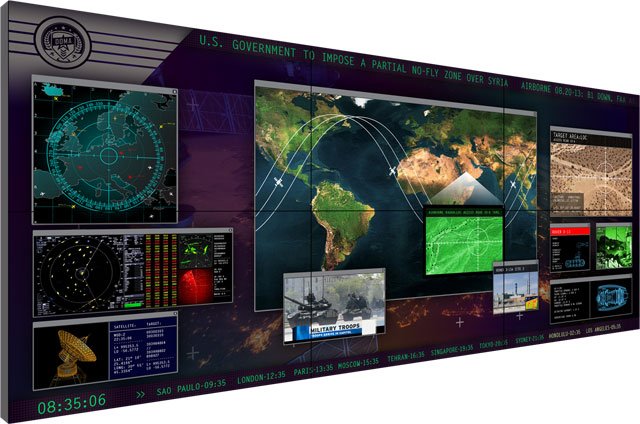

The Clarity™ Matrix MX46HDS-L with G2 Architecture is an ultra-narrow bezel 46" LCD video wall display that provides outstanding tiled visual performance, supports extended operation and requires minimal installation space. Designed for 24x7 operation, the Clarity Matrix MX46HDS-L features 800 nits brightness, LED backlight technology and Full HD resolution making it the ideal video wall for high-impact, mission-critical applications. Clarity Matrix MX46HDS-L features a tiled bezel width as small as 5.5 mm, creating a near seamless digital canvas.
Technical Information
Display & Graphics
Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
3,500:1
Brightness:
800 Nit
Interfaces/Ports
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
170 W
Physical Characteristics
VESA Mount Compatible:
Yes
Miscellaneous
Certifications & Standards:
- EN60950
- FCC Class A
- CISPR22/85
- CE
- TAA
Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC:
43211902
Recommended Accessories
Category
- Digital Signage Display Accessories (24)
- General Software (1)
Recommended Accessories for Model: Planar 997-7212-00 Digital Signage Display
Top Digital Signage Display Accessories Purchased With Planar 997-7212-00
-
Planar 175-0999-00 Accessory25-foot (7.6-meter) Primary Power Cable - to provide a 48V power connection from the Power Supply Module to the display.Item on backorder — chat for lead time$112.42 -
Planar 175-0899-00 Accessory100-foot (33-meter) Primary Power Cable - to provide a 48V power connection from the Power Supply Module to the display.Item on backorder — chat for lead time$390.68 -
Planar 175-0993-00 Accessory8-foot (2.5-meter) Interconnect Power Cable - to provide a 48V power connection between 1 display and the next display in a daisy-chained group.Item on backorder — chat for lead time$62.45
Top General Software Purchased With Planar 997-7212-00
-
Planar 997-7432-00 SoftwareAn auto color balance tool used to measure the Clarity Matrix with G2 Architecture LCD modules, calculate, and automatically adjust for optimal color and brightness.Please Call for Pricing or to Purchase
The Planar 997-7212-00 Digital Signage Display is also known as
997-7212-00
