Full specifications (PDF)
Features:
- Video Wall
- Progressive Scan
Planar 997-7210-00 Digital Signage Display
Part Number:
997-7210-00
Model:
Clarity Matrix LX

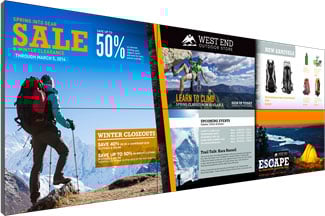

Planar Clarity Matrix LX Digital Signage Display Model Overview
The Planar Clarity Matrix™ LCD Video Wall System with G2 Architecture delivers superior visual performance and mission-critical reliability for a diverse range of applications. Designed for 24/7 operation, its unique architecture minimizes installation depth while ensuring stunning visual quality with the industry's thinnest bezels at just 3.7mm. With features like the Planar® EasyAxis™ Mounting System and off-board electronics, it offers an effortless installation and maintenance experience, making it ideal for environments requiring exceptional display accuracy and durability.
Key features:
Specifications:
Key features:
- Thin Bezels: Tiled bezel width as small as 3.7mm for seamless visuals.
- Mission-Critical Design: Redundant power supplies ensure uninterrupted operation.
- Flexible Mounting: Planar EasyAxis™ Mounting System for quick and precise alignment.
- High Brightness Levels: Options available up to 800 nits.
- MultiTouch Capabilities: Optional touch kit with up to 32 simultaneous touch points.
Specifications:
- Diagonal Sizes: 46" and 55"
- Brightness: 450 nits (LX models), 500 nits (MX models), up to 800 nits for certain models
- Contrast Ratio: 3500:1
- Operating Temperature: 5-40°C
- Operating Humidity: 20-90% RH non-condensing
- Resolution: 1920 x 1080 (Full HD)
- Mounting Depth: 3.6" (93mm)
- Power Consumption: Typical - 143-205 watts
Planar 997-7210-00 Digital Signage Display Overview
The 46" Clarity™ Matrix LX46HDS-L with G2 Architecture features Full HD resolution, LED backlighting and a mere 5.5mm bezel gap for outstanding tiled visual performance. This model features standard brightness of 500 nits for controlled ambient lighting and is ideal for lighter usage environments.Featuring Planar's EasyAxis™ Mounting System, Clarity Matrix LX46HDS-L has an ultra-thin installed depth of 4.2"/107mm, 6-axis adjustment cams for perfect panel-to-panel alignment and front-service mode.
Technical Information
Display & Graphics
Viewable Screen Size:
46"
Display Screen Type:
LCD
Display Resolution:
1920 x 1080
Response Time:
8 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Backlight Technology:
LED
Video
Scan Format:
1080p
Dynamic Contrast Ratio:
3,500:1
Brightness:
500 Nit
Interfaces/Ports
HDMI:
Yes
DisplayPort:
Yes
Serial:
Yes
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Power Consumption:
143 W
Physical Characteristics
VESA Mount Compatible:
Yes
Miscellaneous
Certifications & Standards:
- EN60950
- FCC Class A
- CISPR22/85
- CE
- TAA
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0810689000891
UPC:
810689000891
EAN:
0810689000891
UNSPSC:
43211902
