Planar 997-6290-00LF Touchscreen

The Planar 997-6290-00LF Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Planar LA1500RTS - Planar LA1500RTS 15" Open-frame LCD Touchscreen Monitor - 8 ms - 15" Class - Surface Acoustic Wave - 1024 x 768 - XGA - 600:1 - 250 Nit - USB - VGA - Black - RoHS - 3 Year
  • The 600:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued Need Assistance?
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

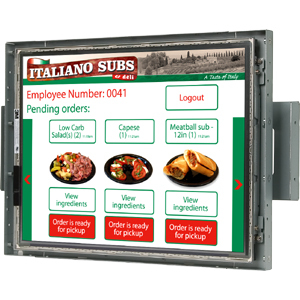

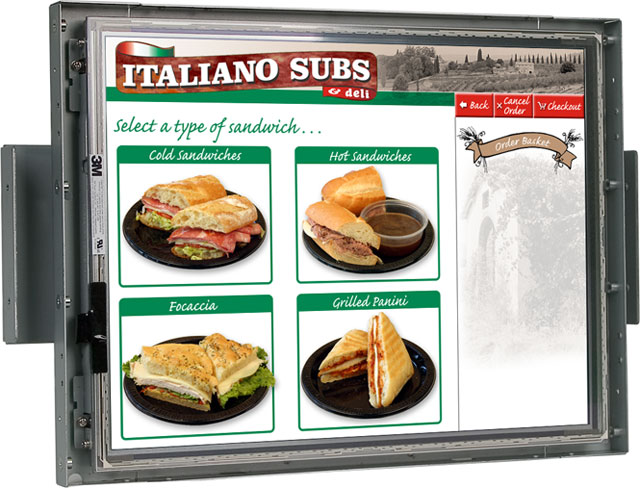

Planar LA1500RTS Touchscreen Model Overview
Easily integrated into kiosk enclosures, the cost-effective touchscreen LA1500RTS open-frame kiosk display features a SAW touch screen with dual RS-232/USB interface. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.
Planar 997-6290-00LF Touchscreen Overview

Get all the advantages of Planar's desktop LCD monitor in an embeddable, open-frame style. Ideal cost-sensitive retail, ticketing and hospitality applications, the LA1500RTS features SAW touch screen and dual serial/USB touch screen interface for use in indoor environments. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions. The display offers sharp, clear images to engage consumers. A thin, space-saving design that also reduces heat output and power requirements. And the reliable performance you expect from Planar. All this without the extra hardware costs of an unnecessary bezel and stand. Planar's open-frame monitors are designed for easy integration into kiosk enclosures. The LA1500RTS is ideal for integrators and OEMs. Most important, Planar LA open-frame kiosk displays come standard with 3-year, 48-hour advance replacement warranty saving you time and money.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
8 ms
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
140°
Video
Maximum Resolution:
1024 x 768
Contrast Ratio:
600:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
30 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color:
Black
Height:
10.6"
Width:
14.2"
Depth:
1.9"
Weight (Approximate):
7.70 lb
Miscellaneous
Package Contents:
  • LA1500RTS Open-frame Touchscreen LCD Monitor
  • Mounting Brackets
Certifications & Standards:
  • TUV
  • UL1950 Certified
  • FCC-B
  • CE-B
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211903
