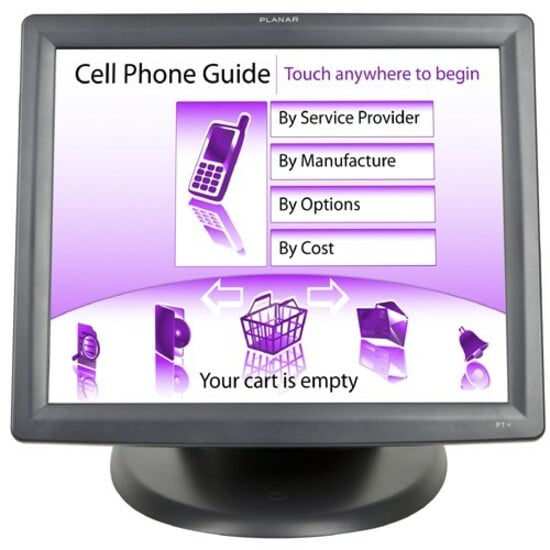

Planar 997-5973-00 Touchscreen

The Planar 997-5973-00 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Planar PT1975R - Planar PT1975R 19" LCD Touchscreen Monitor - 5 ms - 19" Class - 5-wire Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 800:1 - 300 Nit - DVI - USB - VGA - Black - 3 Year
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 300 Nit brightness
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Planar PT1975R Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Planar 997-5973-00 Touchscreen
Planar 997-5973-00 Touchscreen Planar 997-5973-00 Touchscreen
Planar 997-5973-00 Touchscreen
Planar 997-5973-00 Touchscreen
Planar PT1975R Touchscreen Model Overview
The PT1975R 17" touch screen monitor is perfect for use in healthcare, retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a 5-wire resistive touch screen and dual serial/USB touch screen interface. Available in black or white, users may use a finger, gloved hand, credit card, pen or stylus to activate the resistive touch screen. The user can easily adjust the monitor from -5° to 90° based on preference. The OSD buttons are located on the side of the monitor to minimize setting changes. The OSD buttons can also be locked for customer-facing applications.
Planar 997-5973-00 Touchscreen Overview

The PT1975R black 19" touch screen monitor is perfect for use in healthcare, retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a 5-wire resistive touch screen and dual serial/USB touch screen interface. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly loaded using the easy to follow, step-by-step instructions. Users may use a finger, gloved hand, credit card, pen or stylus to activate the resistive touch screen. The user can also easily adjust the monitor from -5° to 90° based on preference. The OSD buttons are located on the side of the monitor to minimize setting changes. The OSD buttons can also be locked for customer-facing applications. It also comes with both analog and DVI-D input options.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Response Time:
5 ms
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
300 Nit
Audio
Number of Speakers:
2
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
45 W
Standby Power Consumption:
4 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
14.6"
Width:
17.2"
Depth:
2.7"
Height with Stand:
16"
Width with Stand:
17.20"
Depth with Stand:
10.50"
Weight (Approximate):
14.11 lb
Weight with Stand (Approximate):
19.62 lb
Miscellaneous
Package Contents:
  • PT1975R Touchscreen LCD Monitor
  • Power Cord
  • VGA Cable
  • RS-232 Cable
  • DVI Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
Compatibility:
  • PC
  • MAC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689059738
UPC: 810689059738
EAN: 0810689059738
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Planar 997-5973-00 Touchscreen is also known as 997-5973-00
