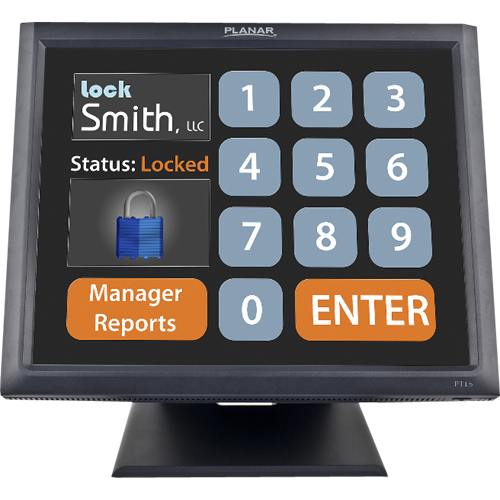

Planar 997-5967-00 Touchscreen

The Planar 997-5967-00 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Planar PT1545 - Planar PT1545R 15" LCD Touchscreen Monitor - 8 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - Adjustable Display Angle - 16.7 Million Colors - 500:1 - 250 Nit - Speakers - USB - VGA - Black - RoHS - 3 Year
  • The XGA lcd touchscreen monitor is perfect for point-of-sale, hospitality, and many other retail applications
  • The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 250 Nit brightness
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Planar PT1545 Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Planar 997-5967-00 Touchscreen
Planar 997-5967-00 Touchscreen Planar 997-5967-00 Touchscreen Planar 997-5967-00 Touchscreen
Planar 997-5967-00 Touchscreen
Planar 997-5967-00 Touchscreen
Planar 997-5967-00 Touchscreen
Planar PT1545 Touchscreen Model Overview
The cost-effective 15" PT1545 touch screen monitors are perfect for retail, POS and hospitality applications. Available in black or white, this inexpensive touch LCD can be easily mounted to a variety of mounting options using the VESA hole pattern on the back of the monitor. The PT1545 series of touch screens feature dual Serial/USB connections and internal power supply. They also come with a 3-year warranty and free 2-day advance replacement.
Planar 997-5967-00 Touchscreen Overview

Easily integrated with a variety of POS, thin client or PC systems, the cost-effective PT1545R touchscreen features a 5-wire resistive touch screen with dual RS-232/USB interface, an internal power supply and a desk stand with -5 to 90° tilt range. No drivers are needed for basic touchscreen operation, but for advanced features, drivers are quickly and easily loaded.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Pixel Pitch:
11.7 mil
Response Time:
8 ms
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Adjustable Display Angle:
Yes
Mount Type:
  • Wall Mountable
  • Arm-mountable
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
20 W
Standby Power Consumption:
3.99 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
12"
Width:
12.8"
Depth:
8"
Weight (Approximate):
9 lb
Miscellaneous
Package Contents:
  • PT1545R Touchscreen LCD Monitor
  • Power Cord, VGA Cable
  • RS-232 Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • TUV-T mark
  • CE
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0727642370581, 0810689059677, 0818224300543, 0999994618493
UPC: 727642370581, 810689059677, 818224300543, 999994618493
EAN: 0727642370581, 0810689059677, 0818224300543, 0999994618493
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Planar 997-5967-00 Touchscreen is also known as 997-5967-00
