Planar 997-4158-01 Touchscreen

Part Number: 997-4158-01
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Screen Surface
Anti-glare

Product Description:

  Planar PT1700MX 17" LCD Touchscreen Monitor - 5:4 - 5 ms - 17" Class - 5-wire Resistive - 1280 x 1024 - SXGA - Adjustable Display Angle - 16.7 Million Colors - 800:1 - 240 Nit - Edge LED Backlight - Speakers - USB - VGA - Black - RoHS - 3 Year
Explore all Planar Parts Accessories
Add to Quote
Planar 997-4158-01 Touchscreen
Planar 997-4158-01 Touchscreen
Planar 997-4158-01 Touchscreen
Planar 997-4158-01 Touchscreen
Planar 997-4158-01 Touchscreen
Planar 997-4158-01 Touchscreen Planar 997-4158-01 Touchscreen Planar 997-4158-01 Touchscreen Planar 997-4158-01 Touchscreen Planar 997-4158-01 Touchscreen

Planar Parts Accessory Model Overview

Products and parts from Planar.
Planar 997-4158-01 Touchscreen Overview
The PT1700MX 17" touch screen monitor is perfect for use in healthcare, retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a 5-wire resistive touch screen and dual serial/USB touch screen interface. Available in black or white, users may use a finger, gloved hand, credit card, pen or stylus to activate the resistive touch screen. The user can easily adjust the monitor from -5° to 90° based on preference. The OSD buttons are located on the side of the monitor to minimize setting changes. The OSD buttons can also be locked for customer-facing applications. Planar has nearly 25 years experience delivering specialty display solutions for the most demanding applications. The PT products include Planar's industry leading 3-Year Customer First™ Warranty featuring FREE 2-Day Advance Replacement. The result is an exceptional, cost-effective touch screen monitor.
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
5 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Adjustable Display Angle:
Yes
Mount Type:
Wall Mountable
Backlight Technology:
Edge LED
Tilt Angle:
-5° to 90°
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
76 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
800:1
Brightness:
240 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive

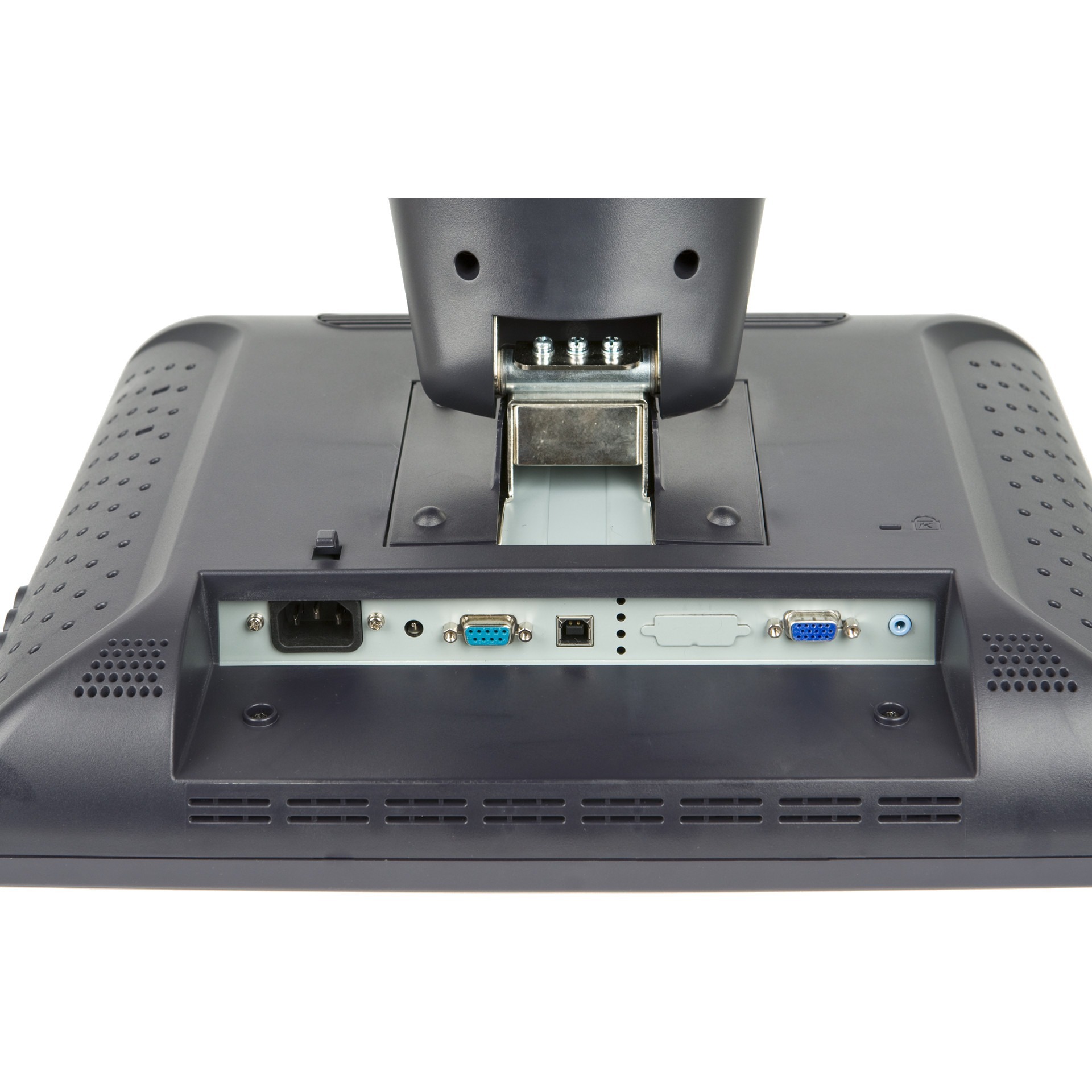

Interfaces/Ports
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Operating Power Consumption:
20.70 W
Standby Power Consumption:
1.50 W
Off-Mode Power Consumption:
600 mW
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Product Color:
Black
Height:
13.3"
Width:
15.8"
Depth:
2.9"
Height with Stand:
14.60"
Width with Stand:
15.80"
Depth with Stand:
8.90"
Weight (Approximate):
13.60 lb
Weight with Stand (Approximate):
17.20 lb
Miscellaneous
Package Contents:
  • PT1700MX Touchscreen LCD Monitor
  • Power Cord
  • VGA Cable
  • RS-232 Cable
  • USB Cable (A to B)
  • Audio-in Cable
  • Driver CD
  • User's Guide
  • Quick Start Guide
Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • CE
Platform Supported:
  • PC
  • Mac
  • Linux
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689002185, 0818214875907
UPC: 810689002185, 818214875907
EAN: 0810689002185, 0818214875907
UNSPSC: 43211903
