Planar 997-3981-00 Touchscreen

The Planar 997-3981-00 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Planar PT1500MX - Planar PT1500MX Touchscreen LCD Monitor - 15" - 5-wire Resistive - 1024 x 768 - 4:3 - 0.3mm - Black
  • The 500:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Planar PT1500MX Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Planar 997-3981-00 Touchscreen
Planar 997-3981-00 Touchscreen Planar 997-3981-00 Touchscreen Planar 997-3981-00 Touchscreen Planar 997-3981-00 Touchscreen
Planar 997-3981-00 Touchscreen
Planar 997-3981-00 Touchscreen
Planar 997-3981-00 Touchscreen
Planar 997-3981-00 Touchscreen

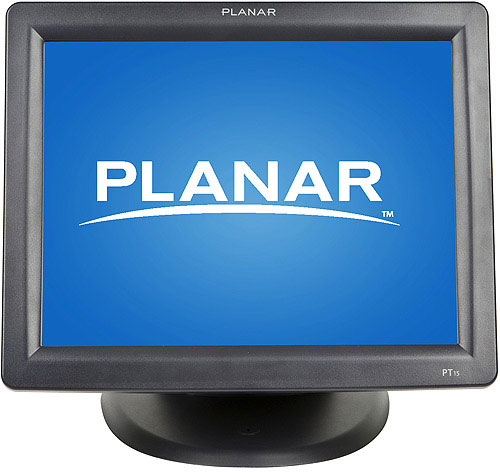

Planar PT1500MX Touchscreen Model Overview
The PT1500MX 15" touch screen monitor is perfect for use in healthcare, retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a 5-wire resistive touch screen and dual serial/USB touch screen interface. Users may use a finger, gloved hand, credit card, pen or stylus to activate the resistive touch screen. The user can easily adjust the monitor from -5° to 90° based on preference. The OSD buttons are located on the side of the monitor to minimize setting changes. The OSD buttons can also be locked for customer-facing applications.
Planar 997-3981-00 Touchscreen Overview

The PT1500MX 15" touch screen monitor perfect for use in healthcare, retail, point-of-sale and hospitality applications. Easily integrated with a variety of POS, thin client or PC systems, the monitor features a 5-wire resistive touch screen and dual serial/USB touch screen interface. The OSD buttons are located on the side of the monitor to minimize setting changes. The OSD buttons can also be locked for customer-facing applications.

Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Screen Surface:
Anti-glare
Response Time:
8 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
140°
Vertical Viewing Angle:
125°
Adjustable Display Angle:
Yes
Mount Type:
  • Wall Mountable
  • Arm-mountable
Tilt Angle:
-5°to90°
Horizontal Frequency:
60.02 Hz
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
500:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
DVI:
No
USB:
Yes
VGA:
Yes
Serial Port:
Yes
Built-in Devices
Built-in Devices:
Speaker
Power Description
Input Voltage:
  • 120 V AC
  • 230 V AC
Operating Power Consumption:
21.10 W
Standby Power Consumption:
1.50 W
Off-Mode Power Consumption:
800 mW
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color:
Black
Height:
11.6"
Width:
14.3"
Depth:
2.4"
Height with Stand:
12.60"
Width with Stand:
14.30"
Depth with Stand:
8.10"
Weight (Approximate):
9.50 lb
Weight with Stand (Approximate):
13 lb
Miscellaneous
Additional Information:

Mount Type: 75mm VESA

Certifications & Standards:
  • UL/c-UL
  • FCC-Class B
  • CE
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689039815, 0993980073730, 4913393102724
UPC: 810689039815, 993980073730
EAN: 0810689039815, 0993980073730, 4913393102724
UNSPSC: 43211903
