Planar 997-2959-00 Touchscreen

Part Number: 997-2959-00
Model: PT1701MU
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
SXGA
Screen Surface
Anti-glare

Product Description:

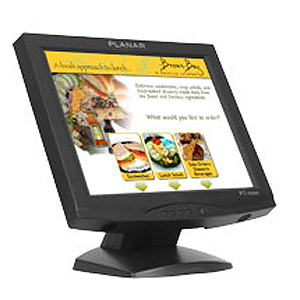

  Planar PT1701MU Touchscreen LCD Monitor - 17" - Capacitive - 4:3 - Black
Explore all Planar PT1701MU Touchscreens
Add to Quote
Planar 997-2959-00 Touchscreen
Planar 997-2959-00 Touchscreen
Planar 997-2959-00 Touchscreen
Planar 997-2959-00 Touchscreen
Planar 997-2959-00 Touchscreen Planar 997-2959-00 Touchscreen Planar 997-2959-00 Touchscreen Planar 997-2959-00 Touchscreen

Planar PT1701MU Touchscreen Model Overview

Ideal for today's retail, POS, or kiosk applications, the PT1701MU features 3M's ClearTek Capacitive touch screen and USB touch screen driver for use in harsh environments which require a more rugged touch screen interface. The PT1701MU features a bright and fast panel combined with a durable deskstand, and is compatible with mounting options using the 100 mm VESA standard.
Planar 997-2959-00 Touchscreen Overview

PT1701MU Touchscreen LCD Monitor is ideal for today's retail, POS, or kiosk applications, the PT1701MU features 3M Capacitive touch screen and USB touch screen driver for use in harsh environments which require a more rugged touch screen interface. The PT1701MU features a bright and fast panel combined with a durable deskstand, and is compatible with mounting options using the 100mm VESA standard.

Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
5 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1280 x 1024
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
800:1
Brightness:
275 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Black
Height:
14.1"
Width:
16.3"
Depth:
2.5"
Height with Stand:
16.20"
Width with Stand:
16.30"
Depth with Stand:
8.30"
Weight (Approximate):
14.70 lb
Miscellaneous
Additional Information:
  • Transmissivity: Up to 88%
  • Kensington Security slot
  • Multi-language display
  • Mount Type: 100mm VESA
Certifications & Standards:
  • UL
  • CSA
  • FCC-B
  • CE
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689029595
UPC: 810689029595
EAN: 0810689029595
UNSPSC: 43211903
