Planar 997-2947-00 Touchscreen

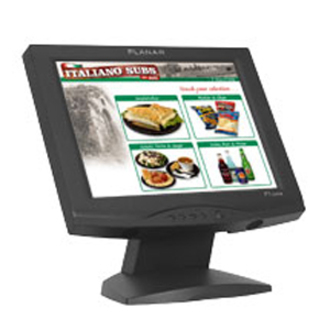

Planar PT1501MU - Touchscreen LCD Monitor - 15" - 5-wire Resistive - 4: 3 - 0.3 mm - Black
Durable, scratch-resistant 3M Capacitive touch screen

Ideal for today"s retail, POS, or kiosk applications, the PT1501MU features 3M's ClearTek Capacitive touch screen and USB touch screen driver for use in harsh environments which require a more rugged touch screen interface. The PT1501MU features a bright and fast panel combined with a durable deskstand, and is compatible with mounting options using the 75 mm VESA standard. The result is an exceptional durable monitor and an excellent value.

Technical Information

  • Touch Screen Type: Capacitive
  • Screen Size: 15" - Active Matrix TFT LCD
  • Screen Surface: Anti-Glare
  • Dot Pitch: 0.297mm
  • Monitor Response Time:
    • 4ms Rise
    • 12ms Fall
  • Mountable: Wall Mountable - VESA
  • Front Panel Controls:
    • Menu Button
    • Select / Auto
    • Brightness Minus
    • Brightness Plus
    • Power Switch
    • Power LED
  • OSD Controls:
    • Brightness
    • Contrast
    • LCD Adjustment
    • Color Temperature
    • ECO Mode
    • Language
    • Other Setup
    • Clock
    • Phase
    • Horizontal Position
    • Vertical Position
    • Smooth
    • OSD Horizontal Position
    • OSD Vertical Position
    • OSD Transparency
    • OSD Time out
    • Volume
    • Mode Message
    • Reset

General Information

  • Manufacturer: Planar
  • Product Name: PT1501MU Touch Screen Monitor

Physical Characteristics

  • Color: Black
  • Dimensions:
    • 12.3" (312mm) x 15.9" (404mm) x 2.2" (56mm) - without Stand
    • 15.3" (389mm) x 15.9" (404mm) x 7.5" (190mm) - with Stand
    • 12.3" (312mm) x 15.9" (404mm) x x 2.2" (56mm) - without Stand
    • 15.3" (389mm) x 15.9" (404mm) x x 7.5" (190mm) - with Stand
  • Weight: 11.4 lb (5.17 kg)
  • Shipping Weight: 16.4lb (7kg)

Interfaces/Ports

  • Interfaces:
    • USB
    • HD DB-15
    • Audio Stereo Jack

Other

  • Package Contents:
    • PT1501MU Touch Screen Monitor
    • Power Adapter
    • Power Cord
    • VGA Signal Cable
    • Audio Cable
    • USB Cable
    • User's Guide
    • Landing Strip
    • Touchscreen Driver Installation CD-ROM
  • Compatibility:
    • Linux
    • Windows 95
    • Windows 98
    • Windows Me
    • Windows NT
    • Windows 2000
    • Windows XP
  • Additional Information:
    • Display Color: 16.7 Million Colors (24-bit)
    • Refresh Rate: 60 Hz to 75 Hz
    • Tilt Range: -5° to 25°
    • Stereo Speakers
    • Horizontal: 120°
    • Vertical: 100°

Agency Approvals

  • Agency Approvals:
    • UL
    • CSA
    • FCC Class B
    • CE
    • TUV/GS
    • TCO '99
    • EPA Energy Star

Environmental Conditions

  • Temperature:
    • 5°C (41°F) to 35°C (95°F) Operating
    • -20°C (-4°F) to 60°C (140°F) Storage
  • Humidity:
    • 80% Operating
    • 80% Storage

Power Description

  • Input Voltage Range: 110 to 220 V AC
  • Power Consumption:
    • 30W
    • 5W - Standby
  • Power Supply: External Power Adapter - Included

Display & Graphics

  • Maximum Resolution: 1024 x 768
  • Brightness: 350 cd/m2
  • Ratio: 400:1 - Contrast Ratio

Warranty

  • Manufacturer Warranty: 3 Year(s)
Brand Planar
Model PT1501MU
