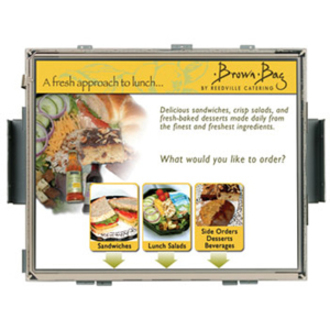

Planar 997-2931-01LF Touchscreen

Part Number: 997-2931-01LF
Model: LA1710RTC
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
17"
Viewable Screen Size
17"
Screen Mode
XGA
Response Time
5 ms

Product Description:

  Planar LA1710RTC 17" Open-frame LCD Touchscreen Monitor - 5 ms - 17" Class - Capacitive - 1024 x 768 - XGA - 800:1 - 300 Nit - USB - VGA - 1 Year
Explore all Planar LA1710RTC Touchscreens
Add to Quote
Planar 997-2931-01LF Touchscreen
Planar 997-2931-01LF Touchscreen
Planar 997-2931-01LF Touchscreen Planar 997-2931-01LF Touchscreen

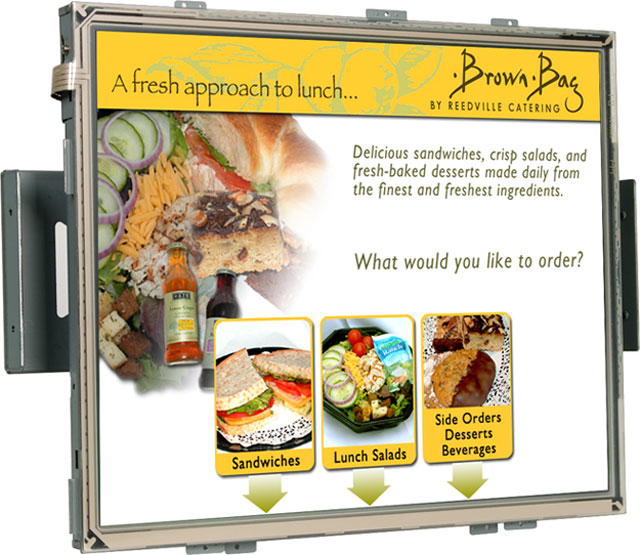

Planar LA1710RTC Touchscreen Model Overview

The LA1710RTC features 3M's ClearTek Capacitive touch screen and USB touch screen driver for use in harsh environments which require a more rugged touch screen interface. These open-frame monitors are ideal for cost-sensitive retail, ticketing and hospitality applications. Fully warranted, the LA1710RTC is ideal for integrators and OEMs.
Planar 997-2931-01LF Touchscreen Overview

The LA1710RTC features 3M's ClearTek Capacitive touch screen and USB touch screen driver for use in harsh environments which require a more rugged touch screen interface. These open-frame monitors are ideal for cost-sensitive retail, ticketing and hospitality applications. Fully warranted the LA1710RTC is ideal for integrators and OEMs

Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
XGA
Response Time:
5 ms
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Contrast Ratio:
800:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
40 W
Standby Power Consumption:
3 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Height:
11.8"
Width:
14.6"
Depth:
1.8"
Weight (Approximate):
11.40 lb
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0810689029311
UPC: 810689029311
EAN: 0810689029311
UNSPSC: 43211903
