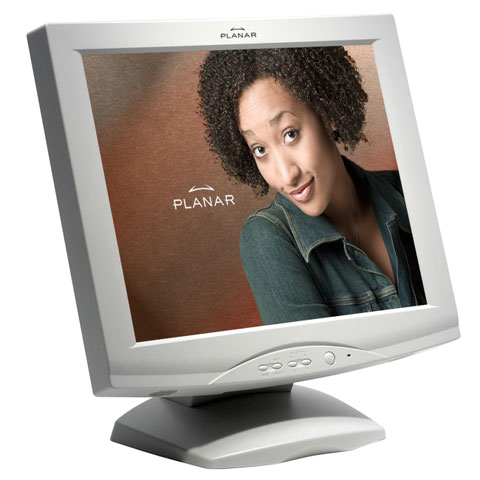

Planar 997-2688-00 Touchscreen

Planar PT191MU - 19" LCD Capacitive Touchscreen with 3M ClearTek, 4x3, 1280x1024, 5ms, 800: 1 contrast ratio, speakers, USB, VGA, white, 3 year warranty
Capacitive touch screen for extra long life and superior visual performance

The Planar 19" PT191MU capacitive touchscreen monitor is perfect for indoor kiosk applications that have a lot of information or multiple viewers at the same time. The capacitive touchscreen technology provides superior visual performance and longer life. This display includes both analog and digital inputs, 2 USB ports and comes standard with USB drivers.

Technical Information

  • Touch Screen Type: Capacitive
  • Screen Size: 19" - Active Matrix TFT LCD
  • Screen Surface: Anti-Glare
  • Dot Pitch: 0.294mm
  • Monitor Response Time: 8ms
  • Mountable: Wall Mountable - VESA
  • Front Panel Controls:
    • Menu button
    • Select / Auto
    • Brightness Minus
    • Brightness Plus
    • Power LED
    • Power Switch
  • OSD Controls:
    • Auto-Adjustment
    • Contrast
    • Brightness
    • Horizontal Position
    • Vertical Position
    • Clock
    • Phase
    • Display Mode
    • OSD Off-Time
    • Language
    • Sharpness
    • Reset
    • Volume
    • Mute
    • Input Select
    • Color Setting
    • Color Adjustment-Red
    • Color Adjustment-Blue
    • Color Adjustment-Green

General Information

  • Manufacturer: Planar
  • Product Name: PT191MU Touch Screen Monitor

Physical Characteristics

  • Color: White
  • Dimensions:
    • 15" (381mm) x 17.4" (442mm) x 2.7" (69mm) - without Stand
    • 17.2" (437mm) x 17.4" (442mm) x 9" (229mm) - with Stand
    • 15" (381mm) x 17.4" (442mm) x x 2.7" (69mm) - without Stand
    • 17.2" (437mm) x 17.4" (442mm) x x 9" (229mm) - with Stand
  • Weight: 21 lb (9.53 kg)
  • Shipping Weight: 28.6lb (13kg)

Interfaces/Ports

  • Interfaces:
    • 2 x USB Rear
    • 1 x HD DB-15 Rear
    • 1 x DVI-D (Digital) Rear
    • 1 x Audio Stereo Jack Rear

Other

  • Package Contents:
    • PT191MU Touch Screen Monitor
    • Power Adapter
    • Power Cord
    • VGA Signal Cable
    • DVI-D Cable
    • Audio-In Cable
    • USB Upstream Cable
    • User's Guide
    • Landing Strip
    • Touch Screen Driver Installation CD-ROM
  • Compatibility:
    • Linux
    • Windows 95
    • Windows 98
    • Windows Me
    • Windows NT
    • Windows 2000
    • Windows XP
  • Additional Information:
    • Display Color: 16.7 Million Colors (24-bit)
    • Integrated Stereo Speaker
    • Tilt Range: -5° to 45°
    • Refresh Rate: 56 Hz to 75 Hz
    • Horizontal: 170°
    • Vertical: 170°

Agency Approvals

  • Agency Approvals:
    • UL
    • CSA
    • FCC Class B
    • CE

Display & Graphics

  • Maximum Resolution: 1280 x 1024
  • Brightness: 250 cd/m2
  • Ratio: 1000:1 - Contrast Ratio

Power Description

  • Input Voltage Range: 110 to 220 V AC
  • Power Consumption: 60W
  • Power Supply: Power Adapter - Included

Warranty

  • Manufacturer Warranty: 3 Year(s)
Brand Planar
Model PT191MU
