Planar 997-2687-00 Touchscreen

The Planar 997-2687-00 Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Planar PT191MU - Planar PT191MU Touchscreen LCD Monitor - 19" - Capacitive - 4:3 - Black
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • Capacitive touchscreens must be impelled with a stylus carrying an electrical charge or by the touch of human skin
Read More

Need a different version? See all Planar PT191MU Touchscreens

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Planar 997-2687-00 Touchscreen
Planar 997-2687-00 Touchscreen Planar 997-2687-00 Touchscreen Planar 997-2687-00 Touchscreen
Planar 997-2687-00 Touchscreen
Planar 997-2687-00 Touchscreen
Planar 997-2687-00 Touchscreen

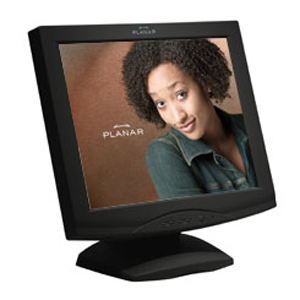

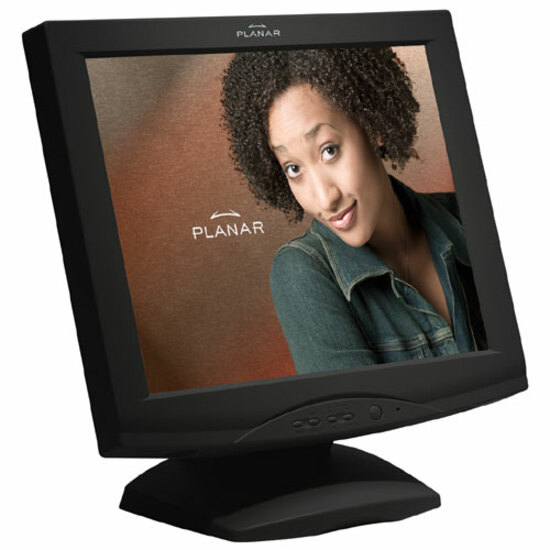

Planar PT191MU Touchscreen Model Overview
The Planar 19" PT191MU capacitive touchscreen monitor is perfect for indoor kiosk applications that have a lot of information or multiple viewers at the same time. The capacitive touchscreen technology provides superior visual performance and longer life. This display includes both analog and digital inputs, 2 USB ports and comes standard with USB drivers.
Planar 997-2687-00 Touchscreen Overview

Ideal for today's retail, POS, or kiosk applications, the 19" PT191MU features 3M's ClearTek Capacitive touchscreen and USB touchscreen driver for use in harsh environments which require a more rugged touch screen interface. The PT191MU features a bright and fast panel combined with a durable deskstand, and is compatible with mounting options using the 100mm VESA standard.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
SXGA
Screen Surface:
Anti-glare
Response Time:
5 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
Wall Mountable
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
75 Hz
Color Supported:
16.7 Million Colors
Color Depth:
24-bit
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
DVI:
Yes
USB:
Yes
Built-in Devices
Built-in Devices:
USB Hub
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Color:
Black
Height:
15"
Width:
17.4"
Depth:
2.7"
Height with Stand:
17.20"
Width with Stand:
17.40"
Depth with Stand:
9"
Weight (Approximate):
21 lb
Miscellaneous
Package Contents:
  • PT191MU Touch Screen Monitor
  • 1 x Analog VGA D-sub 15-pin video display cable
  • 1 x DVI 24-pin cable
  • 1 x standard power cable
  • 1 x audio cable
  • 1 x USB cable
Additional Information:
  • Refresh Rate: 56-75 Hz
  • Swivel stand
  • Kensington Security Slot
  • Multi-language OSD
  • Reliable and sturdy construction for use in demanding environments
  • OSD lockout feature available
  • Customized versions also available for large OEM opportunities
Certifications & Standards:
  • UL
  • CSA
  • FCC-B
  • CE
Platform Supported:
  • PC
  • Mac
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
China
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0810689026877
UPC: 810689026877
EAN: 0810689026877
UNSPSC: 43211903
