Features:
Fanless

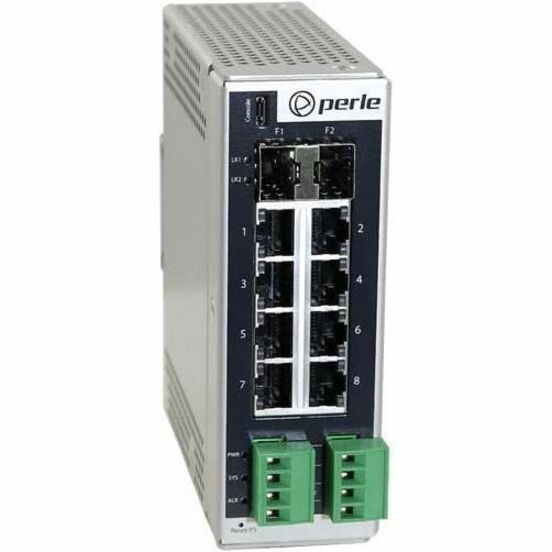

Perle 7017270 Data Networking
Part Number:
7017270
Model:
Parts
Technical Information
Interfaces/Ports
Total Number of Network Ports:
8
Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE
- 2 x 2.5 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
Network Technology:
1000Base-X
I/O Expansions
Total Number of Expansion Slots:
2.0
Expansion Slot Type:
SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Networking Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.1D
- IEEE 802.1w
- IEEE 802.1s
- IEEE 802.1Q
- IEEE 802.1p
- IEEE 802.1x
- IEEE 802.3ad
- IEEE 802.1ab
- IEEE 802.3bt
- IEEE 802.3at
Management & Protocols
Manageable:
Yes
Reliability
MTBF:
408 Hour
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
450 W
Input Voltage:
- 44 V DC
- 57 V DC
Power Source:
Power Supply
Power Consumption:
480 W
Physical Characteristics
Form Factor:
- DIN Rail Mountable
- Wall Mountable
Height:
5.1"
Width:
5.1"
Depth:
1.8"
Weight (Approximate):
1.06 lb
Miscellaneous
Application/Usage:
- Industrial
- Camera
- Enterprise
- Network
