Peerless-AV PRGS-UNV Products

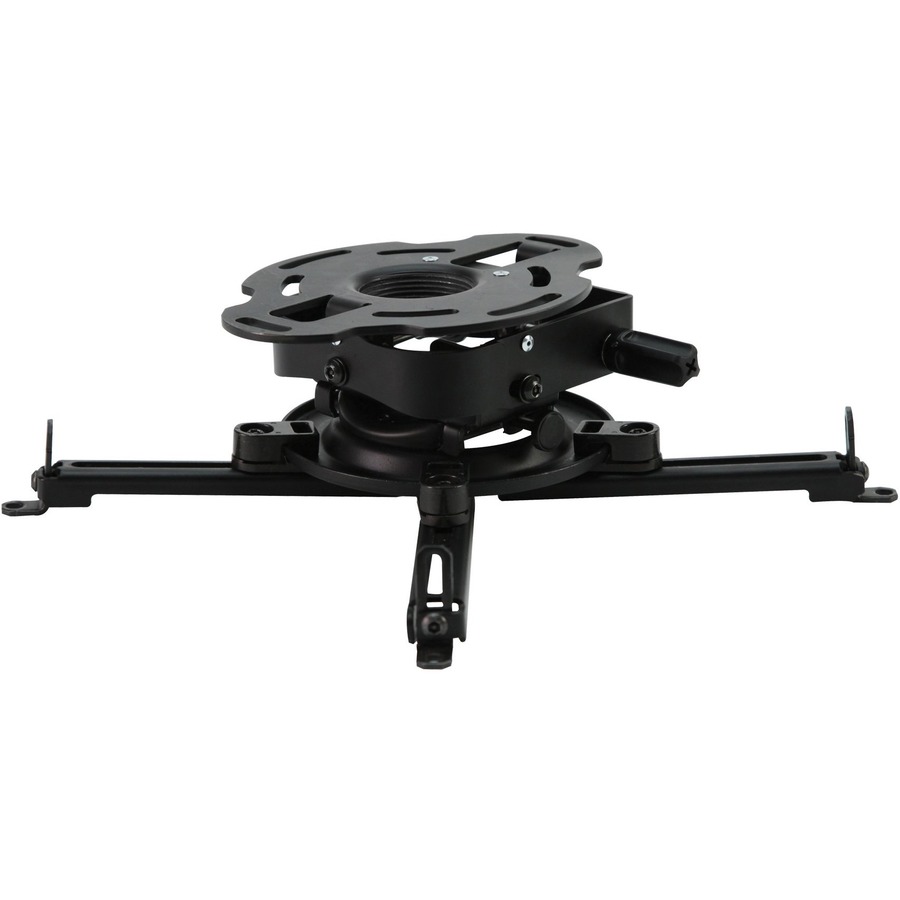

Peerless-AV - CEILING MOUNT KIT FOR PRG
  • Two adjustment knobs to control tilt and roll image alignment and accurately hold image position, virtually eliminating any sag or drift
  • Achieve pin-point image alignment by simply turning the adjustment knobs by hand or with a Phillips screwdriver
  • Pre-installed security screws provide tilt and roll locking ability to prevent tampering and adjustments
  • Quick-release thumbscrew enables easy-glide removal of the projector in and out of the mount
  • Low profile design allows projector to be flush with the ceiling
  • Open frame assembly provides easy cable routing through the projector mount itself
  • Quick release mechanism to easily service projector
  • Specifications: Pitch: +15°/-20° Roll: ±5° Swivel: 360° (during installation)
  • Spider® Universal Adaptor Plate extends up to 17.63" (448 mm) to fit most projector models
Read More

Need a different version? See all Peerless-AV Parts Products

$140.91
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Peerless-AV PRGS-UNV Products
Peerless-AV PRGS-UNV Products
Peerless-AV PRGS-UNV Products Peerless-AV PRGS-UNV Products
Peerless-AV Parts Products Model Overview
Products and parts from Peerless-AV.
Peerless-AV PRGS-UNV Products Overview
The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
Product Information
Device Supported:
Projector
Maximum Load Capacity:
50 lb
Maximum Adjustable Height:
17.63"
Maximum Adjustable Width:
17.63"
Maximum Adjustable Depth:
4.63"
Features:
  • Tilt
  • Swivel
  • Adjustable Width
  • Adjustable Depth
  • Cable Management
  • Tamper Resistant
  • Quick Release Mechanism
Height Adjustable:
Yes
Physical Characteristics
Product Color:
Silver
Finishing:
Powder Coated
Height:
8.5"
Width:
8.5"
Depth:
3.6"
Weight (Approximate):
4.27 lb
Miscellaneous
Application/Usage:
Ceiling
Additional Information:
  • Mounting Pattern: 448 X 448mm (17.63 X 17.63")
  • Quick release mechanism to easily service projector
Compatibility:

Projectors with M8 mounting screws require ACC-M8RI inserts

Certifications & Standards:

UL

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
Taiwan
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0735029281863, 5201103208279
UPC: 735029281863
EAN: 0735029281863, 5201103208279
UNSPSC: 31162313
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Peerless-AV PRGS-UNV Products is also known as PRGSUNV
