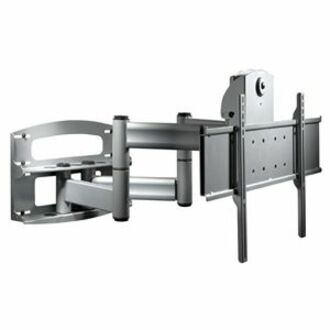

Peerless-AV PLAV70-UNL Mounting Hardware and Stands

Part Number: PLAV70-UNL
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$909.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
Flat Panel Display
Maximum Load Capacity
200 lb
Minimum Screen Size Supported
42"
Maximum Screen Size Supported
60"

Product Description:

  Mounting Hardware and Stands, Peerless-AV, Mount, Security Universal Articulating Dual-Arm Wall Mount With Vertical Adjustment For 42"-60" Flat Panel Screens
Explore all Peerless-AV Parts Products
Add to Quote
Peerless-AV PLAV70-UNL Mounting Hardware and Stands
Peerless-AV PLAV70-UNL Mounting Hardware and Stands

Peerless-AV Parts Products Model Overview

Products and parts from Peerless-AV.
Peerless-AV PLAV70-UNL Mounting Hardware and Stands Overview

Articulating Dual-Arm with Vertical Adjustment is designed to handle the heaviest screens, It is self-lubricating bushings enable your screen to smoothly articulate, while adjustable tilt and pivot allow you to position your screen for the optimal viewing angle. Swing, tilt and extend your plasma or LCD screen, even in and out of recessed cubby holes and custom frames with the vertical adjustment feature that provides the capability to raise or lower your screen for a perfectly aligned installation.

Product Information
Device Supported:
Flat Panel Display
Maximum Load Capacity:
200 lb
Minimum Screen Size Supported:
42"
Maximum Screen Size Supported:
60"
Mount Pattern:
Universal
Physical Characteristics
Color Family:
Silver
Product Color:
Silver
Mounting Pattern:
730 x 433
Product Material:
Steel
Weight (Approximate):
63 lb
Miscellaneous
Package Contents:
  • PLAV70-UNLP-S Articulating Dual-Arm with Vertical Adjustment
  • 1 x Wall plate
  • 1 x Tilt-roll assembly
  • 1 x Arm assembly
  • 2 x Wall support arm axle
  • 3 x Vinyl trim
  • 8 x Screw bolt (M10 x 1.5 x 15 mm)
  • 1 x Nylon washer (.505 x .75 x .062" )
  • 1 x Tilt adjustment knob
  • 1 x Carriage bolt (3/8"-16 x 3.25" )
  • 4 x Delrin washer (1.525 x 2 x .062" )
  • 2 x Socket head cap screw (#8-32 x .375" )
  • 6 x Plastic finishing cap
  • 2 x Holding pin
  • 2 x Retainer plug
  • 8 x Wood screw (5/16 x 3")
  • 8 x Washer (.250 x 1 x .068" )
  • 1 x Allen wrench (9/64")
  • 8 x Cable management clips
  • 8 x Cable tie
  • 2 x Polyester mesh sleeve (36")
  • 1 x Allen wrench (6 mm)
  • 1 x Adapter bracket
  • 2 x Shallow adapter bracket
  • 2 x Deep adapter bracket
  • 1 x Allen wrench
  • Security Adapter Bracket Fasteners:
  • 4 x (M5 x 25 mm)
  • 6 x (M4 x 12 mm)
  • 4 x (M4 x 25 mm)
  • 4 x (M5 x 12 mm)
  • 4 x (M6 x 12 mm)
  • 4 x (M6 x 25 mm)
  • 4 x (I.D. 5.6 mm)
  • 6 x Multi-washer
  • 4 x (I.D. 8.7 mm)
  • 4 x (M6 x 20 mm)
  • 4 x (M6 x 30 mm)
  • 6 x (M8 x 15 mm)
  • 4 x (M8 x 40 mm)
  • 4 x (M8 x 25 mm)
Additional Information:
  • Pivot: 180 degree
  • Roll: +/-7 degree to level screen horizontally at any position
  • Vertical Adjustment located within reach behind screen (+/-.79")
  • Innovative and exceptional functionality
  • Roll feature allows for easy screen leveling
  • Folds flat against the wall
  • Cord management keeps cords organized and out of sight
  • Dual-arm construction
  • Anti-lockout feature prevents joint binding
  • Extends out to 31.2" , retracts to 4.5"
  • Mounts to two wood studs or concrete
  • 17" high mounting inserts
Compatibility:
Plasma and LCD Flat Panel Screens: 42" - 60"
Certifications & Standards:

UL

Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0735029243366
UPC: 735029243366
EAN: 0735029243366
UNSPSC: 31162301
