Peerless-AV ESA763PU Products

Part Number: ESA763PU
Model: Parts
Add to My Shopping List Add to Compare
$802.00

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Device Supported
Flat Panel Display
Maximum Load Capacity
200 lb
Minimum Screen Size Supported
42"
Maximum Screen Size Supported
60"

Product Description:

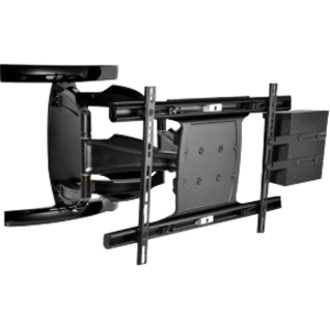

  UNIVERSAL ARTICULATING MOUNT
Explore all Peerless-AV Parts Products
Add to Quote
Peerless-AV ESA763PU Products
Peerless-AV ESA763PU Products
Peerless-AV ESA763PU Products Peerless-AV ESA763PU Products

Peerless-AV Parts Products Model Overview

Products and parts from Peerless-AV.
Peerless-AV ESA763PU Products Overview

PeerAir Wireless Articulating Outdoor Wall Mount is a weather-resistant, corrosion free outdoor wireless package that delivers plug-and-play, Full HD 1080p wireless content streaming or game play to any outdoor space without the need for costly drilling and pulling of signal cables through walls, floors or ceilings. This full-featured wireless mounting solution articulates and tilts for optimum viewing experience from virtually anywhere in the outdoor entertainment area. Incorporated in to the mount is reverses IR functionality that enables remote components to be controlled at the site of the display. Ships virtually pre-assembled with plug-and-play set-up, it's the easiest way to get Full HD content outdoors without the extra expense and hassle from running cables. And it's only from Peerless-AV.

Product Information
Device Supported:
Flat Panel Display
Maximum Load Capacity:
200 lb
Minimum Screen Size Supported:
42"
Maximum Screen Size Supported:
60"
Maximum Adjustable Depth:
27.85"
Features:
  • Tilt
  • Swivel
  • Cable Management
Durability:
  • Weather Resistant
  • Corrosion Resistant
Physical Characteristics
Color Family:
Black
Product Color:
Black
VESA Mount Compatible:
Yes
Mounting Pattern:
600 x 400
Product Material:
ABS Plastic
Height:
20.23"
Width:
36.75"
Depth:
4.85"
Weight (Approximate):
57.30 lb
Miscellaneous
Package Contents:
  • Outdoor Articulating Wall Mount
  • Outdoor Weather Resistant Enclosure
  • Wireless Transmitter Unit with Stand
  • Wireless Receiver Unit
  • Remote Control
  • 2 x 12V 2A Power Supply
  • IR Repeater (Receiver)
  • IR Emitter Cable (Transmitter)
  • 15-Pin D-Sub to RCA Female Component
  • Bideo Breakout Cable
  • 2.5ft (.75m) HDMI Cable
  • 4 x Mounting Brackets (2 short, 2 long)
  • 4ft (1.2m) Cable Management Sheath
  • 3-Tap Grounded Outlet
  • Removable Sub-Panel
  • Mounting Hardware
  • Instruction Manual
Additional Information:
  • Audio: 2 Ch. Linear PCM, Analog, 48kHz 16-bit ADC
  • Audio Input: 1 x 3.5mm Audio Jack (Transmitter)
  • Audio Output: 1 x 3.5mm Audio Jack (Receiver)
  • WiFi Frequency: 5.15~5.25GHz
  • Latency: < 30ms Latency
  • Power: Voltage 120 VAC, Consumption: 12V 2A
  • Universal Mounting Pattern (W x H) 687 x 439mm (27.047" x 17.283")
  • Ability to support content from four sources devices while having only one output cable connected to the TV
  • Screen can be held as close to the wall as 4.43" (113mm) or be extended as far as 27.55" (700mm)
  • Tilt functionality allows for +15°/-5° without the use of tools for easy viewing angle adjustment
  • Offers smooth 90° swivel motion
  • 16" Double stud wall plate with up to 4.5" (114mm) or horizontal adjustment
  • Capable of Portrait or Landscape orientation
Assembly Required:
No
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0735029282563
UPC: 735029282563
EAN: 0735029282563
UNSPSC: 31162301
