Peerless-AV DS-MBZ642L Products

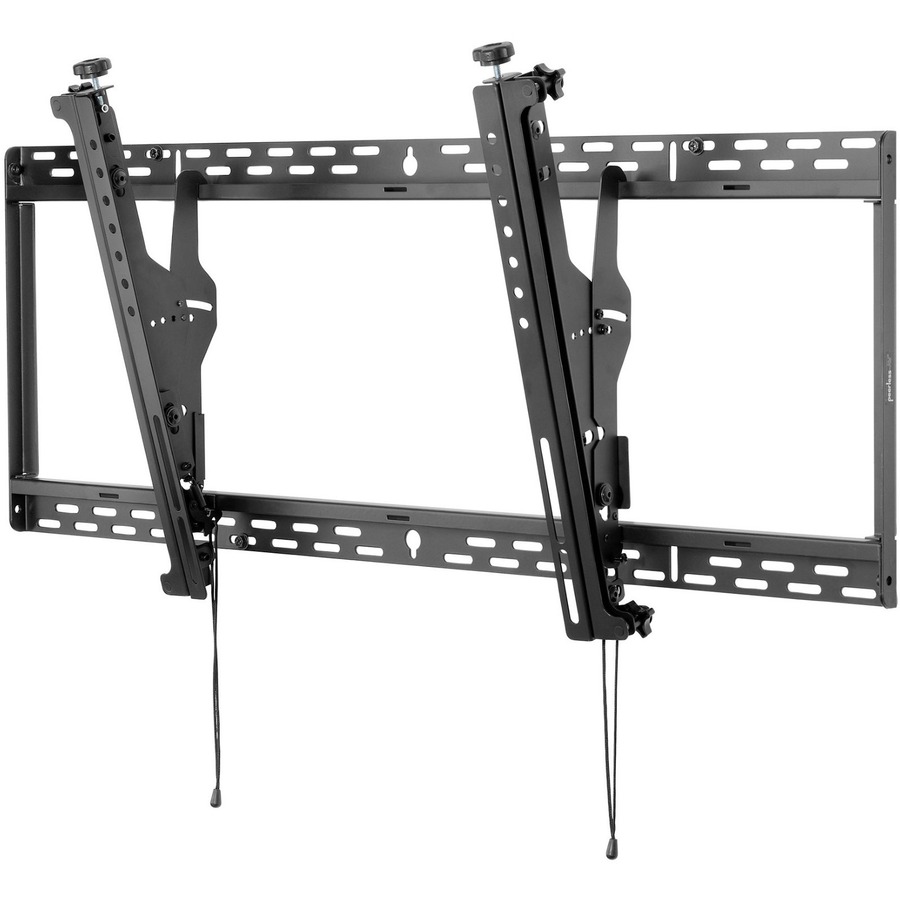

Peerless-AV - DIGITAL MENU BOARD MOUNT - LANDSCAPE, FOR 40" - 42" DISPAYS
  • Tool-less vertical adjustment on each universal display adapter bracket for post install leveling and height adjustment fine tuning
  • Tool-less four corner depth adjustment aligns the displays on the same plane and helps alleviate issues with wall imperfections.
  • Included security hardware deters tampering and theft
  • DS-MBZ642L landscape configuration for 40"-42" displays with mounting hole patterns 880 x 400mm (34.65"W x 15.75"H)
  • Easy hang wall plate allows for a single person install
  • The quick connect latch automatically engages the wall plate for a speedy setup
  • Simple one-to-one ordering process
  • Open wall plate reduces wall interference
Read More

Need a different version? See all Peerless-AV Parts Products

$209.00
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Peerless-AV DS-MBZ642L Products
Peerless-AV DS-MBZ642L Products
Peerless-AV DS-MBZ642L Products Peerless-AV DS-MBZ642L Products
Peerless-AV Parts Products Model Overview
Products and parts from Peerless-AV.
Peerless-AV DS-MBZ642L Products Overview
Peerless-AV's quick service restaurant (QSR) Menu Board Mount is designed to create a seamless mounting surface through connecting wall plates. Continuous and fixed tilt options allow all displays to be tilted at the same angle with ease, creating a flawless alignment. The QSR Menu Board Mount allows for tool-less height adjustment and fourcorner depth adjustment to alleviate issues with wall imperfections and fine-tuning. The kickstand feature holds the bottom of the display away from the wall during cable connection, reducing installation time and cost. Available in landscape and portrait design options, Peerless-AV offers a one-to-one ordering process, making the QSR Menu Board Mount the perfect mounting solution.
Product Information
Device Supported:
Menu Board
Maximum Load Capacity:
100.31 lb
Minimum Screen Size Supported:
40"
Maximum Screen Size Supported:
42"
Features:
  • Tilt
  • Sturdy
  • Increlock
  • Anti-theft
  • Tamper Resistant
  • Cable Management
  • Adjustable Depth
  • Vertical Adjustment
  • Quick Connect
Height Adjustable:
Yes
Physical Characteristics
Product Color:
Black
Finishing:
Powder Coated
VESA Mount Compatible:
Yes
Mounting Pattern:
800 x 100
Height:
19.5"
Width:
35"
Depth:
3.1"
Weight (Approximate):
10.58 lb
Miscellaneous
Package Contents:
  • Wall Plate
  • Adaptor Rails
  • Mounting Hardware
Additional Information:
Mounting Pattern: 880 X 400mm (34.65 X 15.75")
Compatibility:
Peerless-AV QSR Menu Board
Assembly Required:
Yes
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Country of Origin:
United States
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0735029301028
UPC: 735029301028
EAN: 0735029301028
UNSPSC: 31162313
