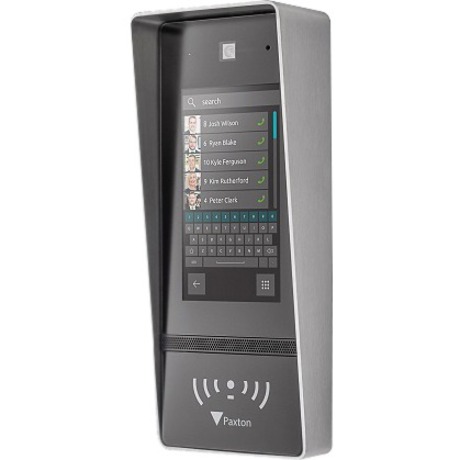

Paxton 337-610-US Access Control System

Paxton - Paxton Access Net2 Entry - Touch Panel, Surface Mount with Rain Hood - Black Door - Proximity, Key Code - LCD - Ethernet - Surface Mount
  • Vandal resistant, standard and touch screen panel available
  • IK10 rated VR panel for ultimate impact resistance
  • Pan/tilt camera functionality to capture an angled view
  • Reads EM, Paxton and MIFARE® token technology
  • Built-in keypad and RFID reader
  • Comes in flush, surface mount or rain hood options
  • IP and PoE technology for easy expansion
  • SIP compatible
Read More
$2,378.49
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Paxton Parts Accessory Model Overview
Products and parts from Paxton.
Paxton 337-610-US Access Control System Overview

The Net2 Entry panel is a robust door entry panel incorporating both door entry and access control functions. It is powered using power over Ethernet (PoE) and communicates with the other elements of the system using IPv6, providing 'plug and play' installation. Each panel is associated with a Net2 Entry control unit which is the interface to the door hardware.

The panel is equipped with a keypad and a proximity token reader. A resident can use either the keypad or a token to gain entry. Installers gain access to the menu options using an engineer code or an engineer token.

Net2 software is used to administer the access control functions.

Decide how the units are to be connected. You can either run your own wired network or (with the owner's permission) share the buildings existing data network. If using the owners network, the system uses IPv6 protocol and PoE (Power over Ethernet) so the network must support this switch type.

Technical Information
Identification Method:
  • Proximity
  • Key Code
Application/Usage:
Door
Display & Graphics
Display Screen Type:
LCD
Network & Communication
Ethernet Technology:
Ethernet
Physical Characteristics
Form Factor:
Surface Mount
Color:
Black
Height:
12.3"
Width:
5"
Depth:
2.7"
Miscellaneous
Package Contents:
  • Paxton Microfibre Cloth 200mm x 150mm
  • Fitting kit - Entry Touch Panel
  • Fastener - M4 x 16 Torx Panhead A4 SS
  • Label - Product Serial Number Label 27x10mm
  • Label - Tech Support International
  • Label - Void if Seal is Broken, 80x30mm
  • Sales Code Label, 40x25mm, Paxton MK2 Entry US & EU
  • Label - FCC Statement 40x25mm
  • Entry Touch Panel - Rain Hood Back Box
  • Entry Touch Panel - General Assembly
Country of Origin:
United Kingdom
Item Numbers
UNSPSC: 46171600, 46171619
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Paxton 337-610-US Access Control System is also known as PAX-337610US
