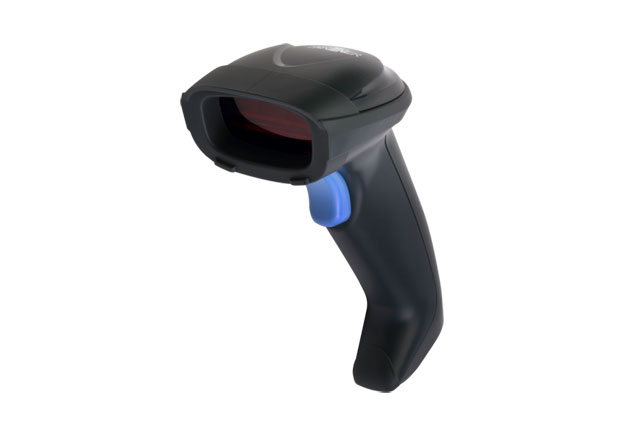

PartnerTech WS-100 – Barcode Scanner – 1D
Part Number:
9601202000002
Model:
WS-100
PartnerTech WS-100 Barcode Scanner Model Overview
WS-100 2D Barcode Scanner is designed for seamless daily use, ensuring speed and accuracy in a variety of business environments. With advanced scanning capabilities, it efficiently reads both 1D and 2D barcodes, making data entry a breeze. Featuring a Constant Active Signal mode, this handheld scanner allows for continuous scanning without the need for a trigger, enhancing productivity and reducing user fatigue. Built tough with an ergonomic design, the WS-100 is the perfect solution for retail, hospitality, and manufacturing sectors, promoting efficiency while minimizing errors.
Key features:
Specifications:
Key features:
- Powerful image sensor for optimal scanning performance
- Lightweight and rugged design suitable for various applications
- Supports both Trigger and Constant Active Signal mode for different user needs
- 2D barcode readable directly from displays, depending on the size/width
Specifications:
- Performance:
- Light Source: Aiming green LED + red illumination LED
- Scan Method: CMOS area sensor, 752 x 480 pixels
- Scan Rate: Up to 60 fps
- Depth of Field: 305 mm / 13 mil
- Symbologies:
- 1D: EAN-13, UPC-A, Code 39, and others
- 2D: PDF417, QR Code, Data Matrix
- Physical:
- Weight: 126g (Cable 76g)
- Dimensions: 70(W) x 85(D) x 175(H) mm
- Environmental:
- Operating Temperature: -30 to 60°C / -22 to 140°F
- Storage Temperature: -40 to 70°C / -40 to 158°F
- Humidity: 5-90% (non-condensing)
- Durability:
- Drop Test: 18 m / 6 ft onto concrete surface
- Ingress Protection Rating: IP42
Brand
PartnerTech
Model
WS-100
Scanner Capability
1D
