Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Fixed Focal Length:
1.95 mm
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.

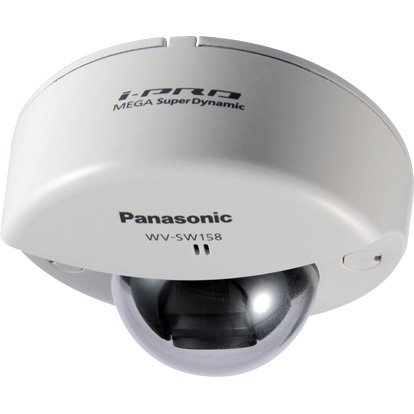

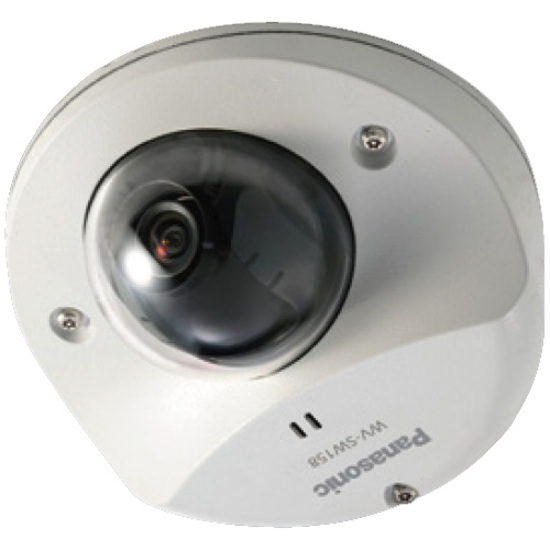

Panasonic WVSW158 Security Camera Overview
The WV-SW158, Panasonic's i-Pro Smart HD nework dome camera, is designed with signature Panasonic high reliability and features Mega Super Dynamic technology that delivers 128x broader dynamic range. Face Detection and Mega Super Dynamic range technologies ensure that clear and well-focused facial images are always captured for consistently intelligle IDs. The ONVIF compliant SW158 provides 1080p HD images at up to 30 IPS and, because the camera is powered by Panasonic UniPhier technology, concurrent H.264 and JPEG streams are transmitted and simultaneous real time monitoring and HD recording is possible. SW158's wide coverage capability ensures precise recording in targeted areas with a horizontal range of 100 and a vertical of 81. This, in combination with the Privacy Zone that covers up to two provate areas such as windows or entrances/exits makes SW158 ideal where surveillance is needed in complicated site locations.
Technical Information
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
- ATW1
- AWC
- ATW2
Minimum Illumination:
0.1 lux
Color Supported:
- Monochrome
- Color
Field of View:
62° to 100°
Effective Camera Resolution:
3.1 Megapixel
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Audio
Audio Formats:
- AAC
- ADPCM
Image Formats:
JPEG
Maximum Image Resolution:
1920 x 1080
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.95 mm
Lens Included:
Yes
Maximum Aperture:
f/2.2
Digital Zoom:
4x
Minimum Focus Distance:
19.69"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP/IP
- UDP/IP
- HTTP
- HTTPS
- FTP
- SMTP
- RTP
- DNS
- DDNS
- NTP
- SNMP
- DHCPv6
- DHCP
- ICMP
- ARP
- IGMP
- UPnP
- MLD
- RTP/RTCP
- RTSP
Remote Management:
Yes
Controls/Indicators
Status Indicators:
- OSD
- Link
- Access
- Access
Physical Characteristics
Form Factor:
Dome
Durability:
- Vandal Resistant
- Water Resistant
- Dust Resistant
Color:
Light Gray
Height:
1.9"
Diameter:
4.3"
Weight (Approximate):
12.35 oz
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
- Day/Night
- Motion Detection
- Digital Noise Reduction
- 3D Digital Noise Reduction
- Face Detection
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- Super Dynamic Full HD Vandal Resistant Dome Network Camera
- Installation Guide
- Important Safety Instructions
- 3 x Fixing Screws (M4 x 8 mm)
- Installation Template Label
- Mount Bracket
- Tamperproof Screw Bit
- Waterproof Tape
System Requirements:
- Supported OS: Microsoft Windows 8, Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
- Web Browser:Windows Internet Explorer 10.0 (32 bit), Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit),Windows Internet Explorer 7.0 (32 bit)
Certifications & Standards:
- IP66
- IEC60529
- UL (UL60950-1)
- C-UL (CAN/CSA C22.2 No.60950-1)
- CE
- IEC60950-1
- FCC Part15 Class A
- ICES-003 Class A
- EN55022 Class B
- EN55024
Ingress Protection Rating:
IP66
Security Features:
SSL
Platform Supported:
PC
Item Numbers
GTIN:
0641676457707, 0641676457721, 0650415543779, 0885170128620, 4010869231800, 4902704542014, 6941683304167
UPC:
641676457707, 641676457721, 650415543779, 885170128620
EAN:
0641676457707, 0641676457721, 0650415543779, 0885170128620, 4010869231800, 4902704542014, 6941683304167
UNSPSC:
46171610
