Panasonic WVSP306 Security Camera

Panasonic WV-SPN311 Security System Products A newer version of this item is available.
It is replaced by the Panasonic WV-SPN311 Security System Products.
Panasonic WV-SP306 - Box IP Camera, 1.3MP, H.264, D/N, ABF ABS, SDHC/SD memory card slot
  • Features MOS sensor that is used to produce smooth and sharp images
  • Up to 1280 x 960 resolution for surveillance in real-time
Read More
Discontinued See Replacement
Add to Quote

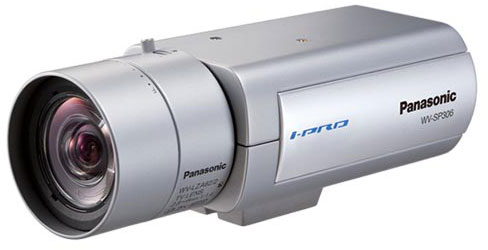

Panasonic WV-SP306 Security Camera Model Overview
The Panasonic WV-SP306 is part of the i-PRO 3rd generation i-PRO SmartHD Series. With the WV-SP306, you can experience 720p HD images at 1,280 x 960 up to 30 frames per second realized by the newly developed 1.3 Megapixel high sensitivity MOS Sensor. Multiple H.264 (High Profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording at a lower bandwidth by UniPhier, Panasonic's proprietary System LSI platform. Wide Dynamic Range and Adaptive Black Stretch (ABS) technologies on the WV-SP306 deliver wider dynamic range compared to conventional cameras. The WV-SP306's Face Wide Dynamic Range technology ensures clear images of the face, while the Face detection function detects the position of the human face and the information is sent by XML or video stream.
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Maximum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Video
Video Formats:
  • H.264
  • MPEG-4
Maximum Video Resolution:
1280 x 960
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Maximum Image Resolution:
1280 x 960
Lens
Digital Zoom:
4x
Focus Modes:
  • Adjustable
  • Manual
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv6
  • TCP/IP
  • UDP/IP
  • HTTP
  • RTP
  • FTP
  • SMTP
  • DNS
  • NTP
  • SNMP
  • DHCPv6
  • ICMPv6
  • IPv4
  • RTSP
  • RTP/RTCP
  • DHCP
  • DDNS
  • UPnP
  • IGMP
  • ICMP
  • ARP
Controls/Indicators
Status Indicators:

OSD

Power Description
Maximum Power Consumption:
4.40 W
Physical Characteristics
Height:
2.6"
Width:
3"
Depth:
5.2"
Weight (Approximate):
14.46 oz
Miscellaneous
Features:
  • Motion Detection
  • Digital Noise Reduction
  • Face Detection
Package Contents:
  • HD Network Camera WV-SP306
  • CD-ROM
  • Installation Guide
  • Code Label
  • Power Cord Plug
  • Safety Wire Plate for Ceiling
  • Safety Wire Lug for Wall
  • 2 x Wire Lug Fixing Screws (M2.5 x 8)
System Requirements:
  • Supported OS: Microsoft Windows 7 Professional 64 bit/32 bit, Microsoft Windows Vista Business SP1 32 bit, Microsoft Windows XP Professional SP3
  • Supported Browser: Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
Compatibility:

NTSC

Certifications & Standards:
  • UL (UL60065)
  • FCC (Part15 ClassA)
  • C-UL (CAN/CSA C22.2 No.60065)
  • DOC (ICES003 ClassA)
Platform Supported:
PC
Item Numbers
GTIN: 0885170008618
UPC: 885170008618
EAN: 0885170008618
UNSPSC: 46171610
