Full specifications (PDF)
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Maximum Illumination:
0 lux
Color Supported:
- Color
- Monochrome

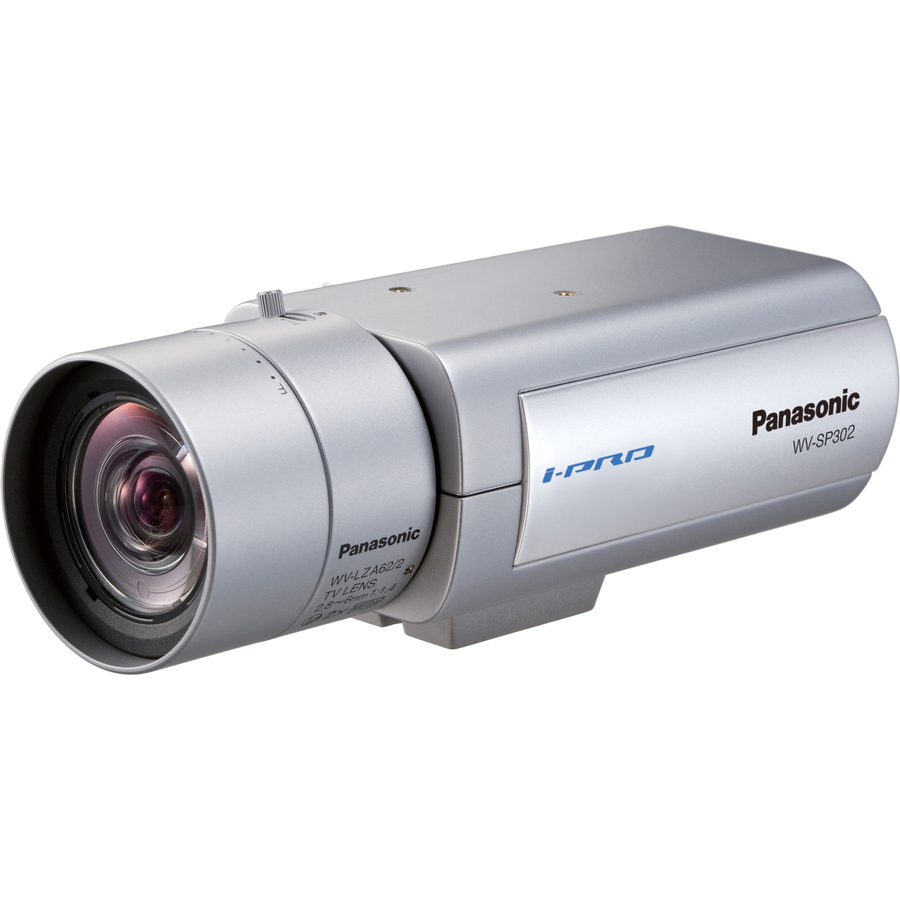

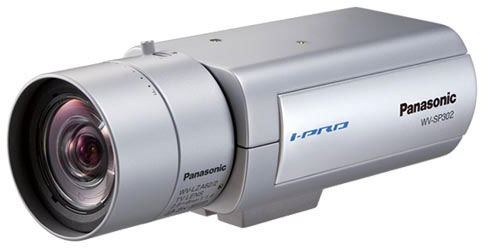

Panasonic WV-SP302 Security Camera Model Overview
The WV-SP302 network camera is part of the i-PRO 3rd generation i-PRO SmartHD Series. Experience super high resolution at SVGA/800x600 created by the newly developed 1.3 Megapixel high sensitivity MOS Sensor. Multiple H.264 (High Profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording at a lower bandwidth by UniPhier, Panasonic's proprietary System LSI platform. Wide Dynamic Range and Adaptive Black Stretch (ABS) technologies deliver wider dynamic range compared to conventional cameras and Face Wide Dynamic Range technology ensures clear images of the face, while the Face detection function detects the position of the human face and the information is sent by XML or video stream.
Display & Graphics
Video
Video Formats:
- H.264
- MPEG-4
Maximum Video Resolution:
800 x 600
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Maximum Image Resolution:
800 x 600
Lens
Digital Zoom:
4x
Focus Modes:
Adjustable
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv6
- TCP/IP
- UDP/IP
- HTTP
- RTP
- FTP
- SMTP
- DNS
- NTP
- SNMP
- DHCPv6
- ICMPv6
- IPv4
- RTSP
- RTP/RTCP
- DHCP
- DDNS
- UPnP
- IGMP
- ICMP
- ARP
Controls/Indicators
Status Indicators:
OSD
Power Description
Maximum Power Consumption:
3.40 W
Physical Characteristics
Height:
2.6"
Width:
3"
Depth:
5.2"
Weight (Approximate):
13.76 oz
Miscellaneous
Features:
- Motion Detection
- Digital Noise Reduction
Package Contents:
- WV-SP302 SVGA/800 x 600 H.264 Network Camera
- CD-ROM
- Installation Guide
- Code Label
- Power Cord Plug
- Safety Wire Plate for Ceiling
- Safety Wire Lug for Wall
- 2 x Wire Lug Fixing Screws (M2.5 x 8)
System Requirements:
- Supported OS: Microsoft Windows 7 Professional 64 bit/32 bit, Microsoft Windows Vista Business SP1 32 bit, Microsoft Windows XP Professional SP3
- Supported Browser: Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
Compatibility:
NTSC
Certifications & Standards:
- UL (UL60065)
- FCC (Part15 ClassA)
- C-UL (CAN/CSA C22.2 No.60065)
- DOC (ICES003 ClassA)
Platform Supported:
PC
Item Numbers
GTIN:
0616174228791, 0885170008595
UPC:
616174228791, 885170008595
EAN:
0616174228791, 0885170008595
UNSPSC:
46171610
