- Color
- Monochrome

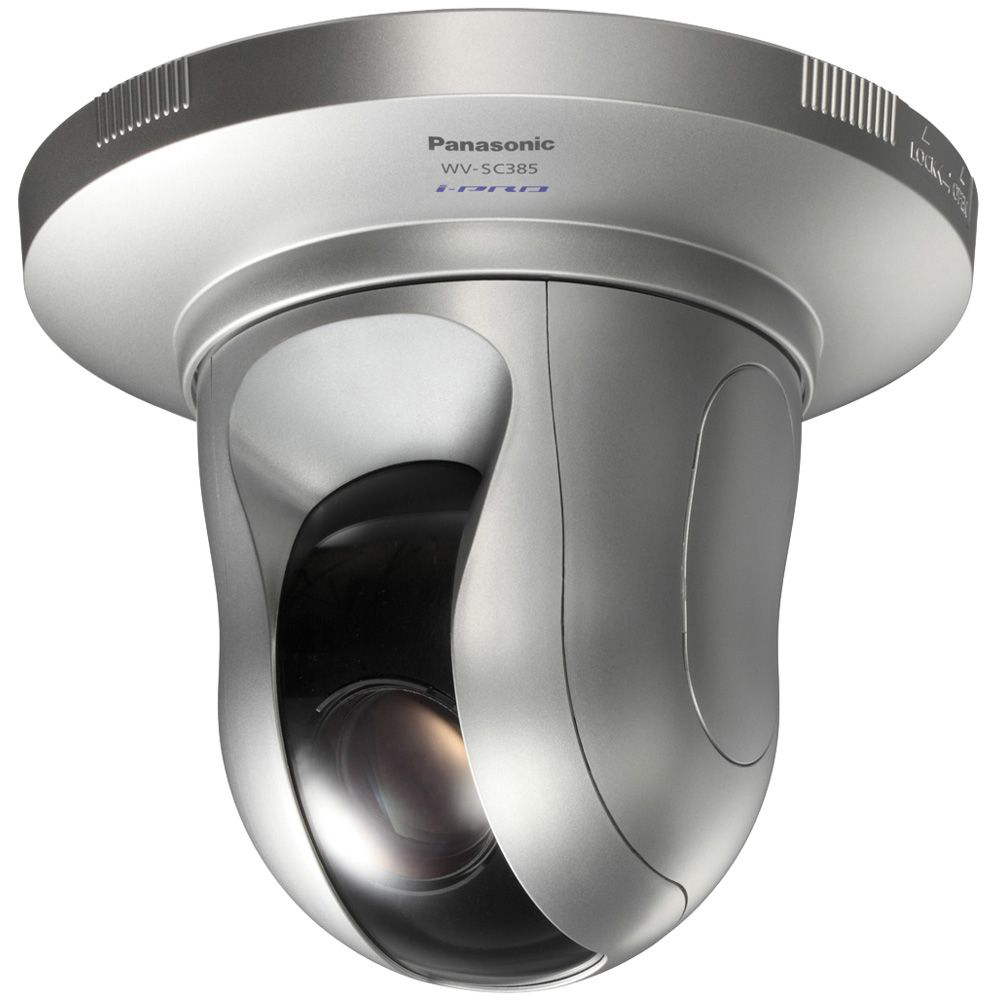

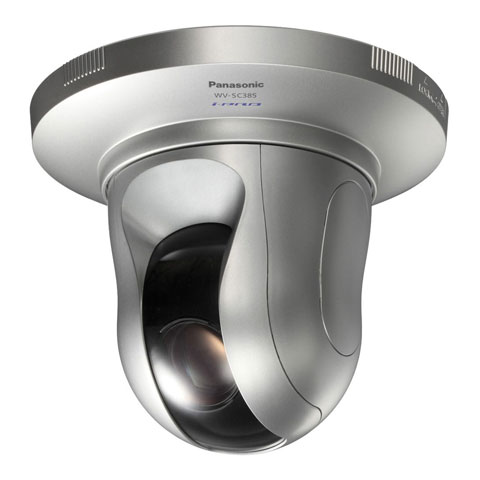

The i-PRO SmartHD WV-SC385 model is a Super Dynamic HD network dome camera that provides feature-rich pan-tilt-zoom control, auto-tracking of 720p high-definition (HD) images and full-frame 1280x960-pixel images at up to 30 images per second. It provides multiple H.264 (High profile) and JPEG video streams for simultaneous real-time monitoring and high-resolution recording. Pan-tilt-zoom (PTZ) control features include a 360-degree map shot that provides the full 360-degree field of view, separated into eight thumbnail images taken at 45-degree intervals. Clicking on any thumbnail easily directs the PTZ camera.
The WV-SC385 dome camera uses Panasonic's UniPhier® LSI chip (H.264 high-profile format) to combine HD video and real-time video streaming at a lower data size. A new 1.3-megapixel MOS image sensor enables high sensitivity and lower power consumption. To increase user system options, the camera is Open Network Video Interface (ONVIF)-compliant, while system migration is more easily facilitated with the H.264 or MPEG-4 selectable format. Super Dynamic and Adaptive Black Stretch (ABS) technologies combine to deliver 128x wider dynamic range than conventional cameras. Face Super Dynamic ensures clear images of faces, and a face-detection function detects the position of human faces and sends the information by XML or video stream.
- H.264
- MPEG-4
- MJPEG
- IPv4
- TCP/IP
- UDP/IP
- HTTP
- RTSP
- RTP
- RTP/RTCP
- FTP
- SMTP
- DHCP
- DNS
- DDNS
- NTP
- SNMP
- IPv6
- HTTPS
- DHCPv6
- UPnP
OSD
- Digital Noise Reduction
- Digital Image Stabilization
- Motion Detection
- Face Detection
- Super Dynamic HD Dome Network Camera
- CD-ROM
- Installation Guide
- Code Label
- Camera Mount Bracket (W/Safety Wire)
- 2 x Camera Fixing Screw
- Decorative Cover
- Power Cable Plug
- Supported OS: Microsoft Windows 7 Professional 64 bit/32 bit, Microsoft Windows Vista Business SP1 32 bit, Microsoft Windows XP Professional SP3
- Supported Browser: Windows Internet Explorer 8.0 (32 bit) (Microsoft Windows 7 Professional 64 bit/32 bit), Windows Internet Explorer 7.0 (Microsoft Windows Vista Business SP1 32 bit), Microsoft Internet Explorer 6.0 SP3 (Microsoft Windows XP Professional SP3)
NTSC
- IEC 60068-2-75
- IP66
- IEC60529
- C-UL (CAN/CSA C22.2 No.60065)
- DOC (ICES003 ClassA)
- UL (UL60065)
- FCC (Part15 ClassA)
