Recording Formats:
HD
HD Recording:
Yes
Panasonic WV-SW559 Security Camera
Part Number:
WV-SW559
Model:
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.

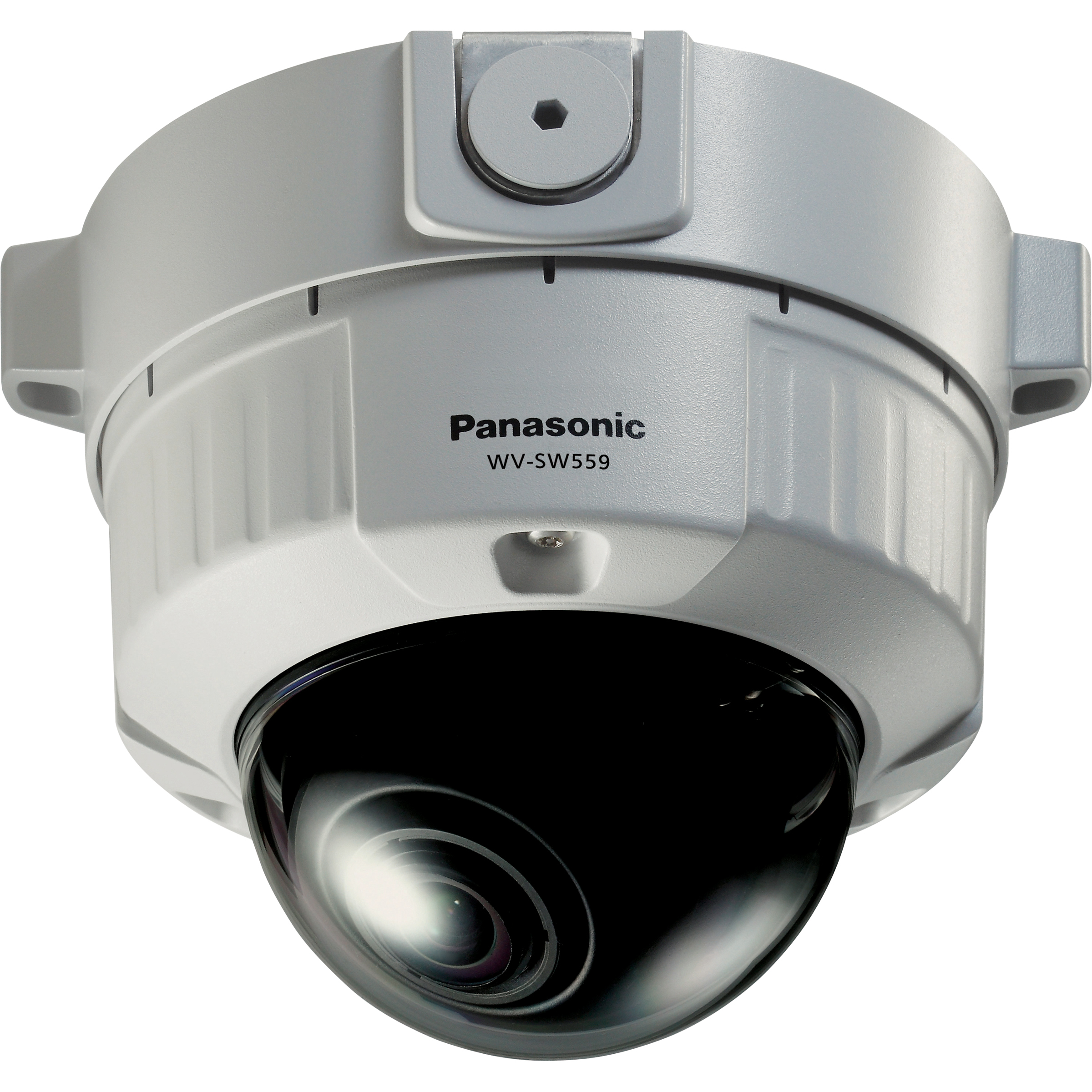

Panasonic WV-SW559 Security Camera Overview
The Panasonic WV-SW559 vandal-resistant dome is part of a series of 1080p network video surveillance cameras that simultaneously deliver both full HD images and 360p images. Enclosed in a IP66-rated water- and dust-resistant dome, the camera uses a 2.8-10mm 3.6x varifocal auto-iris lens. Panasonic's UniPhier® S newest generation LSI processor provides simultaneous cropping of whole and part images, lower bandwidth storage requirements, more VIQS zones, dual H.264 streaming capability and overall higher-level functionality. VIQS (variable image quality on specified areas), combined with efficient compression, enables network bandwidth reduction of 50 percent by decreasing the image quality for less important areas in a video frame (such as the sky), while retaining image quality for critical parts of the view. Face detection analytics detect the position of a human face and send the information by video stream. Face Super Dynamic Range ensures clear face images. Auto back focus (ABF) allows easy installation and stable focus in color and black-and-white modes.
Technical Information
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Maximum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Field of View:
24.2° to 86.6°
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Maximum Image Resolution:
2048 x 1536
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Minimum Aperture:
f/1.3
Maximum Aperture:
f/3
Optical Zoom:
3.6x
Digital Zoom:
4x
Focus Modes:
- Automatic
- Manual
Minimum Focus Distance:
11.81"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv6
- TCP/IP
- UDP/IP
- HTTP
- RTP
- FTP
- SMTP
- DNS
- NTP
- SNMP
- DHCPv6
- ICMPv6
- IPv4
- RTSP
- RTP/RTCP
- DHCP
- DDNS
- UPnP
- IGMP
- ICMP
- ARP
- HTTPS
Remote Management:
Yes
Physical Characteristics
Durability:
- Shock Resistant
- Water Resistant
- Dust Resistant
- Vandal Resistant
Color:
Light Gray
Height:
5.7"
Width:
7.5"
Diameter:
6.5"
Weight (Approximate):
3.53 lb
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
- Motion Detection
- Digital Noise Reduction
- Face Detection
- Day/Night
- SD Card Local Storage
- Built-in OSD Function
- 3D Digital Noise Reduction
- Privacy Masking
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
- Full HD Vandal Resistant Network Camera
- Installation Guide
- CD-ROM
- Code Label
- 4P Alarm Cable
- Camera Attachment
- 2P Power Cable
- 5 x Fixing Screws (M4 x 8 mm)
- Base Cover
- Mount Bracket
- Bit for Tamperproof Screw
- Waterproof Tape
System Requirements:
- Supported OS: Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
- Supported Browser: Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
Certifications & Standards:
- UL (UL60950-1)
- FCC (Part15 ClassA)
- C-UL (CAN/CSA C22.2 No.60950-1)
- DOC (ICES003 ClassA)
- IP66
- IEC60529
- 50 J (IEC 60068-2-75)
- IK10 (IEC 62262)
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Platform Supported:
PC
Item Numbers
GTIN:
0885170061866, 0885170166837, 4010869240390, 4902704847188
UPC:
885170061866, 885170166837
EAN:
0885170061866, 0885170166837, 4010869240390, 4902704847188
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Panasonic WV-SW559 Security Camera is also known as
PAN-WVSW559
