Panasonic WV-SW558 Security Camera

Part Number: WV-SW558
Model:
Discontinued Need Assistance?
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recording Formats
HD
HD Recording
Yes
Image Sensor Type
MOS
Image Sensor Size
1/3"

Product Description:

  FULL HD VANDAL RES. IP CAMERA SUPER DYNAMIC,3.1MP MOS

Panasonic Parts Accessory Model Overview

Products and parts from Panasonic.

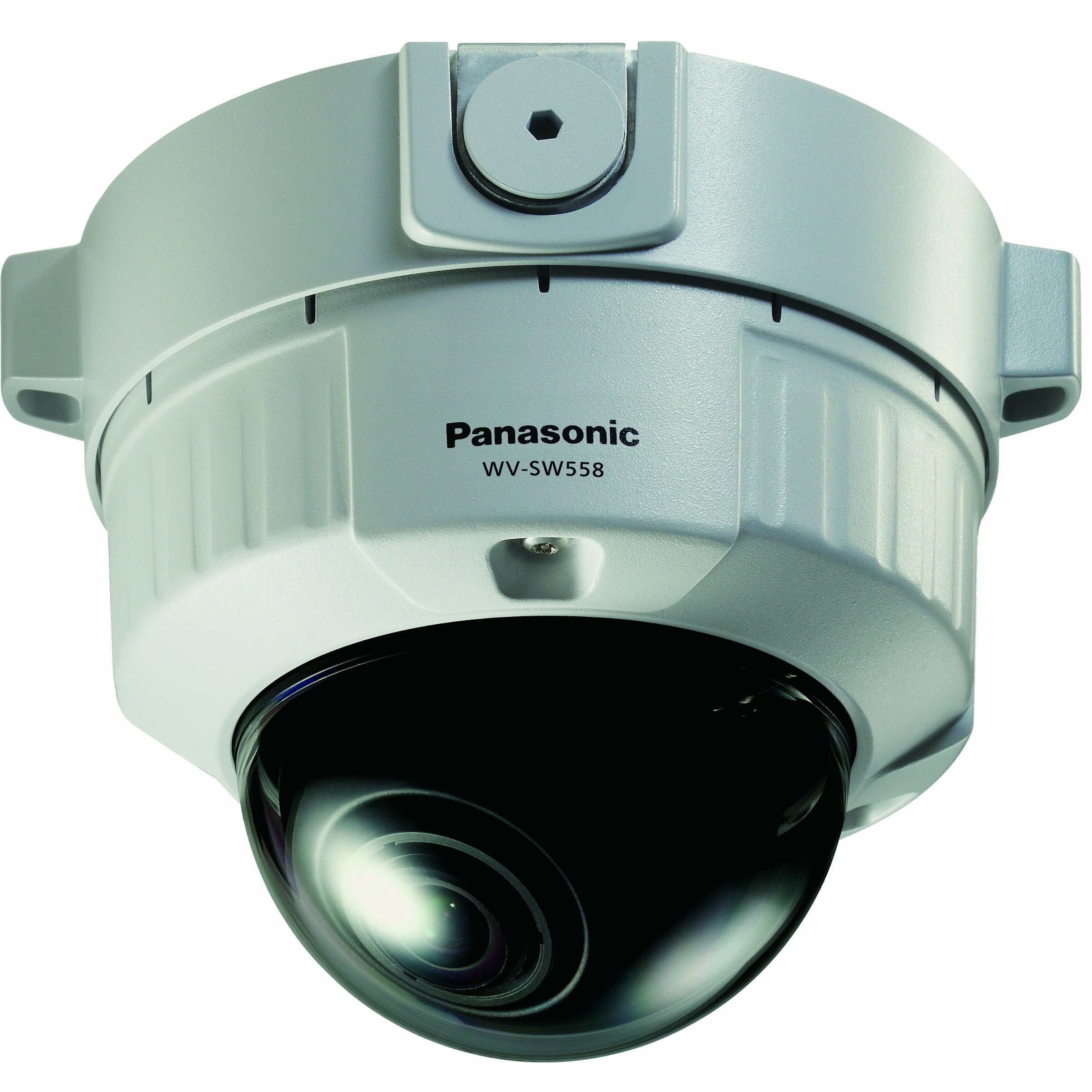

Panasonic WV-SW558 Security Camera Overview

The Panasonic WV-SW558 vandal-resistant dome is part of a series of 1080p network video surveillance cameras that simultaneously deliver both full HD images and 360p images. Enclosed in a IP66-rated water- and dust-resistant dome, the camera uses a 2.8-10mm 3.6x varifocal auto-iris lens. Panasonic's UniPhier® S newest generation LSI processor provides simultaneous cropping of whole and part images, lower bandwidth storage requirements, more VIQS zones, dual H.264 streaming capability and overall higher-level functionality. VIQS (variable image quality on specified areas), combined with efficient compression, enables network bandwidth reduction of 50 percent by decreasing the image quality for less important areas in a video frame (such as the sky), while retaining image quality for critical parts of the view. Face detection analytics detect the position of a human face and send the information by video stream. Face Super Dynamic Range ensures clear face images.

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
Auto
Maximum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Field of View:
24.2° to 86.6°
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Maximum Image Resolution:
2048 x 1536
Lens
Lens Type:
Varifocal
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Minimum Aperture:
f/1.3
Maximum Aperture:
f/3
Optical Zoom:
3.6x
Digital Zoom:
4x
Focus Modes:
  • Automatic
  • Manual
Minimum Focus Distance:
11.81"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv6
  • TCP/IP
  • UDP/IP
  • HTTP
  • RTP
  • FTP
  • SMTP
  • DNS
  • NTP
  • SNMP
  • DHCPv6
  • ICMPv6
  • IPv4
  • RTSP
  • RTP/RTCP
  • DHCP
  • DDNS
  • UPnP
  • IGMP
  • ICMP
  • ARP
  • HTTPS
Remote Management:
Yes
Controls/Indicators
Status Indicators:

OSD

Physical Characteristics
Durability:
  • Shock Resistant
  • Water Resistant
  • Dust Resistant
  • Vandal Resistant
Color:
Light Gray
Height:
5.7"
Width:
7.5"
Diameter:
6.5"
Weight (Approximate):
3.53 lb
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
  • Motion Detection
  • Digital Noise Reduction
  • Face Detection
  • Day/Night
  • SD Card Local Storage
  • Privacy Masking
  • Built-in OSD Function
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • Full HD Vandal-Resistant Network Camera
  • Installation Guide
  • CD-ROM
  • Code Label
  • 4P Alarm Cable
  • Camera Attachment
  • 2P Power Cable
  • 5 x Fixing Screws (M4 x 8 mm)
  • Base Cover
  • Mount Bracket
  • Bit for Tamperproof Screw
  • Waterproof Tape
System Requirements:
  • Supported OS: Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
  • Supported Browser: Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
Certifications & Standards:
  • UL (UL60950-1)
  • FCC (Part15 ClassA)
  • C-UL (CAN/CSA C22.2 No.60950-1)
  • DOC (ICES003 ClassA)
  • IP66
  • IEC60529
  • 50 J (IEC 60068-2-75)
  • IK10 (IEC 62262)
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Platform Supported:
PC
Item Numbers
GTIN: 0885170061873, 4010869240383
UPC: 885170061873
EAN: 0885170061873, 4010869240383
UNSPSC: 46171610
