Recording Formats:
HD
HD Recording:
Yes
Fixed Focal Length:
1.95 mm
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.

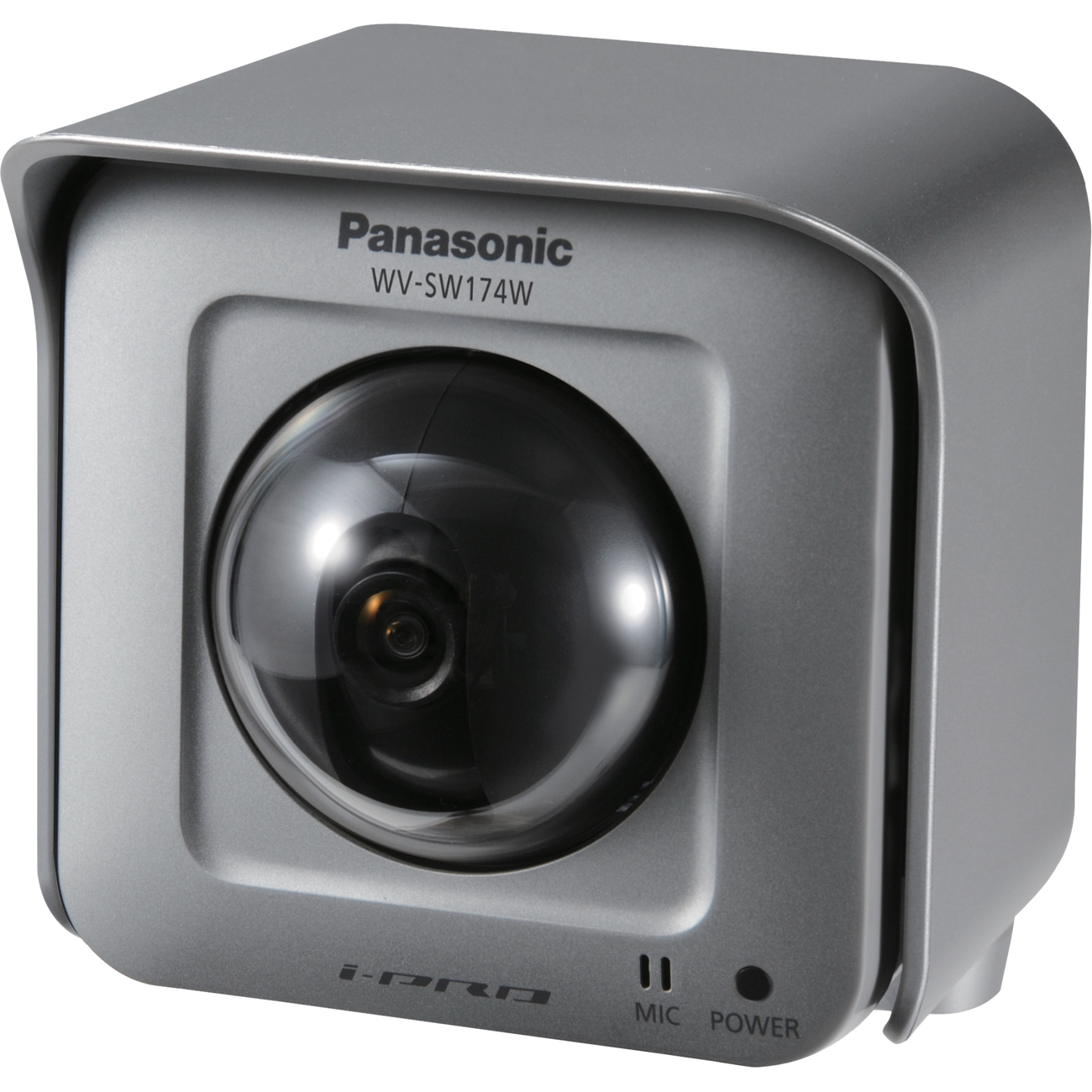

Panasonic WV-SW174W Security Camera Overview
The WV-SW174W is a compact, wireless, pan-tilt network camera perfect for installations where cost-effectiveness is necessary without compromising performance.
Technical Information
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/4"
White Balance Modes:
Auto
Minimum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Tilt:
10° to -45°
Swivel:
-47.5° to 47.5°
Field of View:
68° to 85°
Video
Video Formats:
H.264
Maximum Video Resolution:
1280 x 960
Maximum Frame Rate:
30 fps
Image Formats:
JPEG
Maximum Image Resolution:
1280 x 960
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.95 mm
Lens Included:
Yes
Maximum Aperture:
f/2.2
Digital Zoom:
8x
Minimum Focus Distance:
19.69"
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired & Wireless
Wireless Technology:
Wi-Fi
Wireless LAN Standard:
IEEE 802.11b/g/n
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv6
- TCP/IP
- UDP/IP
- HTTP
- RTP
- FTP
- SMTP
- DNS
- NTP
- SNMP
- DHCPv6
- ICMPv6
- IPv4
- RTSP
- RTP/RTCP
- DHCP
- DDNS
- UPnP
- IGMP
- ICMP
- ARP
- HTTPS
- MLD
Remote Management:
Yes
Physical Characteristics
Durability:
- Water Resistant
- Dust Resistant
Color:
Silver
Height:
3.9"
Width:
3.9"
Depth:
3.3"
Weight (Approximate):
13.05 oz
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
- Motion Detection
- Digital Noise Reduction
- Face Detection
- Day/Night
- 3D Digital Noise Reduction
- Privacy Masking
- SD Card Local Storage
- Built-in OSD Function
Indoor/Outdoor:
Outdoor
Package Contents:
- HD Outdoor Pan/Tilt Wireless Network Camera
- Installation Guide
- CD-ROM
- Flexible Stand
- Connector Cover
- Sunshade
- Foam Strip
- Power Cable Plug
- AC Adaptor
- AC Cord
- Extension Cord
System Requirements:
- Supported OS: Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP SP3
- Supported Browser: Windows Internet Explorer 9.0 (32 bit), Windows Internet Explorer 8.0 (32 bit), Windows Internet Explorer 7.0 (32 bit), Microsoft Internet Explorer 6.0 SP3
Certifications & Standards:
- DOC (ICES003 ClassA)
- FCC Part15C
- IP55 (IEC60529)
Ingress Protection Rating:
IP55
Security Features:
- WPA/WPA2-PSK (TKIP/AES)
- WEP (64 bit/128 bit)
Platform Supported:
PC
Item Numbers
GTIN:
0803982968685, 0885170086838
UPC:
803982968685, 885170086838
EAN:
0803982968685, 0885170086838
UNSPSC:
46171610
