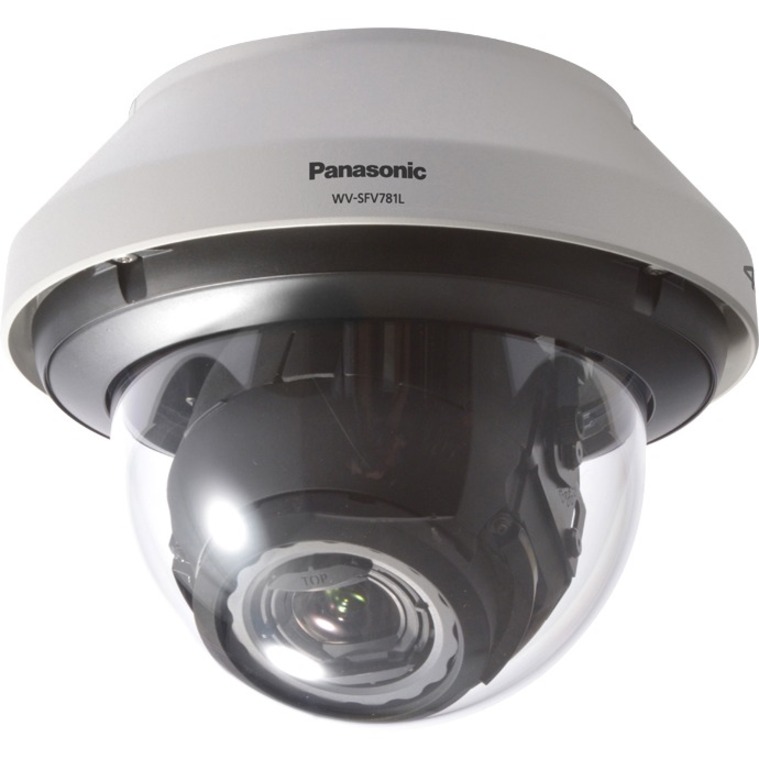

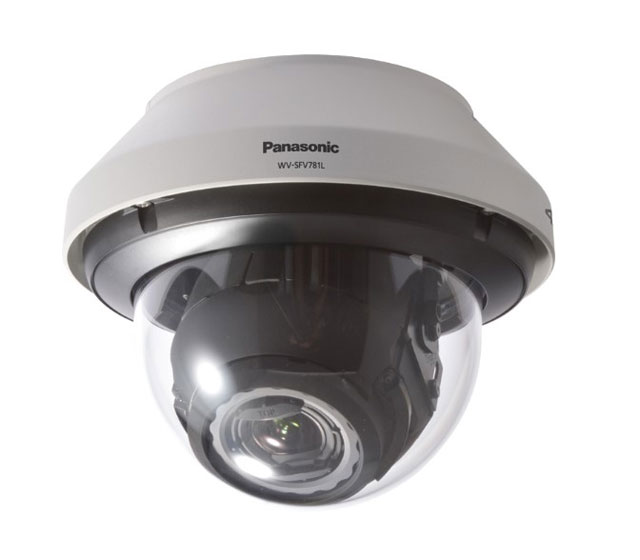

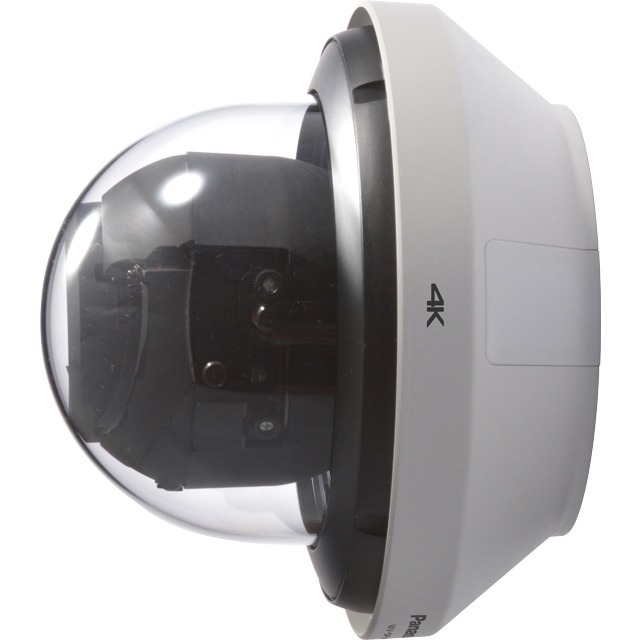

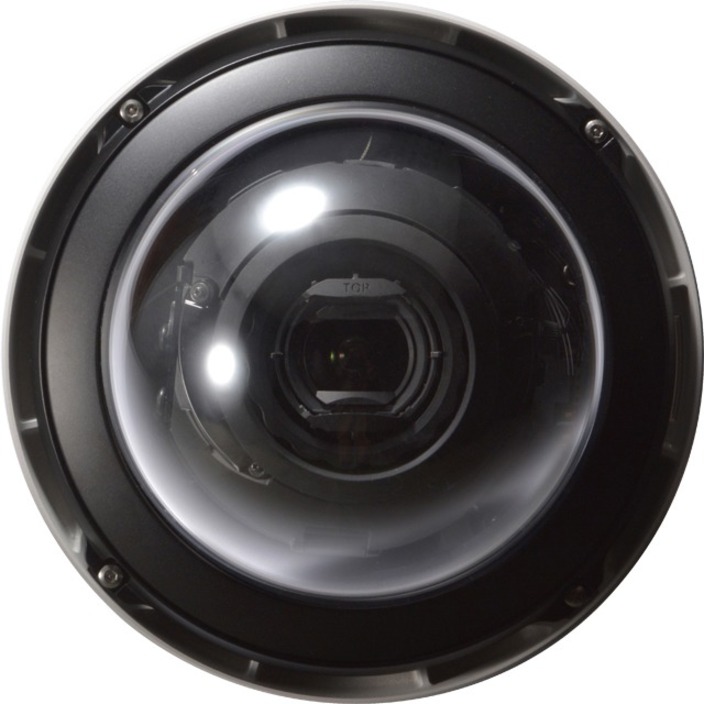

Panasonic WV-SFV781L Security Camera

The Panasonic WV-SFV781L Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Panasonic WV-SFV781L - Security Cameras, Panasonic, i-PRO SmartHD, 12.4 Megapixel 4K Vandal Resistant Network Camera, Dome, 98.43 ft Night Vision, H.264, 4000 x 3000, 6x Optical, MOS, Wall Mount, WV-SFV781L
  • For remote surveillance needs, this network camera is best suited
  • Up to 4000 x 3000 resolution for surveillance in real-time
  • Features MOS sensor that is used to produce smooth and sharp images
  • 25.20 mm maximum focal length for dependable identification distances with better coverage
  • 6x optical zoom for desired image clarity and maximum capturing convenience
  • Up to 98.43 ft of night vision
  • HD recording format for exceptional video quality with maximum productivity
  • Zoom lens type allows you to get a better, wide viewing angle, without compromising the quality of the image
  • Wall mount encourages collaboration, interactivity with maximum productivity
  • Wired connectivity technology delivers exceptional performance to offer maximum usability
Read More
Discontinued Need Assistance?
Add to Quote
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.
Panasonic WV-SFV781L Security Camera Overview
  • 4k optical 6 x zoom lens
  • 12MP high sensitivity sensor for 4k security camera
  • High resolution, more than 2000TV lines
  • Rain wash coating for clear view in any weather condition
  • Smart IR-LED for visibility in any light condition
  • 4K ultra engine
  • Smart DoF (Depth of Field)

Introducing Panasonic's brand new ultra-high-definition WV-SFV781L 4k security camera, which provides the crisp and clearest images ever experienced. It is vandal proof and packed with a multitude of ground breaking features. This outdoor 4K security camera offers extremely high picture quality, with 1/7th the file size of other 4K security cameras thanks to our compression technology. We understand the importance of wide angle viewing through HD cameras, and have ensured that our True 4K security cameras maintain crisp clarity in any area of their view, whether it is the centre or the corners of the image.

Wider viewing area allows for condensed, low cost, efficient security camera systems

The WV-SFV781L 4K security camera also provides 17° to 96° horizontal angular field of view with a 16:9 aspect ratio and 17.0° to 100° horizontal angular of view with a 4:3 aspect ratio. The WV-SFV781L and WV-SPV781L are also weather and impact resistant with IP66-, NEMA4x- and IK10-ratings.

The 1/1.7" sensor located within the security camera, in combination with the Panasonic True 4K F1.6 lens achieves low light performance at just 0.3lx in color, 0.03lx in black and white mode or 0lux through the smart IR-LED function, being highly sensitive compared to competing 4K class surveillance cameras.

Virtual PTZ operation allows the user crop certain areas in the camera view whilst still recording the whole area, so no event is missed in mission critical applications.

The camera's rain wash coating allows for continued high visibility in rainy conditions, ensuring that the water is sheeted from the surface of the camera rather than form droplets which can scatter light and impair visibility.

Panasonic Business Security Solutions

This innovative 4K security camera is ideal for a range of outdoor applications. The environments that it would flourish in are, but not limited to:

Public safety, e.g. City surveillance at intersections, squares, prisons or parking spaces.
Transportation, e.g. at airports, stations or hub terminals
Industrial environments, e.g. Port facilities, plants

Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision Distance:
98.43 ft
Display & Graphics
Image Sensor Type:
MOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
12.4 Megapixel
Video
Video Formats:
H.264
Maximum Video Resolution:
4000 x 3000
Lens
Lens Type:
Zoom
Minimum Focal Length:
4.20 mm
Maximum Focal Length:
25.20 mm
Optical Zoom:
6x
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
Wall Mount
Form Factor:
Dome
Height:
7.4"
Weight (Approximate):
7.05 lb
Miscellaneous
Package Contents:
  • 4K Vandal Resistant Dome Network Camera
  • Important Information
  • Installation Guide
  • CD-ROM
  • Code Label
  • Attachment Plate
  • Base Bracket
  • 5 x Fixing Screws for Attachment Plate (M4 x 8 mm)
  • Template A (for the attachment plate)
  • Template B (for the base bracket)
  • Bit (Hex wrench, screw size 6.35 mm {1/4 inches} T20)
  • Waterproof Tape
  • 4P Alarm Cable
  • 2P power cable
  • LAN Connector Cover
  • MONITOR OUT Conversion Plug
  • Protection Cover
