Panasonic WV-SFV311 Products

Part Number: WV-SFV311
Model:

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Image Sensor Type
MOS
Image Sensor Size
1/3"
White Balance Modes
AWCATW1ATW2
Minimum Illumination
0 lux

Product Description:

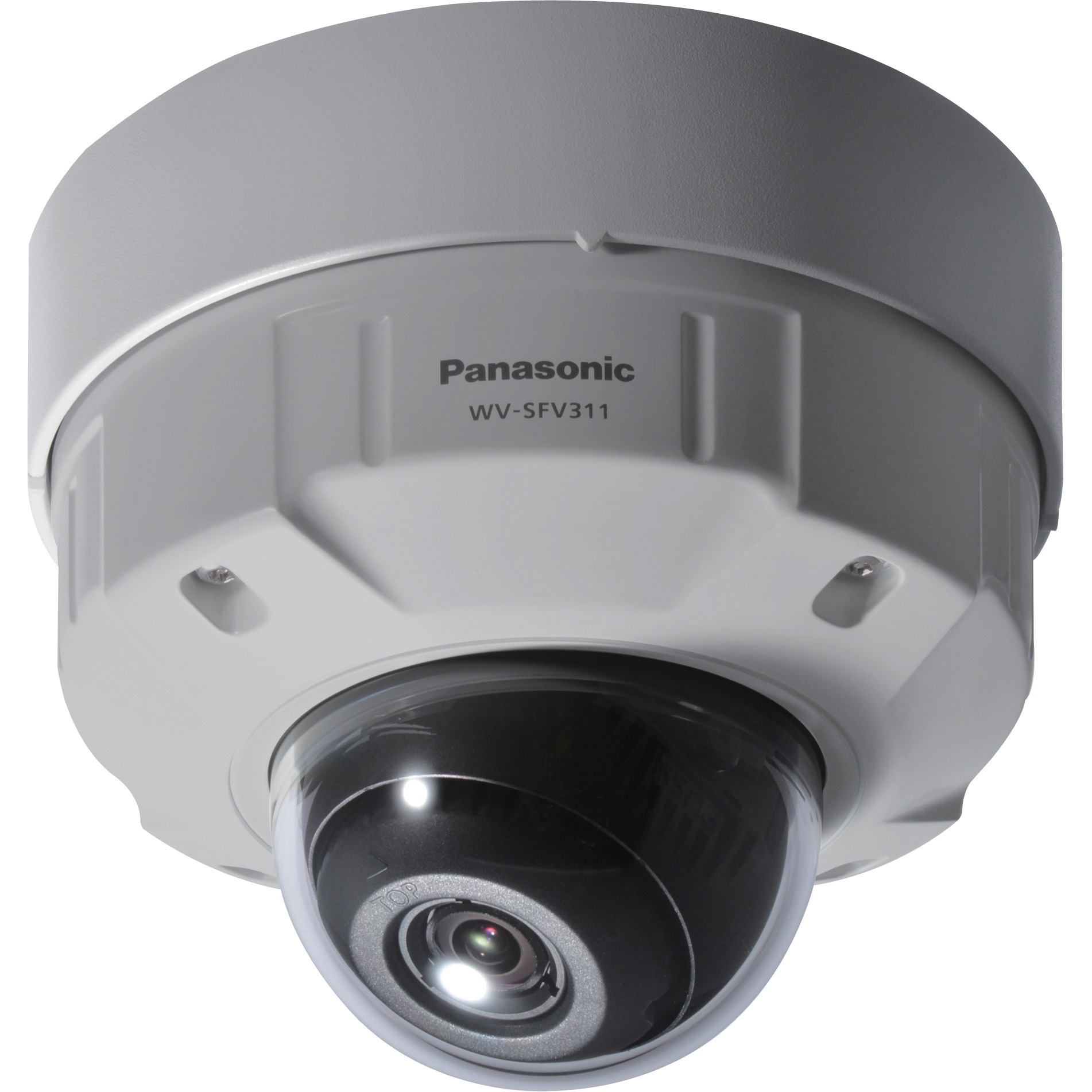

  Panasonic i-PRO SmartHD WV-SFV311 1.3 Megapixel Network Camera - Dome - H.264, MPEG-4 - 1280 x 960 - 3.6x Optical - MOS - Fast Ethernet - Ceiling Mount

Panasonic Parts Accessory Model Overview

Products and parts from Panasonic.
Panasonic WV-SFV311 Products Overview
This outdoor, vandal resistant 3 Series i-PRO camera features a next generation UniPhier® LSI processor, capable of producing high definition resolution at 60 frames per second, enabling the capture of exceptionally clear images of moving objects.

The new platform offers Enhanced Super Dynamic and Adaptive Black Stretch (ABS) technologies, enabling an amazing wide dynamic light range (up to 133db), and delivering outstanding performance even in the most challenging lighting conditions. The SFV310 has the ability to encode up to four independent H.264 streams simultaneously, and demonstrates a super-high sensitivity in low light conditions, generating usable color video at less than .01 lux illumination. The camera also features 3D Noise Reduction (3DNR) and Multi-process Noise Reduction (MNR), ensuring both bright and dark areas are reproduced to deliver best-in-class performance, minimum video noise and accurate color reproduction.
Display & Graphics
Image Sensor Type:
MOS
Image Sensor Size:
1/3"
White Balance Modes:
  • AWC
  • ATW1
  • ATW2
Minimum Illumination:
0 lux
Color Supported:
  • Color
  • Monochrome
Field of View:
15.6° to 99°
Effective Camera Resolution:
1.3 Megapixel
Video
Video Formats:
  • H.264
  • MPEG-4
Maximum Video Resolution:
1280 x 960
Maximum Frame Rate:
60 fps
Video Signal Format:
NTSC
Audio
Audio Formats:
  • ADPCM
  • AAC-LC
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Optical Zoom:
3.6x
Digital Zoom:
4x
Focus Modes:
  • Automatic
  • Manual
Exposure
Shortest Shutter Speed:
1/10000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
  • IPv4
  • IPv6
  • HTTPS
  • TCP/IP
  • UDP/IP
  • HTTP
  • FTP
  • SMTP
  • DNS
  • NTP
  • SNMP
  • DHCPv6
  • RTP
  • MLD
  • ICMP
  • ARP
  • RTSP
  • RTP/RTCP
  • DHCP
  • DDNS
  • UPnP
  • IGMP
Power Description
Maximum Power Consumption:
12 W
Physical Characteristics
Mount Type:
Ceiling Mount
Form Factor:
Dome
Durability:
Vandal Resistant
Color:
Sail White
Height:
5.5"
Diameter:
6.5"
Weight (Approximate):
3.53 lb
Miscellaneous
Features:
  • 3D Noise Reduction
  • SD Card Local Storage
  • Day/Night
  • Face Detection
  • Digital Noise Reduction
  • Motion Detection
  • Built-in HLC
  • Audio Detection
Indoor/Outdoor:
Outdoor
Package Contents:
  • Outdoor Vandal-Resistant Network Camera
  • Plug
System Requirements:
Operating System:
  • Windows 7/8/8.1/Vista
Browser:
  • Internet Explorer 7/8/9/10/11
Certifications & Standards:
  • IK10
  • IP66
  • UL (UL60950-1)
  • C-UL (CAN/CSA C22.2 No.60950-1)
  • CE
  • IEC60950-1
  • FCC (Part15 ClassA)
  • ICES003 ClassA
  • EN55022 ClassB
  • EN55024
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Security Features:
  • ID/PWD
  • Host Authentication
  • HTTPS
Platform Supported:
  • IOS
  • iPhone
  • iPod
  • iPad
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0735858108119, 0885170196513, 4549077157102
UPC: 735858108119, 885170196513
EAN: 0735858108119, 0885170196513, 4549077157102
UNSPSC: 46171610
