Recording Formats:
HD
HD Recording:
Yes
Fixed Focal Length:
1.95 mm
Panasonic Parts Accessory Model Overview
Products and parts from Panasonic.

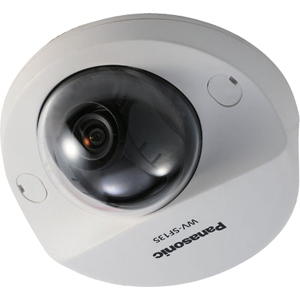

Panasonic WV-SF135 Security Camera Overview
The Panasonic i-PRO SmartHD WV-SF135 is a low profile, HD compact dome network camera that provides full frame transmission of 1280x960 images using a 1.3 megapixel high-sensitivity MOS sensor. Additional features of the WV-SF135 include high sensitivity with day and night (electrical) function, 16x electronic sensitivity enhancement, and Variable Image Quality on Specified Areas (VIQS) - a technology that allows a designated area to retain higher image quality while excluding areas that have decreased image quality to lower the image file size and bit rate. Zoom (2x) is controlled by the browser, with a 2x extra zoom (4x) available under VGA resolution.
Technical Information
Display & Graphics
Image Sensor Type:
MOS
White Balance Modes:
Auto
Minimum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Field of View:
85° to 104°
Video
Video Formats:
- MPEG-4
- MJPEG
Maximum Video Resolution:
1280 x 960
Video Signal Format:
NTSC
Image Formats:
JPEG
Maximum Image Resolution:
1280 x 960
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.95 mm
Lens Included:
Yes
Maximum Aperture:
f/2.2
Digital Zoom:
4x
Focus Modes:
Fixed Focus
Exposure
Shortest Shutter Speed:
1/30 Second
Longest Shutter Speed:
16/30 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- TCP/IP
- HTTP
- HTTPS
- SMTP
- DNS
- NTP
- SNMP
- DHCP
- DDNS
- UPnP
- UDP/IP
- RTP
- FTP
- RTSP
- RTP/RTCP
Remote Management:
Yes
Physical Characteristics
Color:
Sail White
Height:
1.9"
Diameter:
3.9"
Weight (Approximate):
7.04 oz
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
32°F (0°C)
Maximum Operating Temperature:
104°F (40°C)
Miscellaneous
Features:
- Day/Night
- Digital Noise Reduction
- Motion Detection
- Face Detection
- Built-in OSD Function
Indoor/Outdoor:
Indoor
Package Contents:
- i-Pro WV-SF135 Network Camera
- Installation Guide
- Important Safety Instructions
- CD-ROM
- Code Label
- Lens adjuster
- Installation Template Label
System Requirements:
Supported Browser:
- Windows Internet Explorer 9.0 (32 bit)
- Windows Internet Explorer 8.0 (32 bit)
- Windows Internet Explorer 7.0 (32 bit)
- Microsoft Internet Explorer 6.0 SP3
Supported OS:
- Microsoft Windows 7
- Microsoft Windows Vista
- Microsoft Windows XP SP3
Certifications & Standards:
ONVIF
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Item Numbers
GTIN:
0710212152564, 0885170046993, 0885170167230, 4010869240123, 4902704847577, 5025232628148
UPC:
710212152564, 885170046993, 885170167230
EAN:
0710212152564, 0885170046993, 0885170167230, 4010869240123, 4902704847577, 5025232628148
UNSPSC:
46171610
