Full specifications (PDF)
Recording Formats:
HD
HD Recording:
Yes

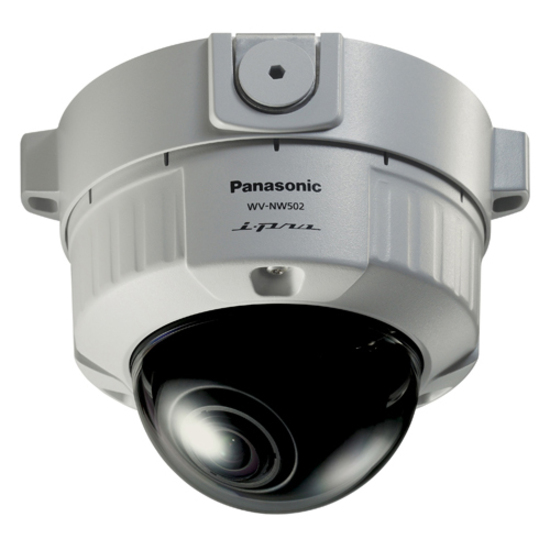

Panasonic WV-NW502S Security Camera
Part Number:
WV-NW502S
Model:
WV-NW502S
Panasonic WV-NW502S Security Camera Model Overview
The WV-NW502S by Panasonic is a 3.0 megapixel vandal-resistant IP camera offers multiple stream formats: H.264, MPEG-4 and JPEG compression. The camera incorporates Panasonic's exclusive MEGA Super Dynamic camera technology with 128x dynamic range, Adaptive Black Stretch technology to make dark areas more visible, and face detection technology to better identify subjects. The WV-NW502S incorporates a progressive scan megapixel CCD that delivers clear images with less motion blur and no tearing even when subjects are moving. Additional performance features on the WV-NW502S include a primary (RGB) color filter for superior color reproduction, Adaptive Digital Noise Reduction to adjust to changing viewing conditions, and Auto Back Focus (ABF) that adjusts the positioning of the CCD sensor to provide accurate focus in both color and black-and-white modes and reduce post-installation intervention.
Panasonic WV-NW502S Security Camera Overview
WV-NW502S 3.0 megapixel vandal-resistant IP camera offers multiple stream formats: H.264, MPEG-4 and JPEG compression. The camera incorporates Panasonic's exclusive MEGA Super Dynamic camera technology with 128x dynamic range, Adaptive Black Stretch technology to make dark areas more visible, and face detection technology to better identify subjects.
Technical Information
Display & Graphics
Image Sensor Type:
CCD
Minimum Illumination:
0 lux
Color Supported:
- Color
- Monochrome
Swivel:
85° to 85°
Field of View:
26.2° to 100°
Video
Maximum Video Resolution:
2048 x 1536
Maximum Frame Rate:
30 fps
Video Signal Format:
NTSC
Lens
Lens Type:
Zoom
Minimum Focal Length:
2.80 mm
Maximum Focal Length:
8 mm
Lens Included:
Yes
Optical Zoom:
2.9x
Digital Zoom:
4x
Network & Communication
Connectivity Technology:
Wired
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Protocols:
- TCP/IP
- UDP
- HTTP
- RTP
- RTSP
- RTCP
- FTP
- SMTP
- DHCP
- DNS
- DDNS
- NTP
- SNMP
Remote Management:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Dome
Durability:
- Vandal Resistant
- Water Resistant
- Dust Resistant
- Impact Resistant
Height:
5.7"
Diameter:
6.5"
Weight (Approximate):
3.97 lb
Software
Operating System Supported:
Windows
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Miscellaneous
Features:
- Multi-view Stream
- Face Detection
- Digital Noise Reduction
- Motion Detection
- Built-in OSD Function
- Auto Image Stabilizer
- SD Card Local Storage
Indoor/Outdoor:
- Indoor
- Outdoor
Package Contents:
- i-Pro WV-NW502S Fixed Dome Network Camera
- CD-ROM
- Installation Guide
- Code Label
- 2P Power Cable
- 4P Alarm Cable
- Camera Attachment
- Mount Bracket
- Base Cover
- 5 x Fixing Screws (M4 x 8 mm)
- Bit for Tamper-proof Screw
- Butyl tape
Additional Information:
- SD/SDHC Memory card slot for manual recording
- Electronic sensitivity enhancement
- Face detection
- Vandal resistant and IP66 rated water and dust resistant
System Requirements:
Operating System:
- Microsoft Windows Vista Business SP1 32 bit
- Microsoft Windows XP Home Edition/Professional SP3
Browser:
- Windows Internet Explorer 7.0 (Microsoft Windows Vista Business SP1 32 bit)
- Microsoft Internet Explorer 6.0 SP3 (Microsoft Windows XP Home Edition/Professional SP3)
Item Numbers
GTIN:
0791871506417
UPC:
791871506417
EAN:
0791871506417
UNSPSC:
46171610
